Rechargeable Lifepo4 38120 38120S 3.2v 10ah battery cells LifePO4 battery for e-bike / motor / car battery
Product Description:
38120S--lifepo4--3.2v--10ah
| NO. | Model | 38120S | |
| 1 | Nominal Capacity: | 10000mAh | |
| 2 | Rated voltage | 3.2V | |
| 3 | Energy density (Wh/kg) | 105 | |
| 4 | Internal Resistance | ≤4mΩ | |
| 5 | Charge (CC-CV) | Charged with constant current to 3.65v and then charged with constant voltage to 0.1-0.2A | |
| 6 | Charge (float) | ≤3.6V | |
| 7 | Max. charging current | 3C(30A) | |
| 8 | Standard. charging voltage | 3.65±0.05V | |
| 9 | Recommended charging current | 0.5C,5A | |
| 10 | Max. continuous discharging current | 3C (30A)-10C(100A) | |
| 11 | Max.pulse discharging current(30seconds) | 15C(150A) | |
| 12 | Recommended discharging current | 1C(10A) | |
| 13 | Max. End-off discharged voltage | 2.0V | |
| 14 | Self discharge rate (monthly) | 2-3% | |
| 15 | Dimensions (mm) | Diameter | 38±1 |
| Height | 132±1 | ||
| 16 | Weight (Approx.) | 330g | |
| 17 | Working temperature | Charging | 0~45℃ |
| Discharging | -20~65℃ | ||
| 18 | Storage | In one month | -20~45℃ |
| temperature | In six months | -20~35℃ | |
Features:
1. Good cell consistency, high Max. charge/discarge pulse current.
2. Low internal resistance, low thermal generated and high safety performance.
3. Good high temperature performance.
4. High capacity, low self-discharge rate and long cycle life.
5. Dimension and type(capacity type and ratio type) can be customized.
Applications:
1. EV: pure electric car, pure electric bus, hybrid electric vehicles, hybrid electric bus, recreational vehicles, chill cars.
2. Storage: solar and wind complementary stored energy streetlights, energy storage systems, household energy storage.
3. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power
supply and other system standby power etc.

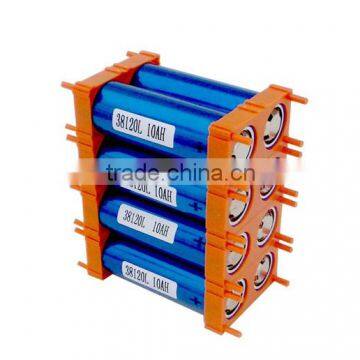

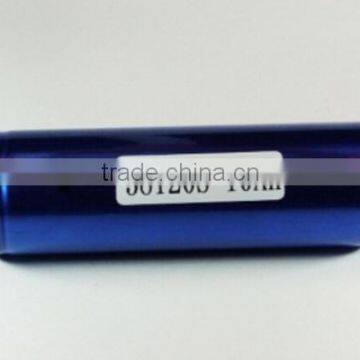

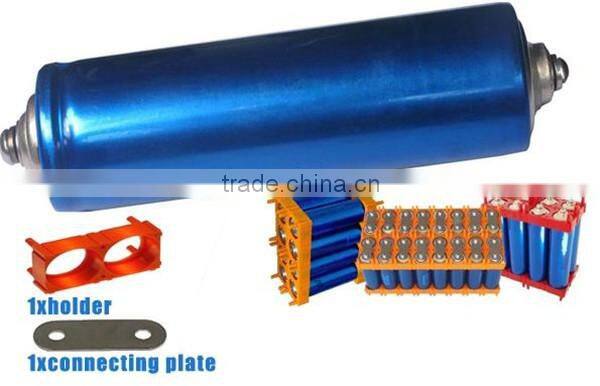

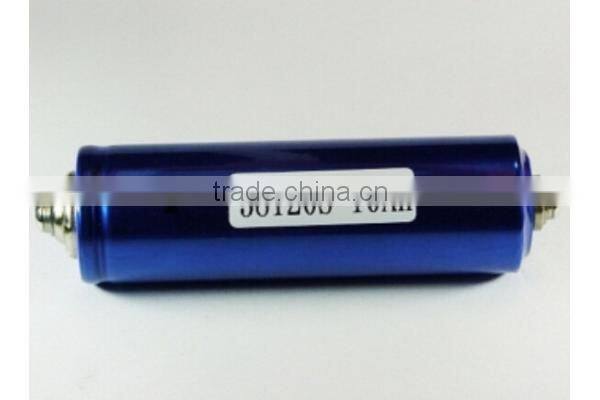

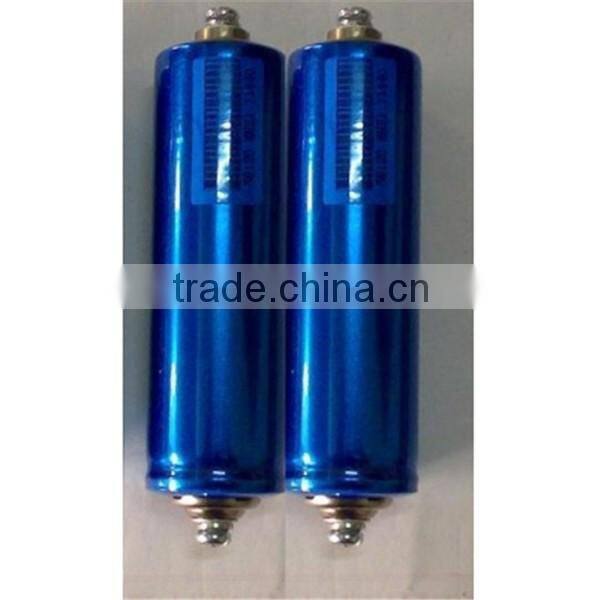

Product Photos:
Company Workshop:
Certificate:
