Lifepo4 38140 Battery Cell Headway Lithium Battery 3.2v 12ah

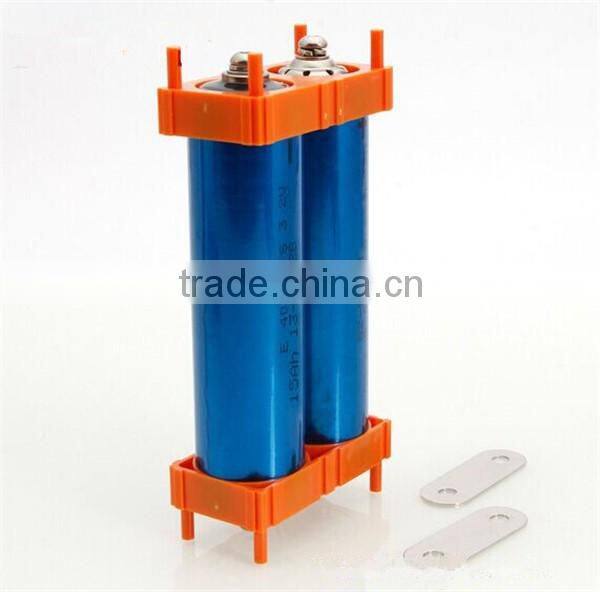

Lifepo4 38140 Battery Cell Headway Lithium Battery 3.2v 12ah photo-1

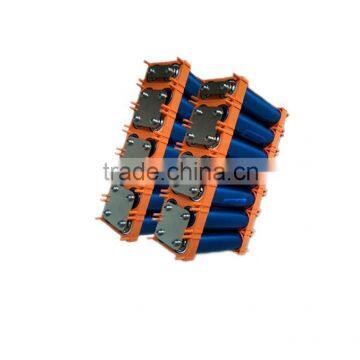

Lifepo4 38140 Battery Cell Headway Lithium Battery 3.2v 12ah photo-2

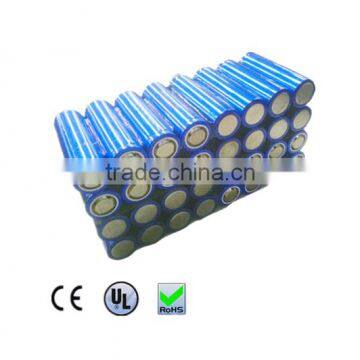

Lifepo4 38140 Battery Cell Headway Lithium Battery 3.2v 12ah photo-3
Lifepo4 38140 Battery Cell Headway Lithium Battery 3.2v 12ah photo-4

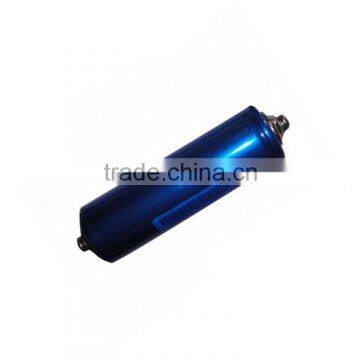

Lifepo4 38140 Battery Cell Headway Lithium Battery 3.2v 12ah photo-5
Lifepo4 38140 Battery Cell Headway Lithium Battery 3.2v 12ah photo-6
US$ 14 - 17 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
3.2v 100ah
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name OEM
Model Number 3.2v 100ah
Type Li-Ion
Nominal Voltage Other, 3.2v, 3.2V
Size Other, 38*142mm
Nominal Capacity 38140s

lifepo4 38140 battery cell headway lithium battery 3.2v 12ah







Product Description:



38140S--lifepo4--3.2v--12ah



ItemsSpecification
Nominal capacity12000mAh (0.5c)
Nominal voltage3.2V
Battery internal resistance≤6mΩ
Maximum charge current5C(60A)
Maximum charge voltage3.65±0.05V
Maximum discharge current10C(120A)
Cut-off discharge voltage2.0V
Maximum dimensionsDiameter38±1mm
Height142±1mm
WeightAbout 400g
Operating temperatureCharge0~45℃
Discharge-20~60℃
Storage temperatureWithin one month-20~45℃
Within 6 months-20~35℃









Features:



1. Good cell consistency, high Max. charge/discarge pulse current.

2. Low internal resistance, low thermal generated and high safety performance.

3. Good high temperature performance.

4. High capacity, low self-discharge rate and long cycle life.

5. Dimension and type(capacity type and ratio type) can be customized.



Applications:



1. EV: pure electric car, pure electric bus, hybrid electric vehicles, hybrid electric bus, recreational vehicles, chill cars.

2. Storage: solar and wind complementary stored energy streetlights, energy storage systems, household energy storage.

3. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power supply and other system standby power etc.



Why choose LifeP04?

1) High power: Higher charge and discharge rate for better performance and efficiency.

2) High energy density

3) Excellent safety: Superior abuse tolerance

4) Extended cycle life: Long battery life in both deep and shallow cycling.

5) No memory effect:

6) Low self-discharge rate: less that 5% per month

7) Wide working temperature range: -20°C--60°C

8) Light weight: lighter 1/3 than the lead-acid batteries

9) Environmental friendly



The advantages of lifepo4 batteries

Widely used in EVs including electric bikes, electric scooters, electric cars / hybrid electric cars,

UPS batteries,

storage batteries for solar power systems,

starter batteries for cars & motorbikes etc.

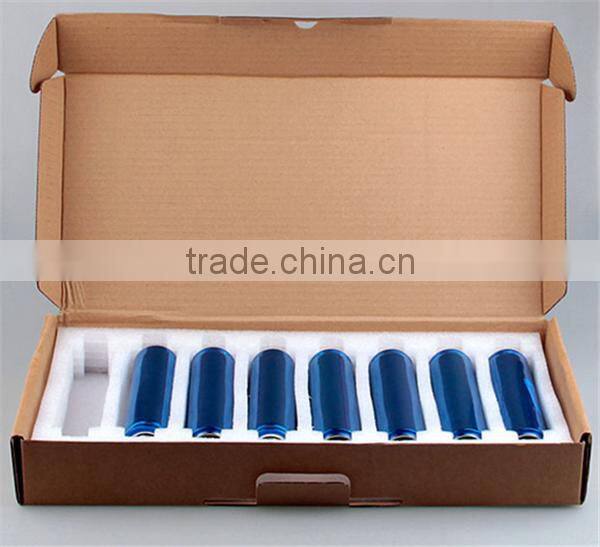

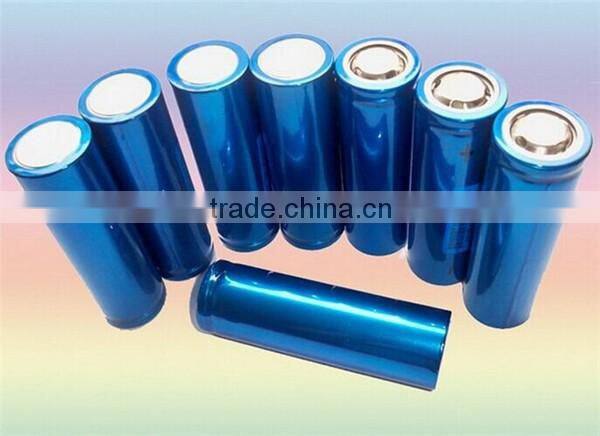

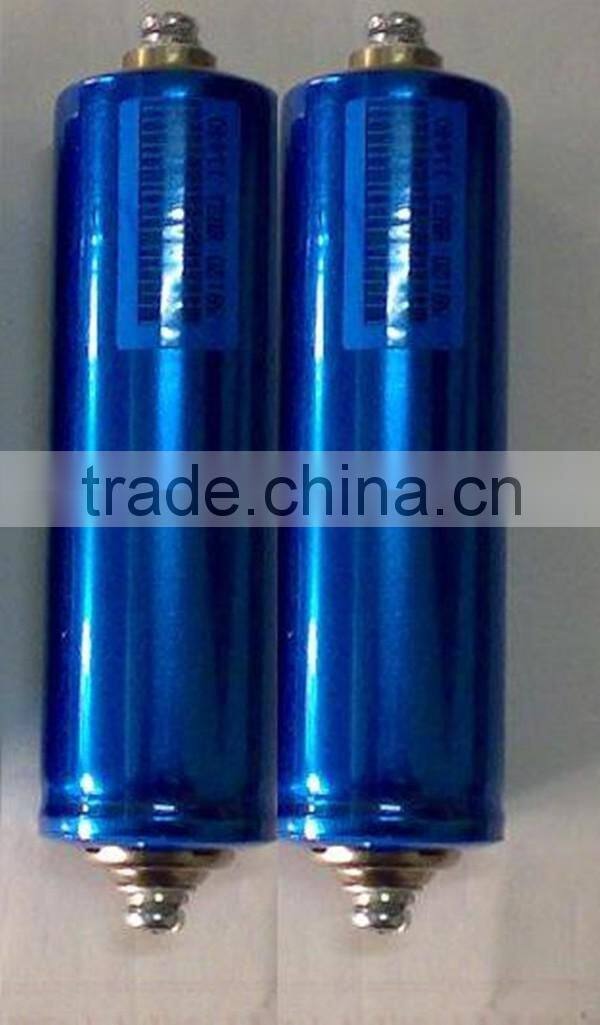

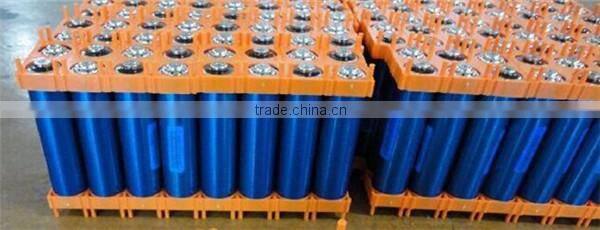

 Product Photos:

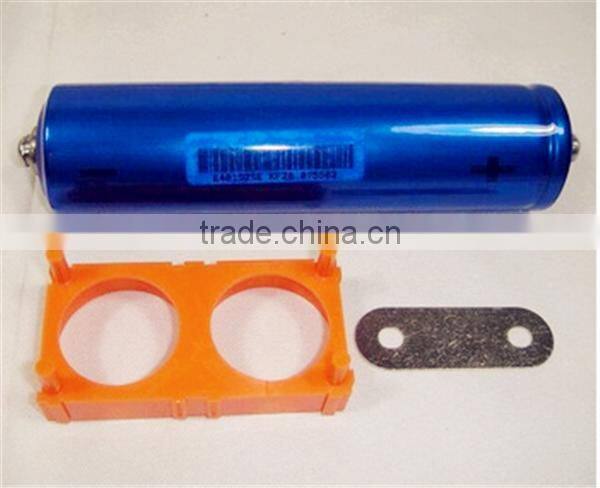

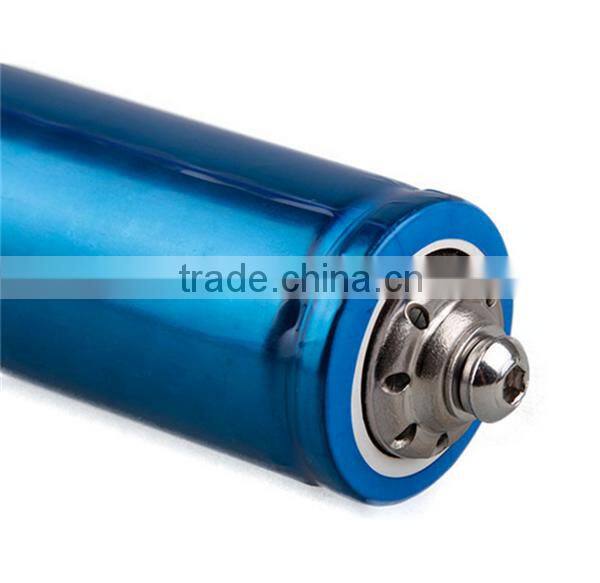

lifepo4 38140 battery cell headway lithium battery 3.2v 12ah



lifepo4 38140 battery cell headway lithium battery 3.2v 12ah



lifepo4 38140 battery cell headway lithium battery 3.2v 12ah



lifepo4 38140 battery cell headway lithium battery 3.2v 12ah



lifepo4 38140 battery cell headway lithium battery 3.2v 12ah



lifepo4 38140 battery cell headway lithium battery 3.2v 12ah



lifepo4 38140 battery cell headway lithium battery 3.2v 12ah



lifepo4 38140 battery cell headway lithium battery 3.2v 12ah



lifepo4 38140 battery cell headway lithium battery 3.2v 12ah



lifepo4 38140 battery cell headway lithium battery 3.2v 12ah









Company Workshop:



 lifepo4 38140 battery cell headway lithium battery 3.2v 12ah



 lifepo4 38140 battery cell headway lithium battery 3.2v 12ah





Certificate:







lifepo4 38140 battery cell headway lithium battery 3.2v 12ah
