Home > Electrical & Electronics > Battery, Storage Battery & Charger > Storage Battery > EV Battery With High Discharge Rate 10C Lifepo4 Battery 38120HP Headway Battery

EV Battery With High Discharge Rate 10C Lifepo4 Battery 38120HP Headway Battery

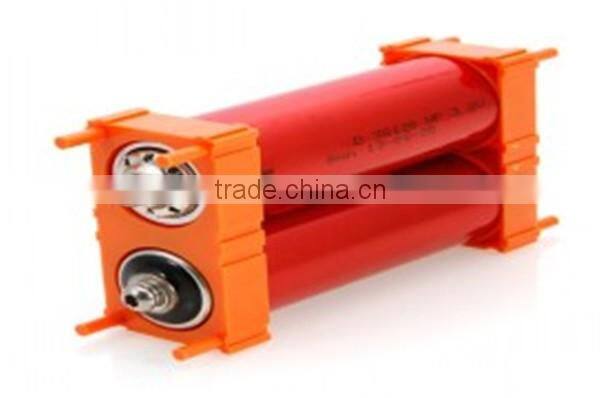

EV Battery With High Discharge Rate 10C Lifepo4 Battery 38120HP Headway Battery photo-1

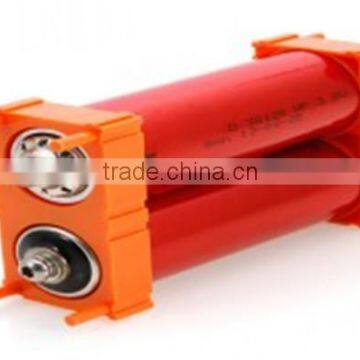

EV Battery With High Discharge Rate 10C Lifepo4 Battery 38120HP Headway Battery photo-2

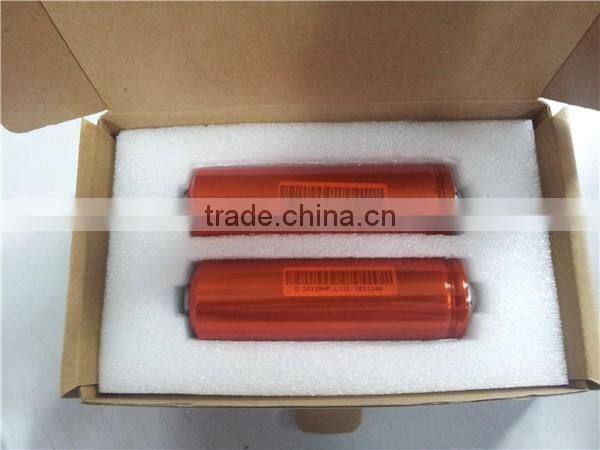

EV Battery With High Discharge Rate 10C Lifepo4 Battery 38120HP Headway Battery photo-3

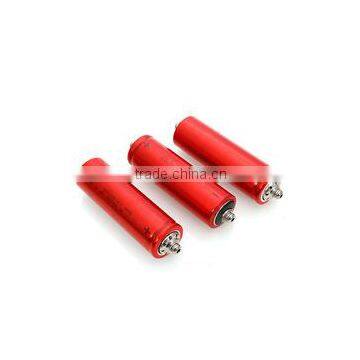

EV Battery With High Discharge Rate 10C Lifepo4 Battery 38120HP Headway Battery photo-4

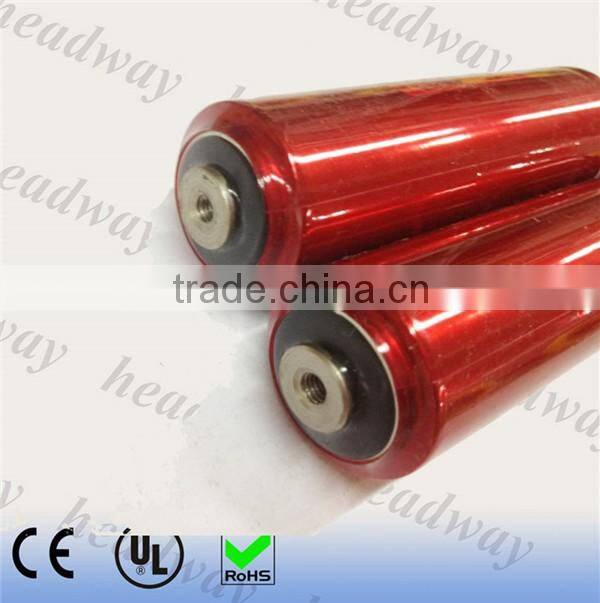

EV Battery With High Discharge Rate 10C Lifepo4 Battery 38120HP Headway Battery photo-5
US$ 13 - 16 MOQ: 12 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Headway
Model Number:
38120HP 10C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Headway
Model Number 38120HP 10C
Type Li-Ion
Nominal Voltage Other, 3.2v
Size Other, 38*122mm
Nominal Capacity 8000mAh, 8000mAh

EV battery with high discharge rate 10C lifepo4 battery 38120HP headway battery







Product Description:



38120HP--lifepo4--3.2v--8ah





Model38120HP
Nominal capacity8000mAh (0.5c)
Nominal voltage3.2V
Battery internal resistance≤5mΩ
Maximum charge current5C(40A)
Maximum charge voltage3.65±0.05V
Maximum continuous discharge current20C(160A)
Maximum discharge current25C(200A)
Cut-off discharge voltage2.0V
Maximum dimensionsDiameter38±1mm
SizeHeight122 ±1mm (132±1mm)
WeightAbout 300g
Operating temperatureCharge0~45℃
Discharge-20~60℃
Storage temperatureIn one month-20~45℃
 In 6 months-20~35℃











Features:



1. Good cell consistency, high Max. charge/discarge pulse current.

2. Low internal resistance, low thermal generated and high safety performance.

3. Good high temperature performance.

4. High capacity, low self-discharge rate and long cycle life.

5. Dimension and type(capacity type and ratio type) can be customized.



Applications:



1. EV: pure electric car, pure electric bus, hybrid electric vehicles, hybrid electric bus, recreational vehicles, chill cars.

2. Storage: solar and wind complementary stored energy streetlights, energy storage systems, household energy storage.

3. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power supply and other system standby power etc.





Why choose LifeP04?



1) High power: Higher charge and discharge rate for better performance and efficiency.

2) High energy density

3) Excellent safety: Superior abuse tolerance

4) Extended cycle life: Long battery life in both deep and shallow cycling.

5) No memory effect:

6) Low self-discharge rate: less that 5% per month

7) Wide working temperature range: -20°C--60°C

8) Light weight: lighter 1/3 than the lead-acid batteries

9) Environmental friendly







The advantages of lifepo4 batteries



Widely used in EVs including electric bikes, electric scooters, electric cars / hybrid electric cars,

UPS batteries,

storage batteries for solar power systems,

starter batteries for cars & motorbikes etc.









 Product Photos:



EV battery with high discharge rate 10C lifepo4 battery 38120HP headway battery



EV battery with high discharge rate 10C lifepo4 battery 38120HP headway battery













EV battery with high discharge rate 10C lifepo4 battery 38120HP headway battery





EV battery with high discharge rate 10C lifepo4 battery 38120HP headway battery

EV battery with high discharge rate 10C lifepo4 battery 38120HP headway battery



EV battery with high discharge rate 10C lifepo4 battery 38120HP headway battery









Company Workshop:



 EV battery with high discharge rate 10C lifepo4 battery 38120HP headway battery



 EV battery with high discharge rate 10C lifepo4 battery 38120HP headway battery





Certificate:







EV battery with high discharge rate 10C lifepo4 battery 38120HP headway battery
