US$ 11.67 - 15.99 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
3.2v 10ah
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name OEM
Model Number 3.2v 10ah
Type Li-Ion
Nominal Voltage Other, 3.2v
Size Other, 38*122mm
Nominal Capacity 38120L, 10000mAh

headway 38120 10ah 3.2v lifepo4 battery cells headway 38120 10ah 3.2v lifepo4 battery cells







Product Description:



38120L--lifepo4--3.2v--10ah





NO.ITEMSpecifications
1Nominal Capacity:10000mAh
2Rated voltage3.2V
3Energy density (Wh/kg)105
4Internal Resistance≤4mΩ
5Charge (CC-CV)Charged with constant current to 3.65v and then charged with constant voltage to 0.1-0.2A
6Charge (float)≤3.6V
7Max. charging current3C(30A)
8Standard. charging voltage3.65±0.05V
9Recommended  charging current0.5C,5A ×2hours
10Max. continuous discharging current3C (30A)-10C(100A)
11Max.pulse discharging current(30seconds) 15C(150A)
12Recommended discharging current1C(10A)
13Max. End-off  discharged voltage2.0V
14Self discharge rate (monthly)2-3%
15Dimensions (mm)Diameter38mm±1mm
Height122mm±1mm
16Weight (Approx.)                        300g
17Working temperatureCharging0~45℃
Discharging-20~65℃
18StorageIn one month-20~45℃

temperatureIn six months-20~35℃















Features:



1. Good cell consistency, high Max. charge/discarge pulse current.

2. Low internal resistance, low thermal generated and high safety performance.

3. Good high temperature performance.

4. High capacity, low self-discharge rate and long cycle life.

5. Dimension and type(capacity type and ratio type) can be customized.



Applications:



1. EV: pure electric car, pure electric bus, hybrid electric vehicles, hybrid electric bus, recreational vehicles, chill cars.

2. Storage: solar and wind complementary stored energy streetlights, energy storage systems, household energy storage.

3. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power supply and other system standby power etc.



Why choose LifeP04?

1) High power: Higher charge and discharge rate for better performance and efficiency.

2) High energy density

3) Excellent safety: Superior abuse tolerance

4) Extended cycle life: Long battery life in both deep and shallow cycling.

5) No memory effect:

6) Low self-discharge rate: less that 5% per month

7) Wide working temperature range: -20°C--60°C

8) Light weight: lighter 1/3 than the lead-acid batteries

9) Environmental friendly



The advantages of lifepo4 batteries

Widely used in EVs including electric bikes, electric scooters, electric cars / hybrid electric cars,

UPS batteries,

storage batteries for solar power systems,

starter batteries for cars & motorbikes etc.

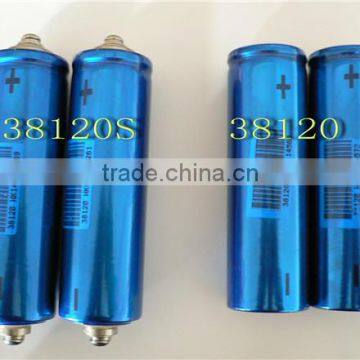

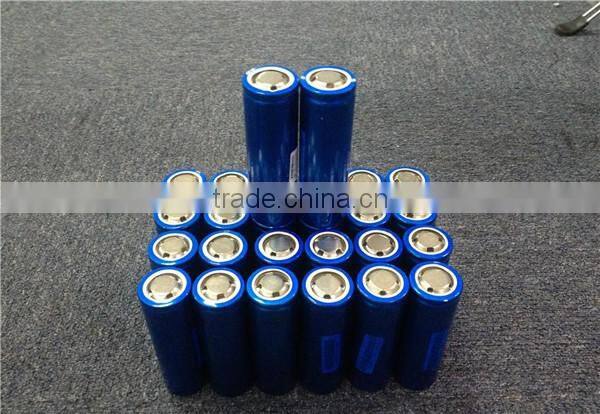

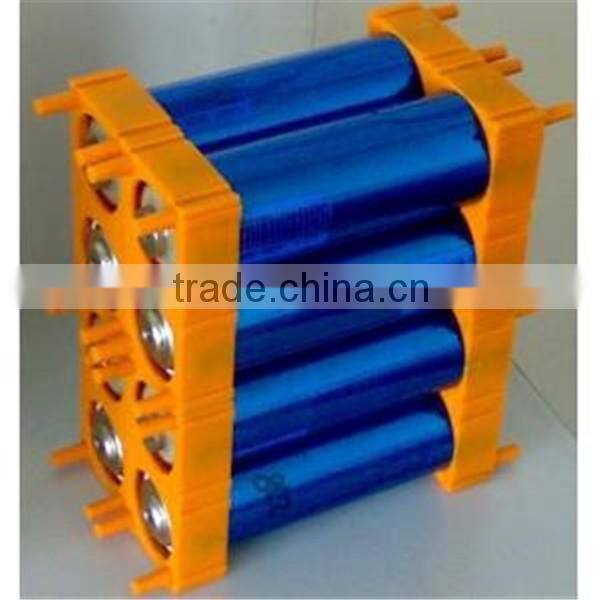

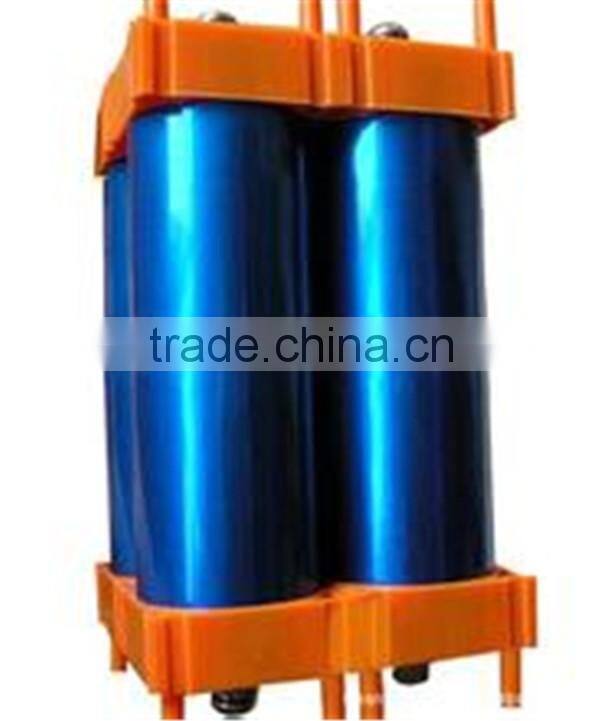

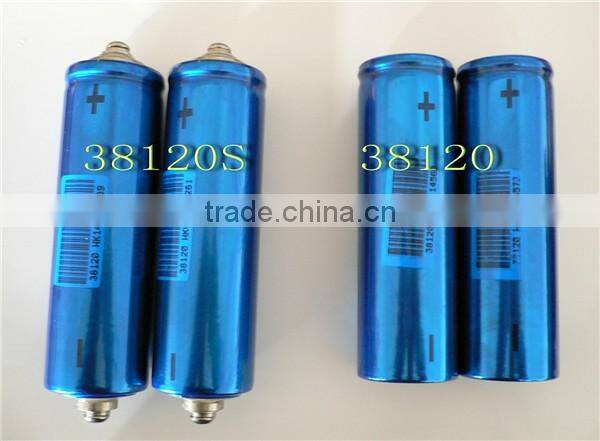

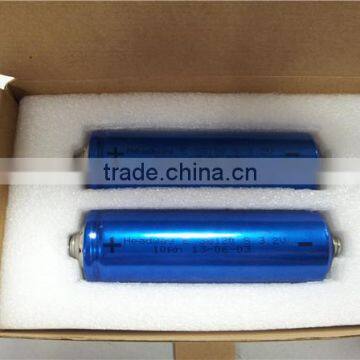

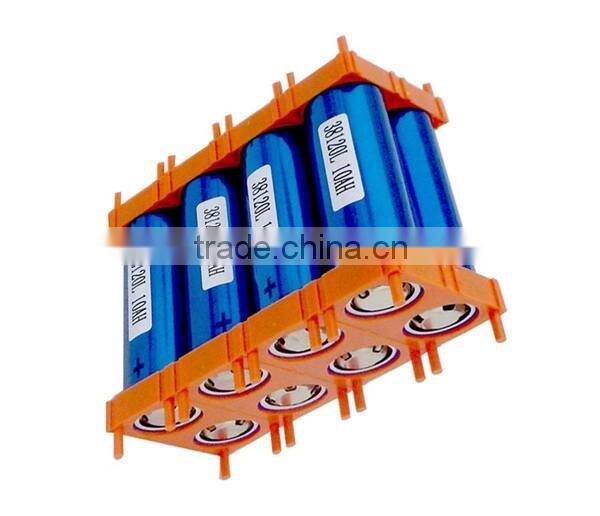

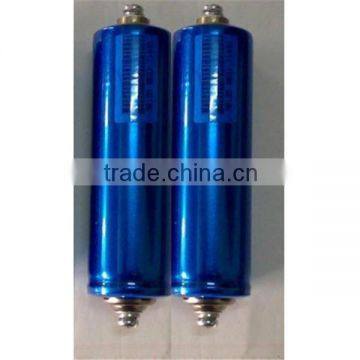

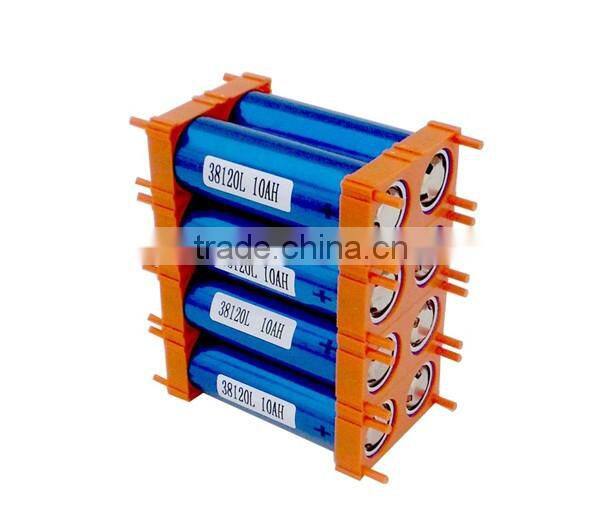

 Product Photos:



headway 38120 10ah 3.2v lifepo4 battery cells headway 38120 10ah 3.2v lifepo4 battery cellsheadway 38120 10ah 3.2v lifepo4 battery cells headway 38120 10ah 3.2v lifepo4 battery cellsheadway 38120 10ah 3.2v lifepo4 battery cells headway 38120 10ah 3.2v lifepo4 battery cells





headway 38120 10ah 3.2v lifepo4 battery cells headway 38120 10ah 3.2v lifepo4 battery cells



headway 38120 10ah 3.2v lifepo4 battery cells headway 38120 10ah 3.2v lifepo4 battery cells









headway 38120 10ah 3.2v lifepo4 battery cells headway 38120 10ah 3.2v lifepo4 battery cells





headway 38120 10ah 3.2v lifepo4 battery cells headway 38120 10ah 3.2v lifepo4 battery cells



headway 38120 10ah 3.2v lifepo4 battery cells headway 38120 10ah 3.2v lifepo4 battery cells









Company Workshop:



 headway 38120 10ah 3.2v lifepo4 battery cells headway 38120 10ah 3.2v lifepo4 battery cells





 headway 38120 10ah 3.2v lifepo4 battery cells headway 38120 10ah 3.2v lifepo4 battery cells



Certificate:







headway 38120 10ah 3.2v lifepo4 battery cells headway 38120 10ah 3.2v lifepo4 battery cells
