Deep cycle lifepo4 battery pack 144V 150Ah LiFePO4 battery pack for electric vehicles
Product Description:
| Model | Size |
Nominal Voltage (v) |
Capacity |
Standard Charge Current |
Fast Charge Current |
Standard Discharge Current |
Max Discharge Current |
Charging Cut-off Voltage |
Discharge Cut-off Voltage |
Weight |
|
Energy Storage Battery |
780*150*200 | 48 | 50Ah | 10A | 50A | 10A | 150A | 54.75V | 30V | 18.2Kg |
| 180*120*180 | 48 | 10Ah | 2A | 10A | 2A | 30A | 54.75V | 30V | 6.5Kg | |
| 744*300*195 | 48 | 100Ah | 20A | 100A | 20A | 200A | 54.75V | 30V | 37Kg | |
| 800*670*150 | 48 | 200Ah | 40A | 200A | 40A | 400A | 54.75V | 30V | 126Kg | |
| 1040*500*450 | 48 | 500Ah | 100A | 500A | 100A | 1000A | 54.75V | 30V | 315Kg | |
|
Electric Car |
144 | 180Ah | 36A | 180A | 36A | 72A | 175.2V | 96V | ||
| 144 | 150Ah | |||||||||
| 72 | 100Ah | |||||||||
| 288 | 60Ah |
Rechargeable LiFePO4 battery 144V 150Ah for electric cars specification
Model |
144V 150Ah |
Dimension |
customized (thickness*width*length) |
Voltage |
144V |
Capacity |
150Ah |
Impedance |
<15m ohm |
Discharge cut-off voltage |
96V |
Maximum Charge voltage |
175.2V |
Standard charge current |
0.5C |
Max working current |
2C |
Charging and charger |
CC/CV with professional charger |
Weight |
<20 kg |
Working temperature |
Charge:0-60 degree |
Discharge:-20-55 degree | |
Storage temperature |
minus 20 - 55 degree |
Normal temperature capacity |
150Ah |
Cycle life |
1500 cycles with DOD 100% to 80% capacity under normal temperature 2000 times cycle life |
Features:
1. Good cell consistency, high Max. charge/discarge pulse current.
2. Low internal resistance, low thermal generated and high safety performance.
3. Good high temperature performance.
4. High capacity, low self-discharge rate and long cycle life.
5. Dimension and type(capacity type and ratio type) can be customized.
Applications:
1. EV: pure electric car, pure electric bus, hybrid electric vehicles, hybrid electric bus, recreational vehicles, chill cars.
2. Storage: solar and wind complementary stored energy streetlights, energy storage systems, household energy storage.
3. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power supply and other system standby power etc.
Why choose LifeP04?
1) High power: Higher charge and discharge rate for better performance and efficiency.
2) High energy density
3) Excellent safety: Superior abuse tolerance
4) Extended cycle life: Long battery life in both deep and shallow cycling.
5) No memory effect:
6) Low self-discharge rate: less that 5% per month
7) Wide working temperature range: -20°C--60°C
8) Light weight: lighter 1/3 than the lead-acid batteries
9) Environmental friendly
The advantages of lifepo4 batteries
Widely used in EVs including electric bikes, electric scooters, electric cars / hybrid electric cars,
UPS batteries,
storage batteries for solar power systems,
starter batteries for cars & motorbikes etc.

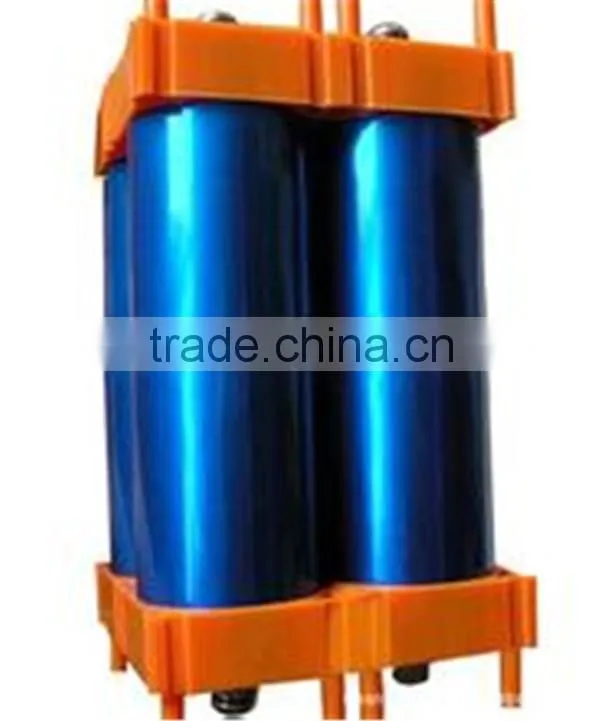

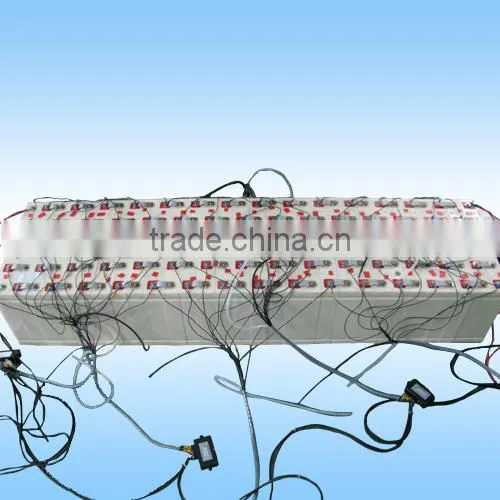

Product Photos:
