High Power Li-Polymer Battery 15C 12000mAh 16000mAh 20C 22000mAh Battery cell

FOB Price

USD $1 - $50 / Piece

10 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Shenzhen Port
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Use:	Other, Vehicles & Remote Control Toys	Place of Origin:	Guangdong, China	Brand Name:	OEM
Model Number:	15C 12000MAH

Product Description

High Power Li-Polymer Battery 15C 12000mAh 16000mAh 20C 22000mAh Battery cell

We produce high ratio of lithium polymer battery has the super high rate discharge, the platform of discharge is high, good cycle performance,with high security characteristics, it is the preferred battery for RC model field.

Polymer Lithium-ion Batteries

Overview
Historically, lead-acid, nickel-cadmium (Ni-Cd), and nickel-metal hydride (Ni-MH) batteries have been the conventional choice for small-sized rechargeable batteries. In line with the recent trends toward mobile and cordless electronic equipment, rechargeable batteries are required to provide higher energy density to meet the needs of ever smaller and lighter devices. Moreover, the attention being focused on protecting the environment has resulted in demand for products that are environmentally friendly.

Features
1. High Energy Density
The weight of a lithium ion battery is approximately one half compared to a nickel-cadmium or nickel-metal hydride battery of similar capacity. Moreover, the volume of the lithium ion battery is 40 to 50% smaller than that of a nickel-cadmium and 20 to 30% smaller than that of a nickel-metal hydride battery.
2. High Voltage
A single lithium ion cell has a voltage of 3.7V (mean value), which is equal to either three nickel-cadmium or nickel-metal hydride cells connected in series.
3.Good safety performance
As the aluminum bluster outer package is different from the meta shell of liquid lithium ion battery, and once safety problems arise, there is no explosion but only expansion.
4. Pollution-free
The lithium ion battery does not contain any polluting substances such as cadmium, lead, mercury, etc.
5. Non-metal Lithium
The lithium ion battery does not employ any lithium metal. It is not governed by aircraft transportation rules relating to carrying lithium batteries in passenger airplanes.
6. Long Cycle Life
Under normal conditions, the lithium ion battery has a life of more than 500 charge/discharge cycles.
7. No Memory Effect
The lithium ion battery is free from the so-called memory effect, a phenomenon seen in nickel-cadmium in which the apparent battery capacity decreases when shallow charge and discharge cycles are repeated.
8. Fast Charge Capacity
The lithium ion battery can be fully charged in 1 to 2 hours, using a constant-current / constant-voltage (CC/CV) type dedicated charger with a rated voltage of 4.2V per cell.

Applications
The rechargeable lithium ion battery shows great promise as a battery to meet such requirement. This new battery technology has excellent features, such as: high energy density, high voltage, good storage and cycle life characteristics. These batteries are widely used for 3C applications such as: Personal Computers, Cellular Phones, and for personal cordless electronic applications i.e. Portable CD Players, PDA etc.

Product Specification:

Reacher Tech High Power Li-Polymer Battery Type
(For R/C models)
Model NO	Nominal	Voltage	Dimension			Approx	Max Discharge Current
	Capacity	(V)	Dimension			Weight	Max Discharge Current
	(mAh)		Thickness	Width	Length	(g)	Continuous	Burst	Cut-off
			±0.2	±0.	±1.		Discharge	Discharge	Voltage
			mm	5mm	0mm		Current	Current
RT6036105P	2300	3.7	6	36	105	54	8C	20C	2.75V
RT7243128P	3850	3.7	7.2	43	128	90	8C	20C	2.75V
RT9574135P	10000	3.7	9.5	74	135	230	8C	20C	2.75V

RT401218P	30	3.7	4	12	18	1.1	12C	25C	2.75V
RT451417P	50	3.7	5	14	17	1.6	12C	25C	2.75V
RT501218P	50	3.7	5	12	18	1.6	12C	25C	2.75V
RT501417P	60	3.7	5	14	17	1.8	12C	25C	2.75V
RT601417P	70	3.7	6	14	17	2	12C	25C	2.75V
RT651417P	85	3.7	6.5	14	17	2.4	12C	25C	2.75V
RT601717P	85	3.7	6	17	17	2.4	12C	25C	2.75V
RT701717P	100	3.7	7	17	17	2.8	12C	25C	2.75V
RT431528P	100	3.7	4.3	15	28	2.8	12C	25C	2.75V
RT551522P	100	3.7	6	15	22	2.8	12C	25C	2.75V
RT501721P	110	3.7	5	17	21	3	12C	25C	2.75V
RT551230P	130	3.7	5.5	12	30	3.5	12C	25C	2.75V
RT382030P	135	3.7	3.8	20	30	3.5	12C	25C	2.75V
RT601721P	150	3.7	6	17	21	3.6	12C	25C	2.75V
RT502025P	150	3.7	5	20	25	4.5	12C	25C	2.75V
RT452030P	180	3.7	4.5	20	30	6.8	12C	25C	2.75V
RT532030P	200	3.7	5.3	20	30	7	12C	25C	2.75V
RT652025P	220	3.7	7	20	25	7	12C	25C	2.75V
RT552036P	280	3.7	5.5	20	36	8	12C	25C	2.75V
RT702035P	350	3.7	6.5	20	36	8.7	12C	25C	2.75V
RT652240P	400	3.7	6.5	22	40	10	12C	25C	2.75V
RTW383048P	450	3.7	3.8	30	48	13	12C	25C	2.75V
RT752535P	450	3.7	7.5	25	35	13	12C	25C	2.75V
RT902530P	500	3.7	9	25	30	14	12C	25C	2.75V
RT553046P	600	3.7	5.5	30	46	16	12C	25C	2.75V
RTW403362P	620	3.7	4	33	62	17	12C	25C	2.75V
RT683048P	800	3.7	6.8	30	48	19	12C	25C	2.75V
RTW683048P	800	3.7	6.8	30	48	21	12C	25C	2.75V
RT403090P	1000	3.7	4	30	90	25	12C	25C	2.75
RT823048P	1000	3.7	8.2	30	48	25	12C	25C	2.75V
RT533562P	1000	3.7	5.3	35	62	25	12C	25C	2.75V
RT743255P	1100	3.7	7.4	32	55	28	12C	25C	2.75V
RTW953048P	1100	3.7	9.9	30	48	29.5	12C	25C	2.75V
RT533090P	1300	3.7	5.3	30	90	30.5	12C	25C	2.75V
RT683562P	1300	3.7	6.8	35	62	30.5	12C	25C	2.75V
RT5517170P	1300	3.7	5.5	17	170	30.5	12C	25C	2.75V
RT6220120P	1300	3.7	5.5	20	120	30.5	12C	25C	2.75V
RT803562P	1500	3.7	8	35	62	35	12C	25C	2.75V

RT533048HP	600	3.7	5.3	30	48	16	15C	30C	2.75V
RT602562HP	800	3.7	6	25	62	20	15C	30C	2.75V
RT723048HP	850	3.7	7.2	30	48	20.5	15C	30C	2.75V
RTW483562HP	850	3.7	4.8	35	62	20.5	15C	30C	2.75V
RT743048HP	900	3.7	7.4	30	48	22	15C	30C	2.75V
RT563562HP	1000	3.7	5.6	35	62	26	15C	30C	2.75V
RT503090HP	1200	3.7	5	30	90	29	15C	30C	2.75V
RT6020120HP	1200	3.7	6	20	120	29	15C	30C	2.75V
RT703562HP	1300	3.7	7	35	62	31.3	15C	30C	2.75V
RT554269HP	1400	3.7	5.5	42	69	33	15C	30C	2.75V
RT643480HP	1500	3.7	6	34	80	35	15C	30C	2.75V
RT763080HP	1500	3.7	7.6	30	80	36	15C	30C	2.75V
RT663090HP	1600	3.7	6.6	30	90	38	15C	30C	2.75V
RT754258HP	1600	3.7	7.5	42	58	38	15C	30C	2.75V
RT703480HP	1700	3.7	7	34	80	39	15C	30C	2.75V
RT603496HP	1800	3.7	6	34	96	42	15C	30C	2.75V
RT653296HP	1800	3.7	6.5	32	96	42	15C	30C	2.75V
RT853080HP	1800	3.7	8.5	30	80	43	15C	30C	2.75V
RT903467HP	1800	3.7	9	34	67	43	15C	30C	2.75V
RT723090HP	1900	3.7	7.2	30	90	44	15C	30C	2.75V
RT683496HP	2000	3.7	6.8	34	96	46	15C	30C	2.75V
RT903480HP	2200	3.7	9	34	80	50	15C	30C	2.75V
RT723496HP	2200	3.7	7.2	34	96	51	15C	30C	2.75V
RT724285HP	2400	3.7	7.2	42	85	63	15C	30C	2.75V
RT5061100HP	3000	3.7	5	61	100	74	15C	30C	2.75V
RT5048135HP	3100	3.7	5	48	135	82	15C	30C	2.75V
RT745690HP	3550	3.7	7.4	56	90	83	15C	30C	2.75V
RT8243150HP	4800	3.7	8.2	43	150	124	15C	30C	2.75V
RT8543150HP	5000	3.7	8.5	43	150	125	15C	30C	2.75V
RT1060165P	10000	3.7	10	60	165	230	15C	30C	2.75V
RT8085165P	12000	3.7	80	85	165	276	15C	30C	2.75V
RT1085165P	16000	3.7	8	85	165	368	15C	30C	2.75V
RT1090190P	22000	3.7	10	90	190	506	20C	40C	2.75V

RT552036SP	250	3.7	5.5	20	36	7.5	25C	50C	2.75V
RT383048SP	360	3.7	3.8	30	48	10	25C	50C	2.75V
RT453048SP	450	3.7	4.5	30	48	12	25C	50C	2.75V
RT603048SP	600	3.7	6	30	48	15	25C	50C	2.75V
RT783048SP	850	3.7	7.8	30	48	25	25C	50C	2.75V
RT6043128SP	2800	3.7	6	43	128	72	25C	50C	2.75V
RT6843128SP	3200	3.7	6.8	43	128	84	25C	50C	2.75V
RT7645100SP	3000	3.7	7.6	45	100	78	25C	30C	2.75V
RT7642125SP	3200	3.7	7.6	42	125	80	25C	50C	2.75V
RT7043128SP	3400	3.7	7	43	128	90	25C	30C	2.75V
RT7643128SP	3600	3.7	7.6	43	128	90	25C	50C	2.75V
RT8243128SP	4000	3.7	8.2	43	128	103	25C	50C	2.75V
RT8043150SP	4500	3.7	8	43	150	115	25C	50C	2.75V
RT9545135SP	5000	3.7	9.5	45	135	125	25C	50C	2.75V

RT743255SP	1000	3.7	7.4	32	55	28	30C	60C	2.75V
RT553480SP	1200	3.7	5.5	34	80	31	30C	60C	2.75V
RT753562SP	1300	3.7	7.5	35	62	33	30C	60C	2.75V
RT683480SP	1500	3.7	6.8	34	80	40	30C	60C	2.75V
RT783480SP	1700	3.7	7.8	34	80	45	30C	60C	2.75V
RT803480SP	1800	3.7	8	34	80	48	30C	60C	2.75V
RT683496SP	1800	3.7	6.8	34	96	48	30C	60C	2.75V
RT703592SP	1900	3.7	7	35	92	50	30C	60C	2.75V
RT783296SP	2000	3.7	7.8	32	96	51	30C	60C	2.75V
RT723496SP	2000	3.7	7.2	34	96	51	30C	60C	2.75V
RT753496SP	2100	3.7	7.5	34	96	53	30C	60C	2.75V
RT783496SP	2200	3.7	7.8	34	96	55	30C	60C	2.75V
RT7245135SP	3600	3.7	7.2	45	135	91	30C	60C	2.75V
RT8245135SP	4000	3.7	8.2	45	135	100	30C	60C	2.75V
RT8545180SP	6000	3.7	8.5	45	180	160	30C	60C	2.75V

RT453562XP	740	3.7	4.5	35	62	19	35C	70C	2.75V
RT603562XP	1000	3.7	6	35	62	28	35C	70C	2.75V
RT4843128XP	2000	3.7	4.8	43	128	51	35C	70C	2.75V
RT7834106XP	2200	3.7	7.8	34	106	56	35C	70C	2.75V
RT5043128XP	2300	3.7	5	43	128	60	35C	70C	2.75V
RT5542125XP	2500	3.7	5.5	42	125	64	35C	70C	2.75V
RT5543128XP	2500	3.7	5.5	43	128	65	35C	70C	2.75V
RT6545135XP	3200	3.7	6.5	45	135	81	35C	70C	2.75V
RT7543150XP	4000	3.7	7.5	43	150	102	35C	70C	2.75V

If your qtys are big, any dimension upon can be make ASAP. If the qty not big or need sample test,maybe several items didn't with stock, please checking for the details.

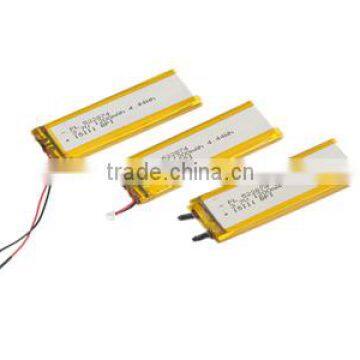

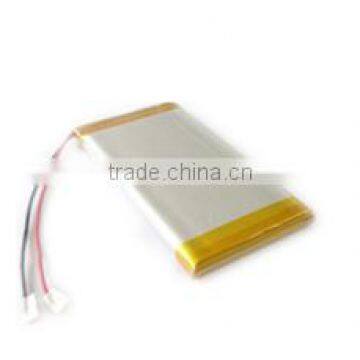

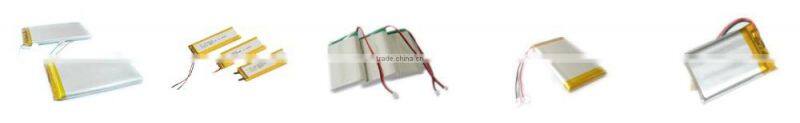

1. Our lipo battery cells

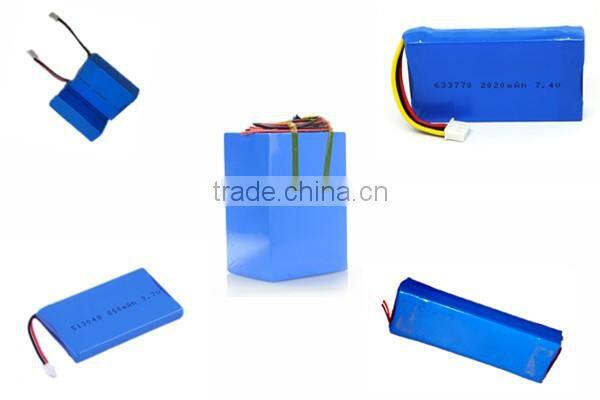

2. After make the battery packs as your requirement.

3. Various kinds of application

Note:

Do not bump, disassemble, short circuit and put the battery in fire.
Stop using when it expends or the temperature is over 70 ° C.
Keep away from kids that they can not get it.
Vehicle *** may vary, we do not GUARANTY for any specific model, make sure it fit for use before your purchase.

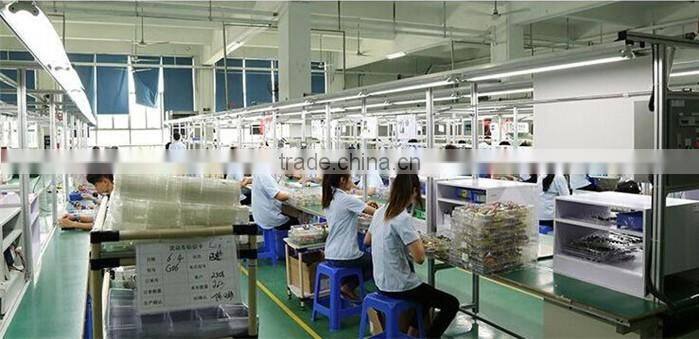

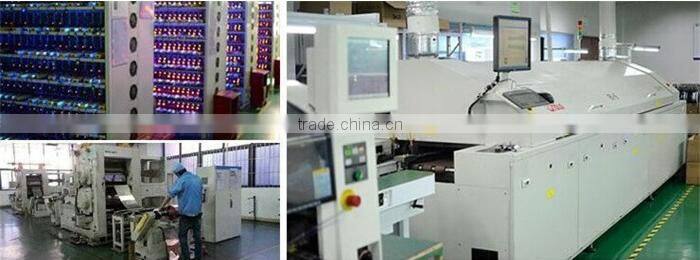

Company Workshop:

Packing:

Certificate:
