Specifications
1. Standard: JIS G3192 OR GB/T11263-20052. Grade: Q235/SS400/S235JR
3. Length:6m-12m
4. Packing:standard export packaging
PRIME HOT ROLLED MILD STEEL H BEAM
Description of H beam steel
1.Product Name: H Beam
2.Size:100*68-700*150mm
3.Length:6m 9m 12m
4.ISO9001 certification
5.Length : 6m , 9m,12m
Features:
1) Material: Q235, Q345, SS400, or the euqivalent...
2) Standard: GB, ASTM, JIS, EN, DIN
3) Size: 5# --- 20# .
4) Length: As requested
5) Other dimensions or shapes are available
6) ISO9001 certificate.
Packing:
Standard export packing.
Common Size:
| specifications and models of GB H beam/JIS H beam | |||||
| size |
Theoretical weight(kg/m) |
size |
Theoretical weight(kg/m) |
||
| JIS | GB | JIS | GB | ||
| 100*100*6*8 | 16.9 | 17.2 | 394*398*11*18 | 147 | 147 |
| 125*125*6.5*9 | 23.6 | 23.8 | 394*405*18*18 | 169 | |
| 148*100*6*9 | 20.7 | 21.4 | 396*199*7*11 | 56.1 | 56.7 |
| 150*75*5*7 | 14 | 14.3 | 400*150*8*13 | 55.2 | 55.8 |
| 150*150*7*10 | 31.1 | 31.9 | 400*200*8*13 | 65.4 | 66 |
| 175*90*5*8 | 18 | 18.2 | 400*400*13*21 | 172 | 172 |
| 175*175*7.5*11 | 40.4 | 40.3 | 400*408*21*21 | 197 | |
| 194*150*6*9 | 29.9 | 31.2 | 414*202*10*20 | 93.9 | 94.5 |
| 198*99*4.5*7 | 17.8 | 18.5 | 414*405*18*28 | 232 | 233 |
| 200*100*5.5*8 | 20.9 | 21.7 | 428*407*20*35 | 283 | 284 |
| 200*200*8*12 | 49.9 | 50.5 | 440*300*11*18 | 121 | 124 |
| 200*204*12*12 | 56.2 | 56.7 | 446*199*8*12 | 65.1 | 66.7 |
| 244*175*7*11 | 43.6 | 44.1 | 450*200*9*14 | 74.9 | 76.5 |
| 248*124*5*8 | 25.1 | 25.8 | 470*202*11*24 | 115.2 | |
| 250*125*6*9 | 29 | 29.7 | 482*300*11*15 | 111 | 115 |
| 250*250*9*14 | 71.8 | 72.4 | 488*300*11*18 | 125 | 129 |
| 294*200*8*12 | 55.8 | 57.3 | 496*199*9*14 | 77.9 | 79.5 |
| 294*302*12*12 | 83.4 | 85 | 500*200*10*16 | 88.2 | 89.6 |
| 298*149*5.5*8 | 32 | 32.6 | 506*201*11*19 | 102 | 103 |
| 298*201*9*14 | 64.4 | 65.4 | 510*206*16*21 | 129 | |
| 300*150*6.5*9 | 36.7 | 37.3 | 512*202*12*22 | 114 | |
| 300*300*10*15 | 93 | 94.5 | 582*300*12*17 | 133 | 137 |
| 300*305*15*15 | 105 | 106 | 588*300*12*20 | 147 | 151 |
| 338*351*13*13 | 106 | 594*302*14*23 | 170 | 175 | |
| 340*250*9*14 | 78.1 | 79.7 | 596*199*10*15 | 92.5 | 95.1 |
| 344*348*10*16 | 113 | 115 | 600*200*11*17 | 103 | 106 |
| 344*354*16*16 | 131 | 600*304*16*26 | 194 | 198 | |
| 346*174*6*9 | 41.2 | 41.8 | 606*201*12*20 | 118 | 120 |
| 350*175*7*11 | 49.4 | 50 | 692*300*13*20 | 163 | 166 |
| 350*350*12*19 | 135 | 137 | 700*300*13*24 | 182 | 185 |
| 350*357*19*19 | 156 | 708*304*15*28 | 216 | ||
| 388*402*15*15 | 140 | 141 | 792*300*14*22 | 188 | 191 |
| 390*300*10*16 | 105 | 107 | 800*300*14*26 | 207 | 210 |
| 900*300*16*28 | 240 | 243 |
|||
Company Introduction
Shijiazhuang Changhang Corporation, as one of the integrated iron and steel enterprise,
it’s a collection of strip slitting, hot-rolled flat steel production, hot dip galvanized processing,
international trade, logistics and distribution.
Main products include, flat bar, serrated flat steel, I type steel, scaffolding welded steel pipe,
steel strip, wire rod, angles, channels, and H beam, with its products beingexported to Korea,
Japan, southeast Asia, north Africa, Australia, the Americas and Europe. The annual sales has
been over 1.5 billion RMB. It won many customers' and similar companies' recognition and
praise by its good reputation and reliable quality.
We will always adhere to the principle of “Iron quality, Steel reputation, service supreme,
mutual benefit”, the development of create resplendence with you. Changhang will create
brilliant future together with you.

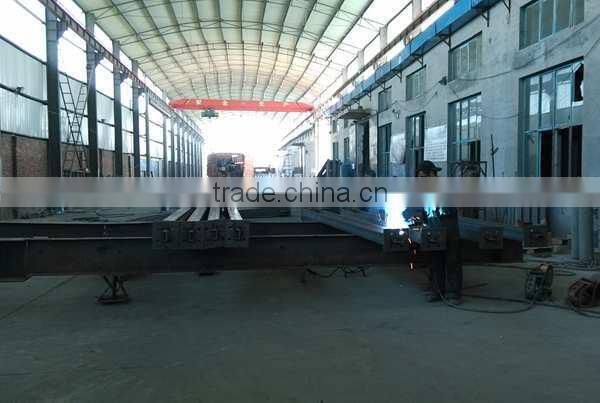

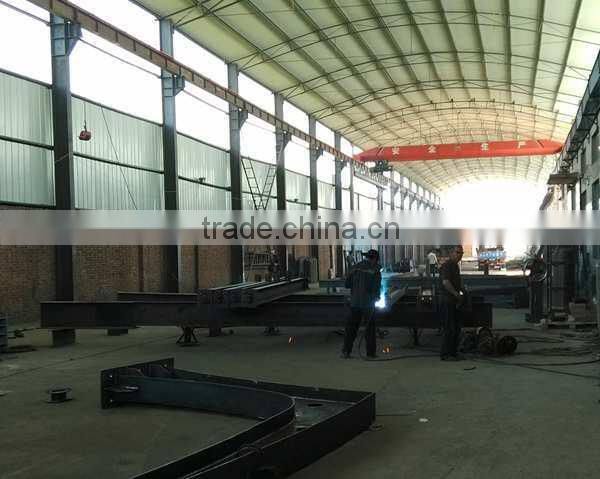

Production line of our factory:
Application

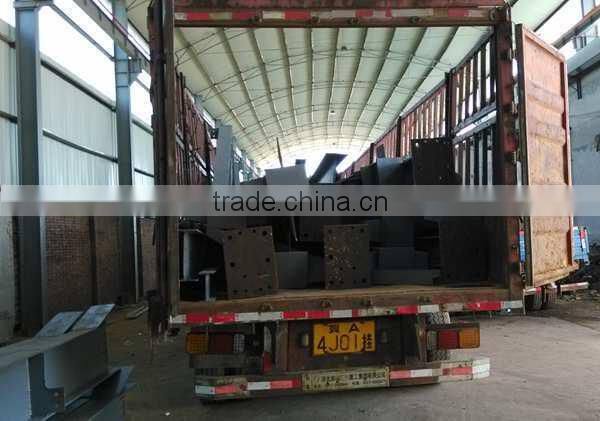

Transportation
Contact
