Q235 Structural Steel H Beam

US$ 450 - 720 MOQ: 5 Metric Tons

Key Specifications

Grade:

Q235

Technique:

Hot Rolled

Thickness:

4.5-16mm

Shijiazhuang Changhang Import & Export Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Grade Q235

Technique Hot Rolled

Thickness 4.5-16mm

Application Constructions Buildings

Length 6m 10m 12m-H BEAM

Standard JIS

Flange Width 50-400mm

Flange Thickness 6-45mm

Web Width 100-900mm

Web Thickness 6.5-70mm

Brand Name JG

Model Number H300*150

Specifications

Q235 H Beam Steel
1. High Tensile Strength
2. High Straightness
3. HEA, HEB are available
4. Wide application and use

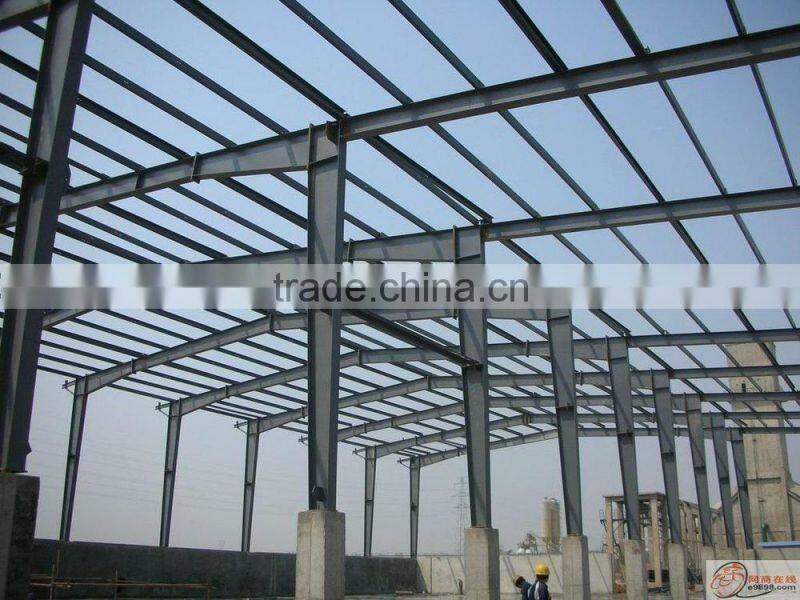

Q235 structural Steel H beam

Product Description

Description of H beam steel

1. Product

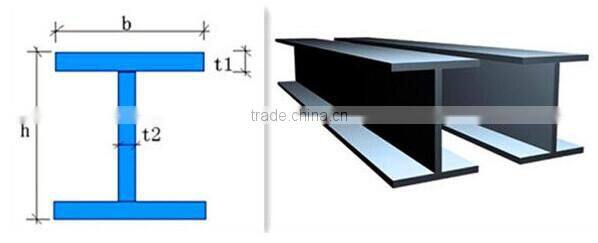

2. The Specification

H-beams

Standard Length : 6m ,9m, 12m or cut as customer’s requirement

Flange Width: 100mm to 314mm

Beam Height: 96mm to 1056mm

Flange Thickness Range : 8mm to 64mm

Web Thickness Range : 5mm to 35.6mm

3. Common Size

ACCORDING TO STANDARD: JIS G3192 OR GB/T11263-2005
H beam Section sizenma(mm)			Weight (kg/m)
Height×Breadth	Web thichness	Flange thichness	Weight (kg/m)
100×100	6	8	16.9
125×125	6.5	9	23.6
150×150	7	10	31.1
175×175	7.5	11	40.4
200×200	8	12	49.9
250×250	9	14	71.8
300×300	10	15	93.0
300×300	15	15	105.0
350×350	12	19	134.9
400×400	13	21	171.7
148×100	6	9	20.7
194×150	6	9	29.9
244×175	7	11	43.6
294×200	8	12	55.8
340×250	9	14	78.1
390×300	10	16	104.6
440×300	11	18	120.8
482×300	11	15	110.8
488×300	11	18	124.9
582×300	12	17	132.8
588×300	12	20	147.0
100×50	5	7	9.3
125×60	6	8	13.1
150×75	5	7	14.0
175×90	5	8	18.0
198×99	4.5	7	17.8
200×100	5.5	8	20.9
248×124	5	8	25.1
250×125	6	9	29.0
298×149	5.5	8	32.0
300×150	6.5	9	36.7
346×174	6	9	41.2
350×175	7	11	49.4
396×199	7	11	56.1
400×200	8	13	65.4
446×199	8	12	65.1
450×200	9	14	74.9
496×199	9	14	77.9
500×200	10	16	88.1
596×199	10	15	92.4
600×200	11	17	103.4
700×300	13	24	181.8
800×300	14	26	206.8
900×300	16	28	240.1
