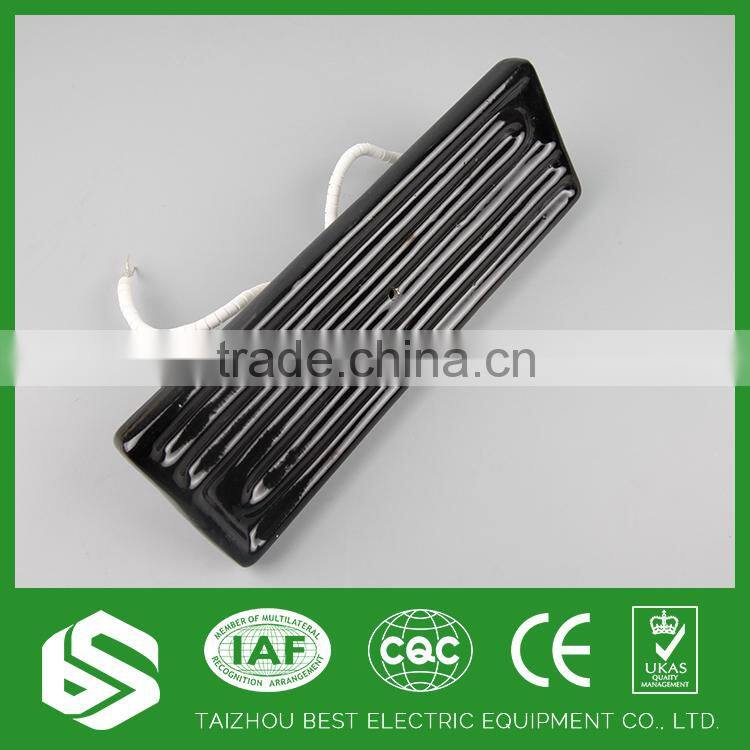

Flexible design black 500w wall mounted ceramic infrared heater
infrared ceramic emitter heater
Detailed power specification:
| Size(mm) | Type | Power |
| 60*60 | Curved/flat/Hollow | Available in 125w and 250w |
| 122*60/120*60 | Curved/flat/Hollow | Available from 125w to 500w |
| 122*122/120*120 | Curved/flat/Hollow | Available from 150w to 750w |
| 245*60 | Curved/flat/Hollow | Available from 150W to 1000w |
| 245*80 | Curved/flat/Hollow | Available from 150w to 1000W |
specification:
1,Nickel chrome resistance wire(NiCr20/80)
2,Color: White/Black
3, Type K thermocouple mounted internally in center heater. Optional type J thermocouple is also available.
Brief Introduction of Heating Ceramic Plate
Infrared Ceramic Heat Lamp is efficient, robust heaters which provide long wave infrared radiation. They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas.

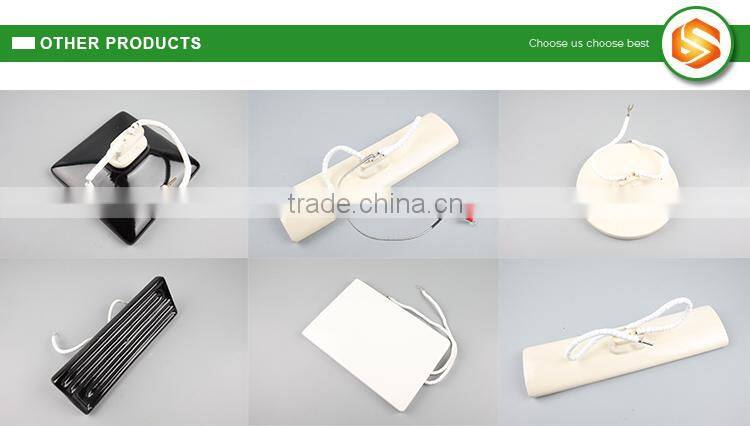

It has many kinds of shapes, contains lamp heater, flat heater, arc heater and square heater.
Features For Heating Ceramic Plate
<1>.Power wireburied-cast, antioxidation, resistant to impact, long service time
<2>.Heating alone or together.
<3>.It can obtain better uniform temperature to keep up and down about consistent when compact
<4>.In the hollow state off heat can also preserve heat, and heating speedup (adiabatic insulation cotton inside, so the temperature directional radiate to achieve rapid warming effect).
<5>.Uniform temperature,will not fade.
Application For Heating Ceramic Plate
<1>.Heating in PH environment (for example: Footwear processing, tape, plywood heating).
<2>.Stove machine with major vibration or impact (for example: Vacuum forming machine , Compression Molding Machine).
<3>. Short distance heating (for example: Printing ink dryer, PCB repair station, Electric heating tables).
<4>.Heating in vertical or half round array (for example: Angle iron,Aluminum windows paint stove) .
Technique Data of Heating Ceramic Plate
Specification for Reptile Ceramic Plate:
Model |
Dimension of tube |
Voltage |
Wattage |
|
(mm) |
(v) |
(w) |
Best-1-400 |
60X245 |
230/240 |
400w |
Best-1-500 |
60X245 |
230/240 |
500w |
Best-1-650 |
60X245 |
230/240 |
650w |
Best-1-800 |
60X245 |
230/240 |
800w |
• Your inquiry related to our product will be replied within 24hours.
• Well trained & experienced staff are to answer your inquiries professional in English of course.
• Working time: 8:30am - 5:30pm, Monday to Saturday.
• OEM is highly welcomed. We have strong R&D team here to help.
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back if you got question.
infrared ceramic heat emitter
