drink water filling equipment

Specifications

drink water filling equipment
1.rinsing,filling and capping 3-in-1
2.:50-90mm(D),150-320mm(H)
3.:12000-15000bph(500ml)

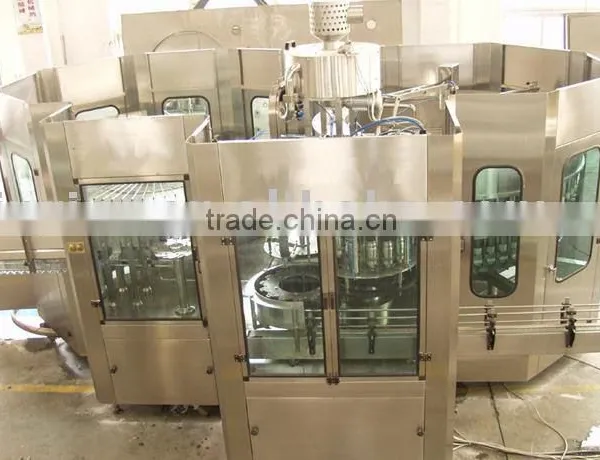

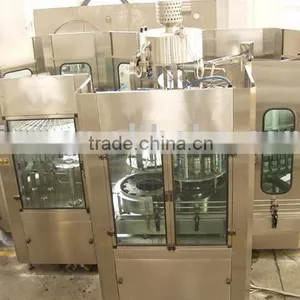

CGF32-32-10 full-auto 3-in-1 drink water filling equipment

Model: CGF32-32-10

Capacity: 12000bph-15000bph(500ml)

Washing head: 32

Filling head: 32

Sealing head: 10

Total power: 5.5KW

Conveying method: Wind delivery, bottleneck suspended operation, filled bottle conveying. (Krones technology)

Washing method: Infibulating the bottleneck washing.( Krones technology)

Filling method: Micro-pressure filling. (Krones technology)

Sealing method: Magnetic screw cap sealing. (Krones technology)

Wine tank shape: SS 316 Ring wine tank(Wall thickness:12mm, cover board thickness: 20mm, motherboard thickness: 25mm)

Transducer: Mitsubishi.(Japan)

Main electrical appliance: Siemens , SuZhou company

Touch screen: TOUCHWIN.(Canada)

Proximity switch: AUTONICS.(Korea)

Optical switch: AUTONICS.(Korea)

Speed reduce: TianYu.(Hangzhou, China)

Frequency motor: Anhui WanNan

Pneumatic component: AIRTAC.(Taiwan)

Dimension: 3050×2250×2800 (L*W*H)

Weight: 4800Kg
