High temperature u type sic heater rods
- 100000 Piece / Pieces per Month
- TAIZHOU
- T/T L/C D/P D/A Credit Card PayPal
- Heater Core Heater Welding Gun Heater Element
- Industrial Diesel Heater /Agricultural Vegetable Planting/Aquaculture Industry Heater
- Preheating equipment for hardbandig welding
- Heater Core Heater Welding Gun Heater Element
- DL-3 model electric air heater with upper outlet and lower inlet
- DL-2 model electric air heater with Left-Right Circulation
Product Details
Condition: | New | Type: | Air Heater | Power Source: | Electric |
Place of Origin: | Jiangsu, China | Brand Name: | best | Model Number: | Furnace Heating Parts |
Dimension(L*W*H): | customized | Weight: | all depends | Voltage: | all depends |
Power(W): | all depends | Certification: | Rohs | Warranty: | 1 year |
After-sales Service Provided: | Overseas third-party support available |
Product Description

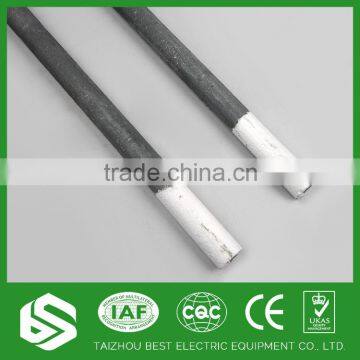

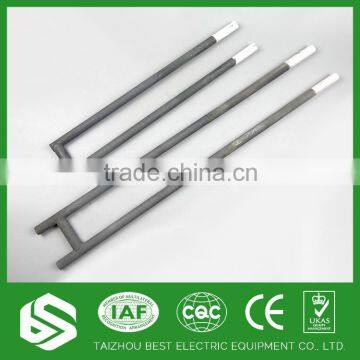

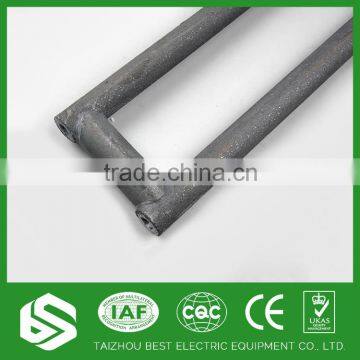

High temperature u type sic heater rods
Sic heating rod
Sic heating rod is a kind of non-mental high temperature electric heating element. It is made of selected high-purity green silicone carbide as raw material which is made into blank and silicone crystal under high temperature of 2400.C. It can usually make use for furnance which temperature from 600.C-1600.C. It can widely used in various electric heating element of glass,chemical, electronic material and so on.
Specification and range of resistance value:
outer diamater (OD,mm) | hot zone (HZ,mm) | cold zone (CZ,mm) | overall length (OL,mm) | range of resistance (ohms) |
8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
12 | 100-400 | 100-350 | 300-1100 | 0.8-5.8 |
14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
30 | 300-2000 | 250-800 | 800-3600 | 0.4-5.0 |
35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 |
Notice for using and installing:
1. Heater should be protected against damp during storing or installing to ensure the performance of the heater.
2. In order to be sure of well-distributed lod of each and groups, heater should be divided before assembling. The tolerance of the resistance of each one cannot exceed by 10% each other.
3. Heater is hard and brittle, please be careful when assem bling and maintaining so as to avoid damage.
4. When operating the electric furnace at the beginning, the voltage should be increased slowly and cannot be fully loaded at once. Otherwise the larger current will be resulted in the damage of heater.
5. When heater is damaged and need to be changed, the resistance of new ne should follow the increasing resistance. If many are damaged or resistance increased too much, heater should be changed.
• Your inquiry related to our product will be replied within 24hours.
• Well trained & experienced staff are to answer your inquiries professional in English of course.
• Working time: 8:30am - 5:30pm, Monday to Saturday.
• OEM is highly welcomed. We have strong R&D team here to help.
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back if you got question.
