3000-6000BPH glass wine bottle washer line

 3000-6000BPH glass wine bottle washer line

Application and scope of application

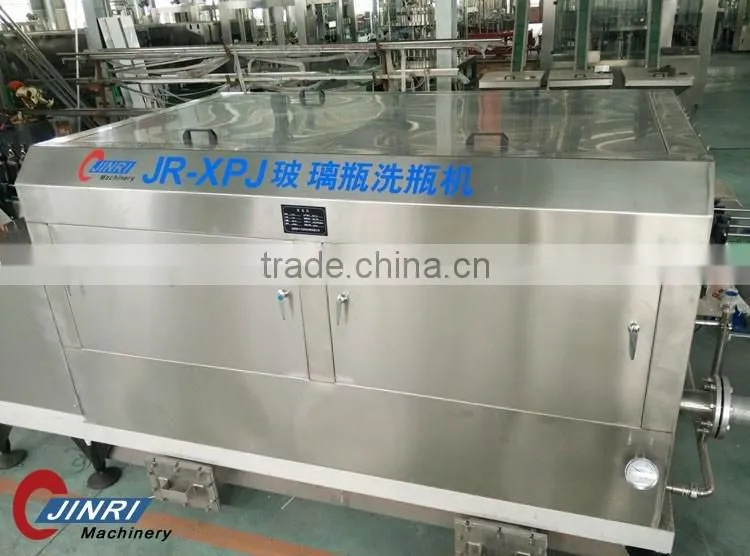

JINRI ZXP-150 type of automatic bottle washer, which is used for diverse specifications of

bottles. Whatever new or old bottles of beer, bottles of wine, bottles of beverage and so on.

A set of machinery consists of liquid filling machine and capper machine. This set create a

automatic line to product. The step of the automatic line which are washing, bulking and

packing. We also can offer stand-alone belong to single-function of washing.

2. Main technical parameters

2.1 bottle specification (cylindrical)

external diameter: 56-82mm ,hight: 180-290mm ,inner diameter of bottle: greater than 15mm

2.2 productivity : 4000bottle/hour

2.3 Clean up rate: greater than 90%

2.4 Extract rate: 0.3%

2.5 total power: 9.72Kw , Voltage: 380V

2.6 total weight: 5.2t

2.7 external dimensions:

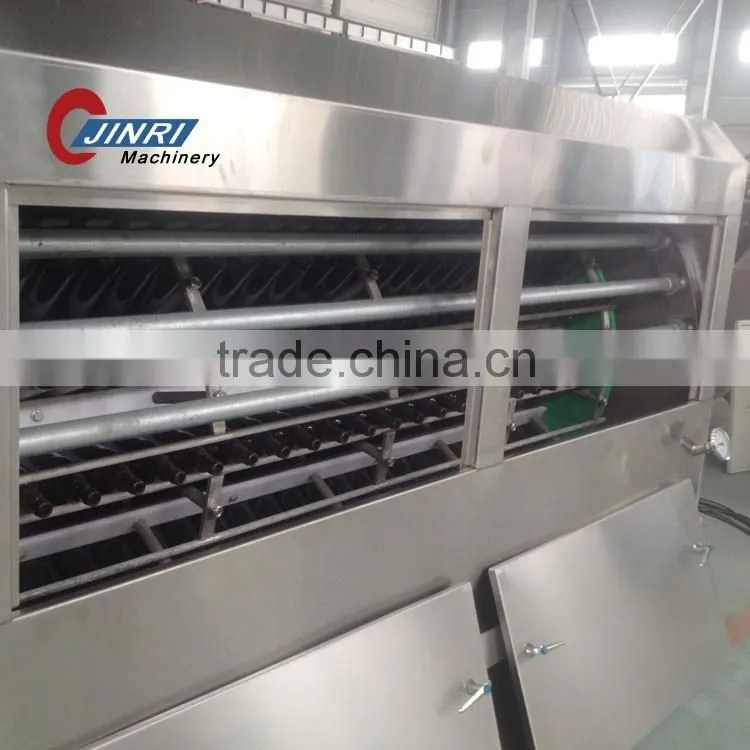

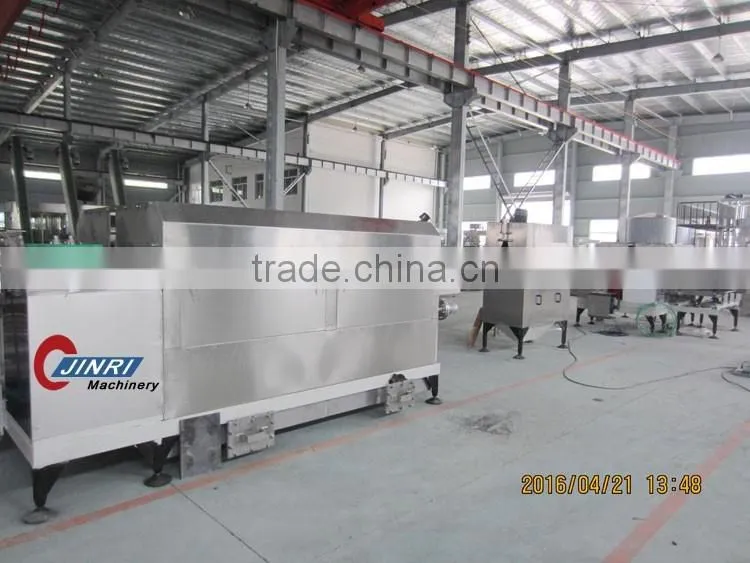

Steeper: 3*2.2*1.5* (m)

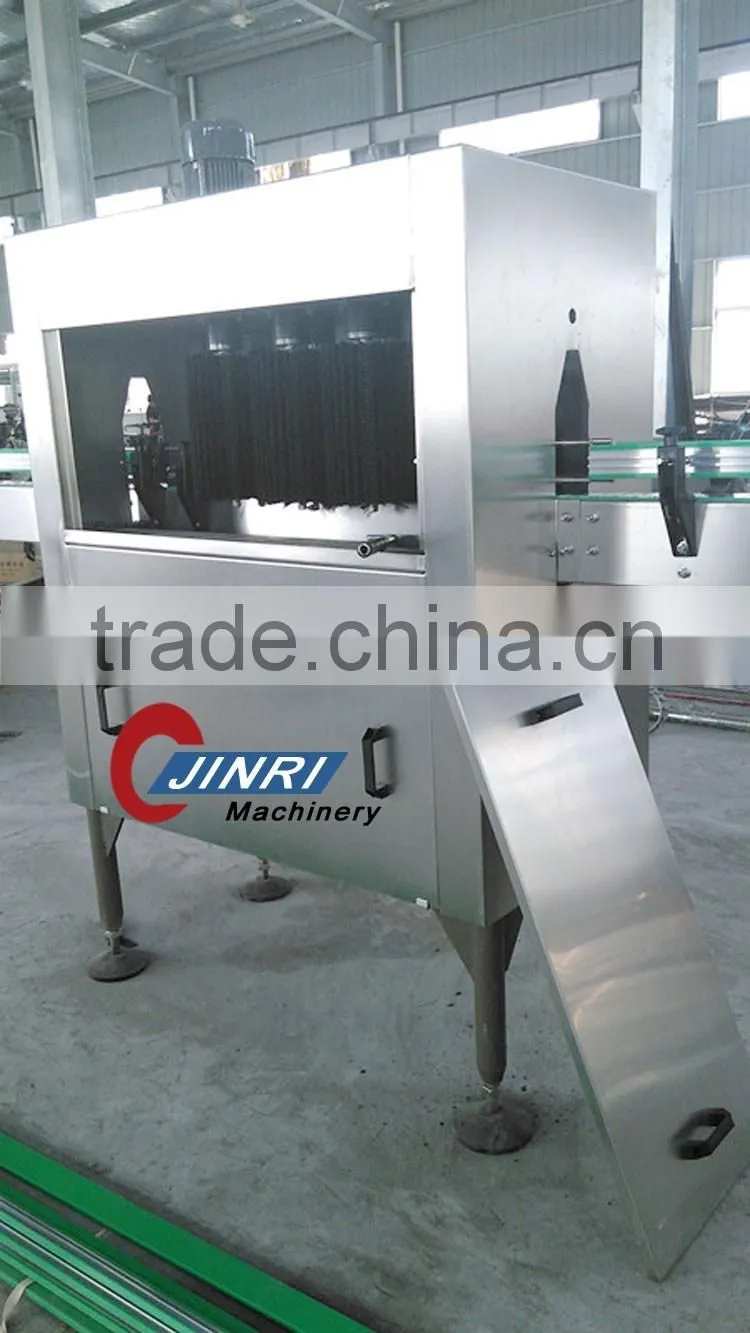

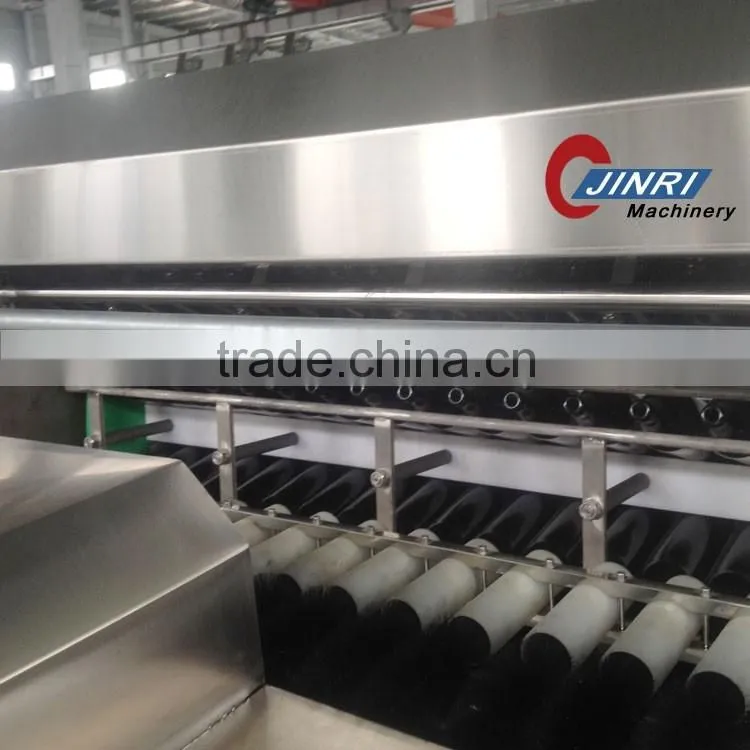

Outside brush machine: 1.3*0.6*1.9 (m)

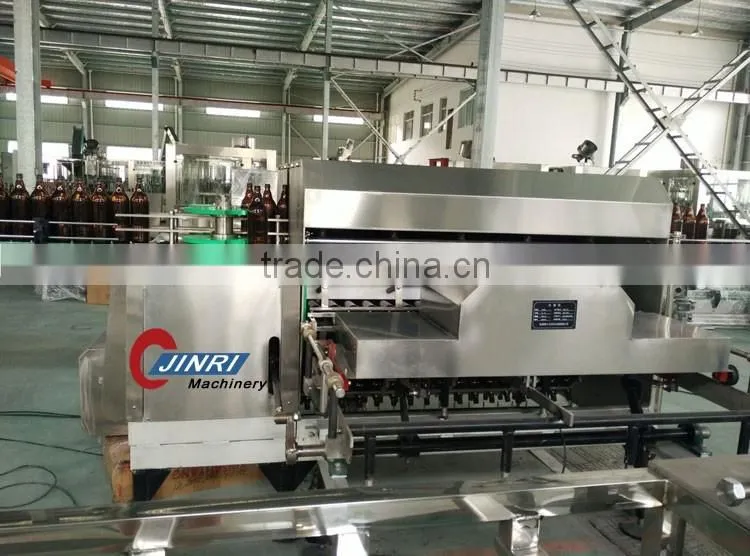

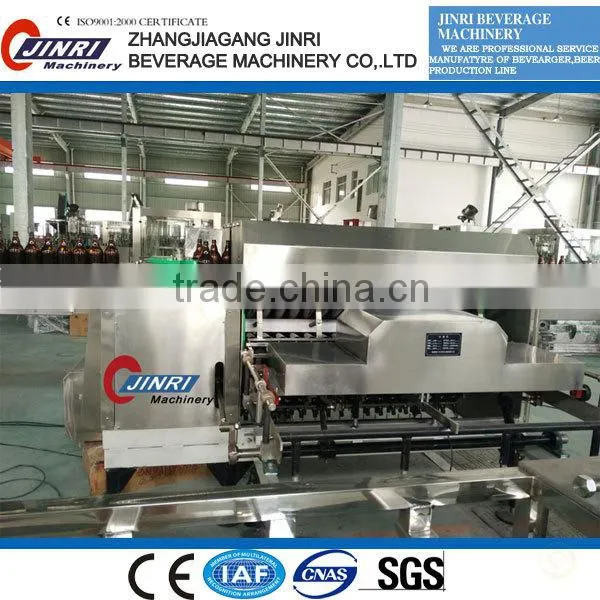

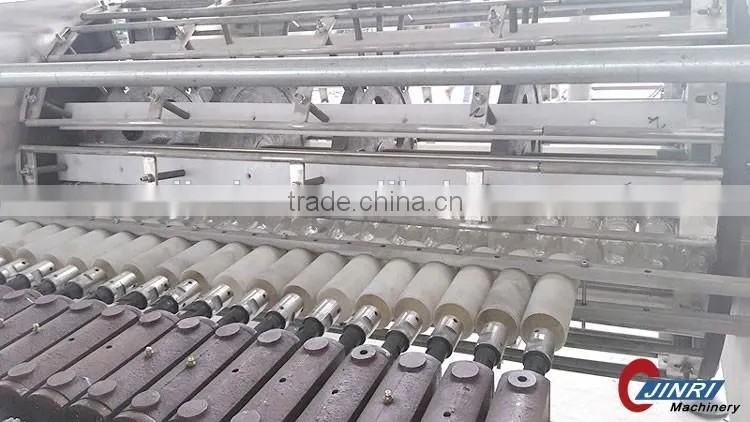

Inside brush machine: 2.3*1.3*1.5 (m)

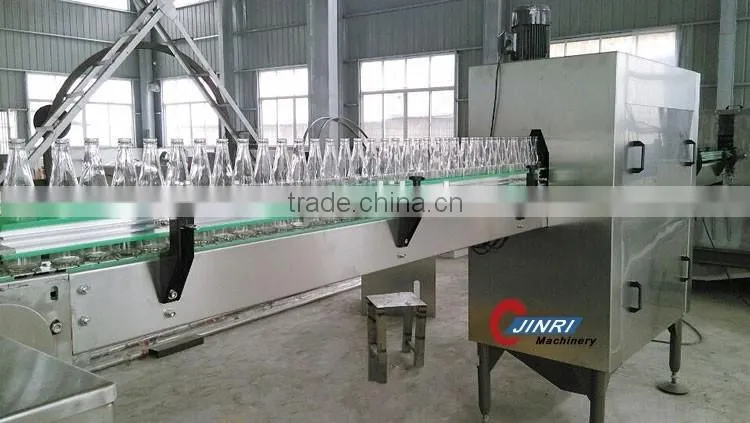

Bottle conveyer: 8m (length)

3. Primary structure and tracert

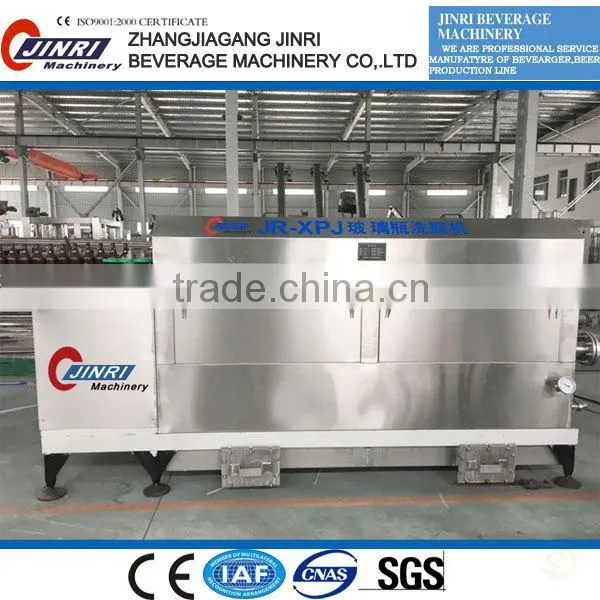

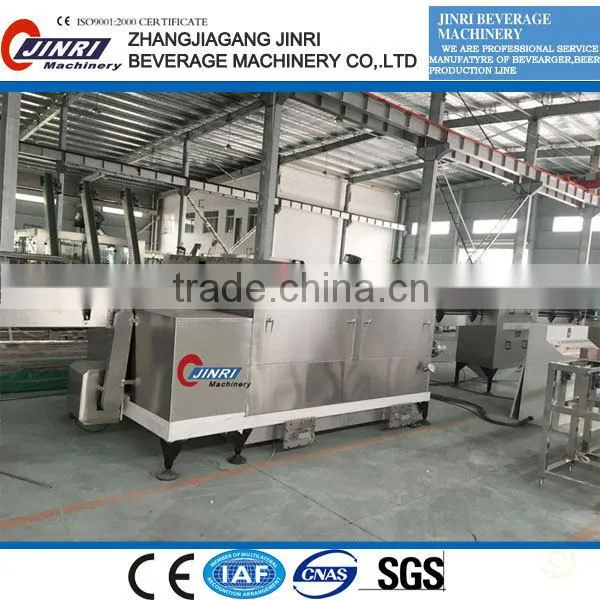

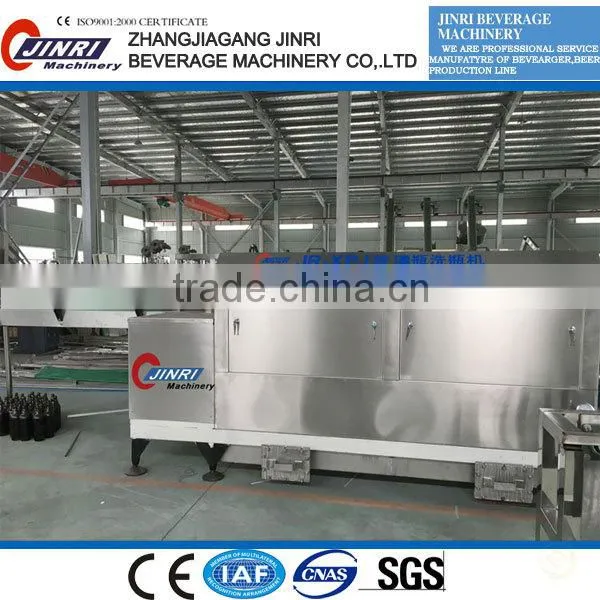

ZXP-150 type of automatic bottle washer is formed by steeper, outside brush machine,

inside brush machine, bottle conveyer and so on :

Due to the outside bruch is field fixer, the outside brush as adapting.

Flow chart for standard production line:

Enter------steep and flush-----outside brush-----inside brush-----flush cleaning water into

bottle------dry-----out

(the temperature of hot containing soda:50-55 ℃, the concentration of containing soda is

about 2.5%)

 Customer's service

1.JINRI company can provideo turn-key project for you, only you have any idea to start beverage factory plant.
2.JINRI company have professional design team, our engineer can draw bottle samples and flow chart of

    workshop for you .
3. JINRI company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc

After service

1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
    a. Machine layout
    b. Electricity diagram
    c. Machine certificate
    d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance service.

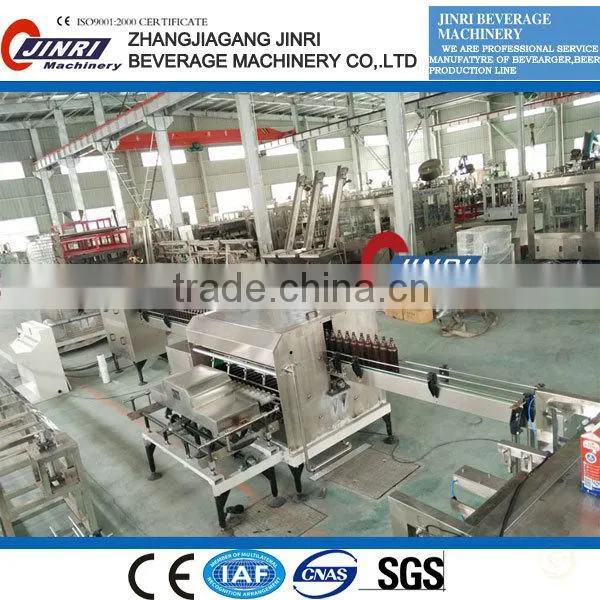

  Factory Show

Contact  Us:

Q1: What drink will you need to fill?

A1: Water or juice or beer or carbonated drink or wine ?

Q2: What is your bottle size?

A2: 200ml?  330ml? 500ml?  600ml?  750ml?  1500ml?  2000ml?  5-10l?  3-5gallon?

Q3:What is your bottle type?

A3:PET bottle or Glass bottle or aluminum can?

Q4: What is your filling speed?

A4:1000 bottles per hour?  or 2000 bottles per hour?  or 3000 bottles per hour?  or 5000 bottles per hour or .......

Q5: Will you need sole filling machine or the complete filling line?

A5: From water filters to preparation to filling to labeling to packing, also include bottle blowing

Q6:Are you a trading company or a manufactory?

A6:We are a manufactory,can give u best service .

Q6:What’s your guarantee or the warranty of the quality if we buy your machines?

A7:We offer you high quality machines with 1 year guarantee . we will give u spare  part free

in 1 year

Q7:When can I get my machine after I paid?

A8:We will deliver the machines on time as the date we agreed both side.

Q9:How can I install my machine when it arrives?

A9:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.

Q10:How about the spare parts?

A10:After we deal down all the things , we will offer you a spare parts list for your reference.
