carbonated soft drink filler
product description for carbonated soft drink filler
1.This kind of complete set of machine combines washing,filling and rotary capping functions in one unit,is a
fully automatic and high efficiency liquid packing equipment.
2.It is suitable for packing beverage containing gas. Its performance is as following all parts,for instance, filling
valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the
requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the
technique requirements of users to sterilization at high temperature.
3.Using programmable controller to realize fully automatic control from bottles entering to finishing packing,
Using transducer as speed regulator, so the user can regulate the machine easily to suit different power
requirements, Adopting equal pressure filling principle and current spring valves in order to assure beverage
quality, Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality
Application for carbonated soft drink filler
This series machine is used for filling various carbonated drinks in PET bottles.
- Washing, filling and capping are carried out on a mono block base.
- Bottles transfer through the machine by our neck handling system to ensure that damage to the body of the bottles is minimal.
- The machine is built to allow easy access for both operators and engineers.
- With minimum parts changed, the system can also applied to non-carbonated water bottles, including flavored water and enhanced water
3-in-1 Washing, Filling, Capping For Carbonated drink
| Model | DCGF14-12-5 | DCGF 18-18-6 | DCGF 24-24-8 | DCGF 32-32-8 | DCGF 40-40-10 |
| Washing heads | 14 | 18 | 24 | 32 | 40 |
| Filling heads | 12 | 18 | 24 | 32 | 40 |
| Capping heads | 5 | 6 | 8 | 8 | 10 |
|
Capacity (b/h)500ml |
2000-3000 | 4000-6000 | 7000-8000 | 8000-12000 | 12000-15000 |
| Power motor(kw) | 2.2 | 3.5 | 4.5 | 5.5 | 5.5 |
Pictures for carbonated soft drink filler

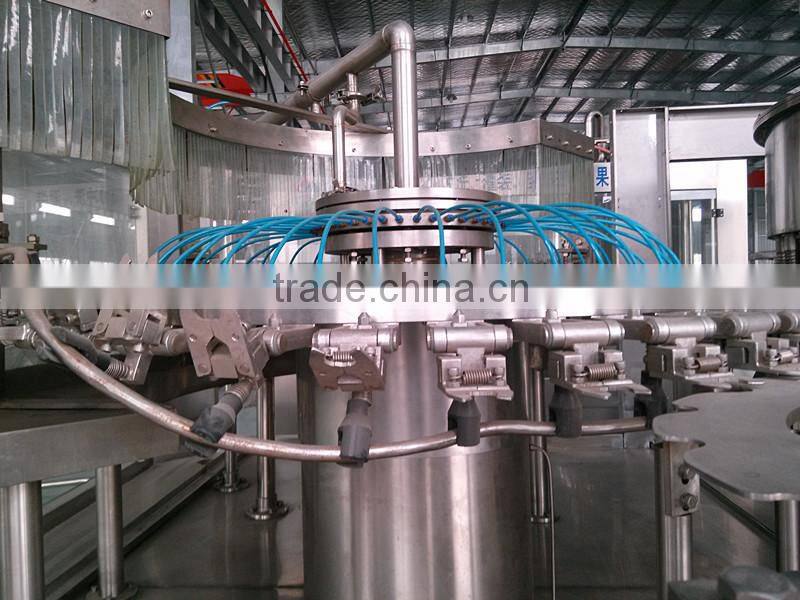

washing part

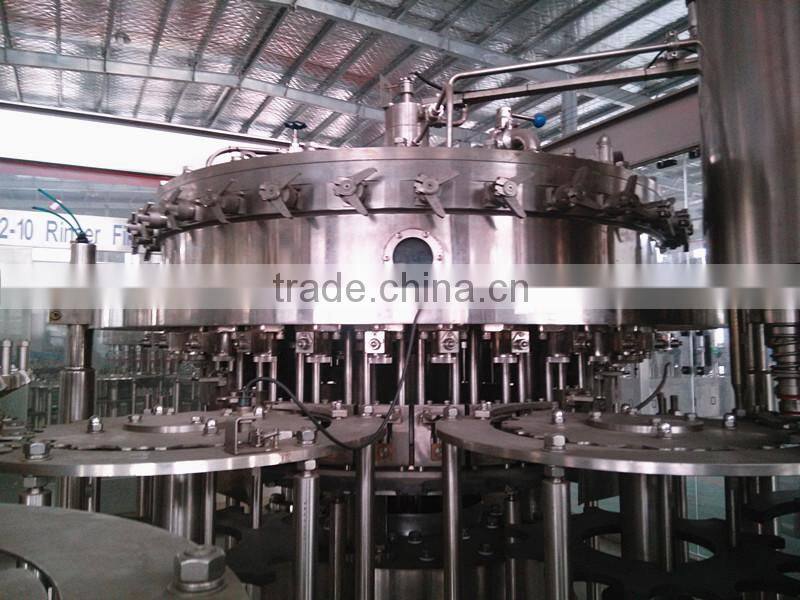

filling part

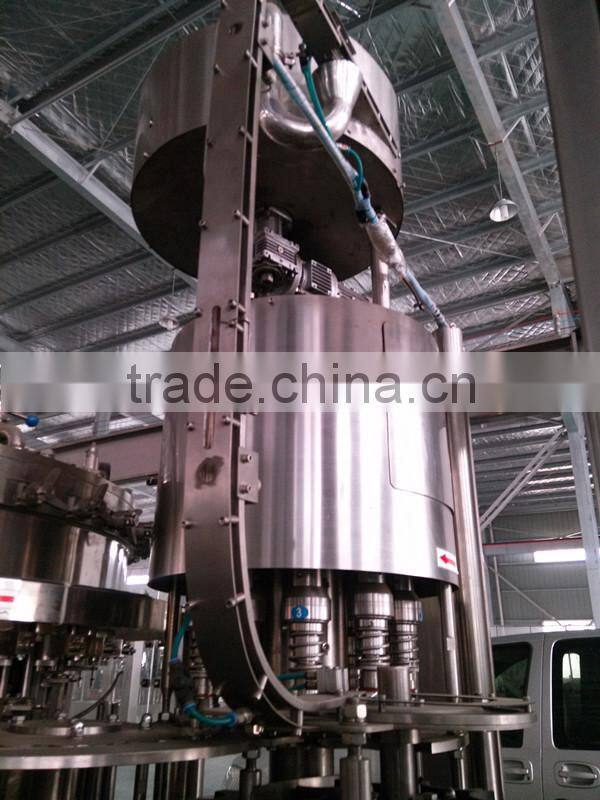

capping part

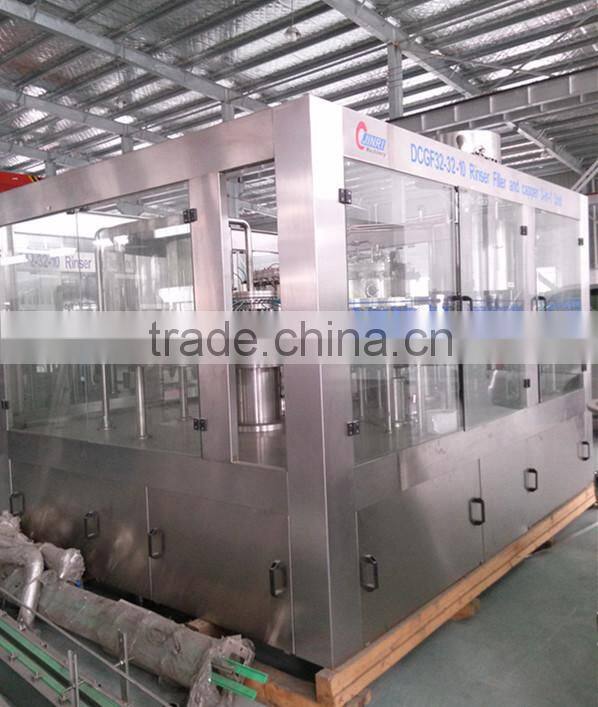

monoblock washing filling capping machine
