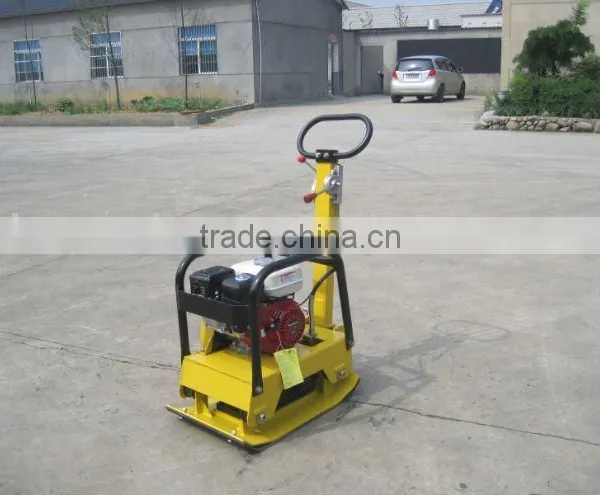

Help CenterNew Reversible Plate Compactor 5.5HP
Related Products
Specifications
Superior compaction in any directions, forward and reverse. Low maintenance design-less time and less costly to repair.Model: |
RC125-1 |
RC125-2 |
RC125-3 |
RC125-4 |
||||
Engine : |
Air-cooled,4-cycle,single cylinder |
|||||||
Engine Type: |
Diesel Kipor170 |
Chinese petrol engine |
Petrol,Robin EX17 |
Petrol Honda GX160 |
||||
Power kw(hp) |
3.1(4.2) |
4.8(6.5) |
4.2(5.7) |
4.0(5.5) |
||||
Operation Mass kg(lbs) |
137 (302) |
127(280) |
126(278) |
126(278) |
||||
Frequency(vpm) |
4300 |
|||||||
Centrifugal Force(kn) |
25 |
|||||||
Compaction depth (cm/in) |
30(12) |
|||||||
Travel speed cm/s(in/s) |
25(10) |
|||||||
Efficiency m2/hr(ft2/hr) |
500(5400) |
|||||||
Plate Size cm (in) |
63*40(25*16) |
|||||||
Dimension cm(in) |
75*40*93(30*16*37) |
|||||||
Features:
- Easy-to-reach located controls.
- Large shock mounts reduce vibration to the handle..
- Heavy-duty shock mounts reduce vibration to the upper deck.
- wear-resistant base plates extend life,open design reduces dirt building.
- Centrally-located lifting bar transport in and out of trenches
- Warp aroud protection cage protects the plate from accidental job-site damage
- Heavy duty industrial throttle control is availables as optional.
- Trolley wheel for easy transportation is available as optional.
Our advantage:
1.canbe coupled to electric motors,,gasoline engines,diesel engines,flexible shaft pumps
2.no mini order demads
3.can supply OEM service with your own logo
4.can send sampales for testing in advance, welcome to visit factory warmly
5.can supply the most competitive price with the high quality for you: all flexible shafts c/w rubber hoses and all connectors for concrete vibrators,are manufactured by ourselves
6.can supply or assemble the semi-products concrete vibrator for you.
After sale service:
we have 3 months warranty.
1. within 3 months,if there is some accesorry going wrong,we will send you the accessory at once,free of charge or deliver the spare in the next order
2. in the period guarantee,we change the defective parts(but the wearing parts)for free in the condtion that the users comply the rules of transportation,storage and using,if the vibrator is broken or can not be working well.
3.no responsibility for man-made destroy.
4.If the buyer has any questions from our technical department, we can supply on-line service
