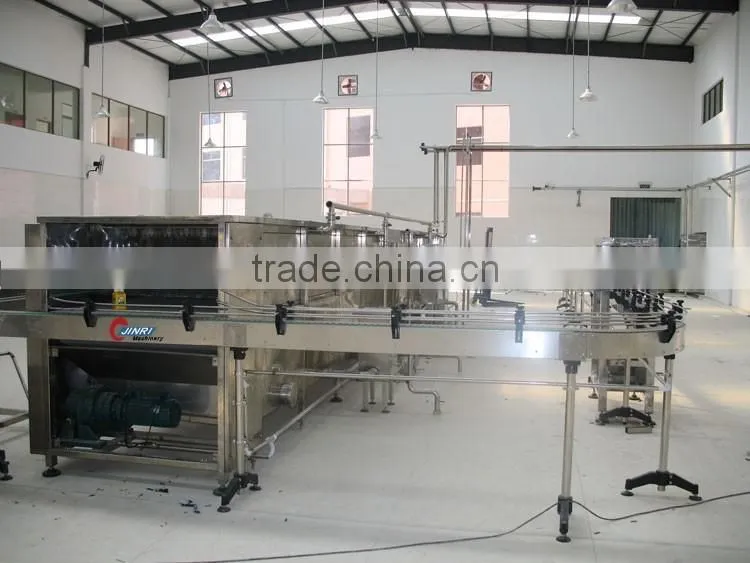

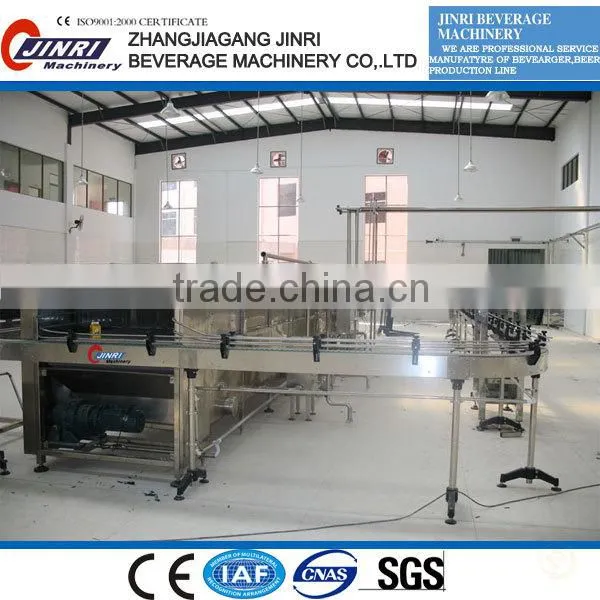

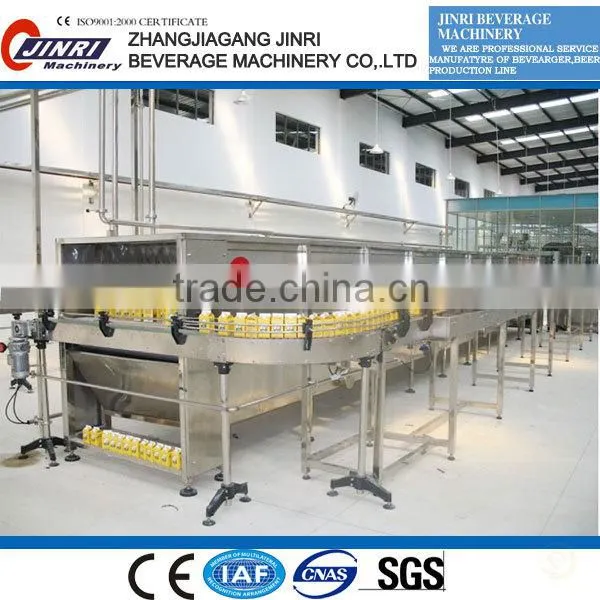

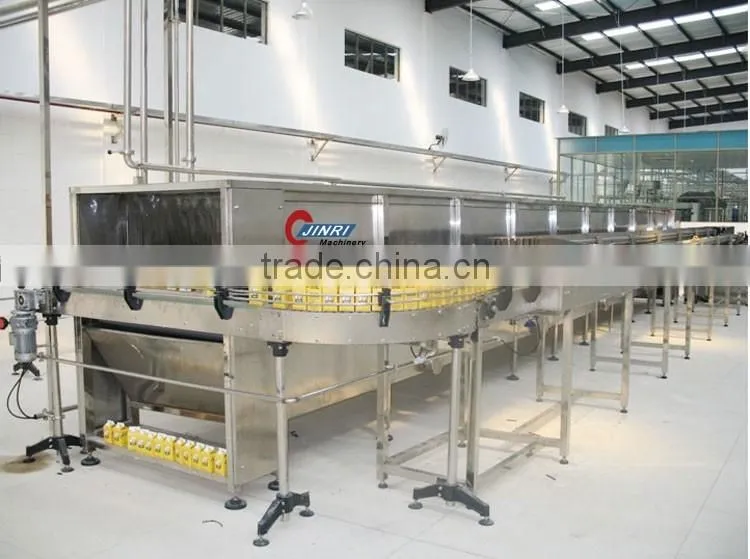

Spray pour cooling bottle machine
This spray pour cooling machine is used for juice,tea beverage in PET or glass bottles line. Its working process can be divided into 3stage, circulating hot water spraying, warm water pre-cooling and cold water-cooling/heating temperature and time can be regulated in according to the requirements of user.
It is suitable for cooling/heating all kinds of bottled or canned hot beverage and aerated beverage. Which made of high temperature resistance polypropylene(CPP). Its structures is made of fine stainless steel. So the machine is more reliable in running, also it has a beautiful appearance.
Model |
PLP4000 |
PLP6000 |
PLP12000 |
LPP36000 |
Producing Capacity(B/L) |
3000-5000 |
6000-9000 |
10000-15000 |
24000-36000 |
Warming Tem.(°C) |
37-45 |
37-45 |
37-45 |
37-45 |
Cooling Time(Min) |
12-15 |
12-15 |
12-15 |
12-15 |
Conveying speed |
100-550 |
100-550 |
100-550 |
100-550 |
Width of Chain(M) |
1.22 |
1.22 |
1.22 |
1.22 |
Steam Pressure(Mpa) |
<0.4 |
<0.4 |
<0.4 |
<0.4 |
Water Consumption(m³/H) |
6 |
9 |
15 |
28 |
Steam Consumption(Kg/H) |
80 |
120 |
250 |
280 |
Power(Kw) |
6 |
7.55 |
8.6 |
18 |
Dimension(Mm) |
6200*1500*1700 |
15800*1500*1700 |
15800*1800*1700 |
22000*800*1700 |
Weight(Kg) |
2500 |
3200 |
4300 |
5600 |
Customer's service
1.JINRI company can provideo turn-key project for you, only you have any idea to start beverage factory plant.
2.JINRI company have professional design team, our engineer can draw bottle samples and flow chart of
workshop for you .
3. JINRI company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc
After service
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING
Q1: What drink will you need to fill?
A1: Water or juice or beer or carbonated drink or wine ?
Q2: What is your bottle size?
A2: 200ml? 330ml? 500ml? 600ml? 750ml? 1500ml? 2000ml? 5-10l? 3-5gallon?
Q3:What is your bottle type?
A3:PET bottle or Glass bottle or aluminum can?
Q4: What is your filling speed?
A4:1000 bottles per hour? or 2000 bottles per hour? or 3000 bottles per hour? or 5000 bottles per hour or .......
Q5: Will you need sole filling machine or the complete filling line?
A5: From water filters to preparation to filling to labeling to packing, also include bottle blowing
Q6:Are you a trading company or a manufactory?
A6:We are a manufactory,can give u best service .
Q7:What’s your guarantee or the warranty of the quality if we buy your machines?
A7:We offer you high quality machines with 1 year guarantee . we will give u spare part free
in 1 year
Q8:When can I get my machine after I paid?
A8:We will deliver the machines on time as the date we agreed both side.
Q9:How can I install my machine when it arrives?
A9:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q10:How about the spare parts?
A10:After we deal down all the things , we will offer you a spare parts list for your reference.
