(20 years factory)10mm 18*7+IWS 17*7+IWS NON-ROTATING STEEL WIRE ROPE

Specifications

(20 years factory)10mm 18*7+IWS 17*7+IWS NON-ROTATING STEEL WIRE ROPE
Faigue Durabllity
Double-layer
Quality Approval

(20 years factory)10mm 18*7+IWS 17*7+IWS NON-ROTATING STEEL WIRE ROPE





Company Strength:



Tianjin huayuan was founded in1995. With over 10-year development,it has 6 series of products,and main products are steel wire and its extended products. Tianjin huayuan industial company has becomeone of the biggest steel wire products manufactures in China,and its annual production capacity has reache 400 thousand tons.



Huayuan has beentaking great efforts to enhancethe general level and foster a good image of the company.One si to strengthen the technological development.Huayuan organizes and set up Tianjin city level R&D center with a large number of well-known technial specialists,which promotesthe technological progess and improves the level of  company`s product, technology, equipment. One the other hand,Huayuan also focus on strengthening brand construction.It got the honorable title of "Contract-honoring and Credit-valuing Enterprise",and ti si an ISO9001reusteredcompany.are selling well in Europe,America,Asia and other developed countriesand regions,applying to worldwide arriculture,infrastruture,communication cables,automobile industry,as well as other industry ,as well as other industries ,enjoying a high popularity,creditworthness and brand favorite in both international .





18*7+IWS  18*7+IWS

Diameter mm	GB/T20118-2006/GB 8918-2006			EN12385-4
	Min. Breaking load(N/mm2)		Approx Weight	Min. Breaking load(N/mm2)		Approx Weight
	1670	1770		1770	1960
	FC/IWS	FC/IWS	FC/IWS	FC/IWS	FC/IWS	FC	IWS
6	19.7	20.9	15.5	20.9	23.1	13.8	14.4
7	26.8	28.4	21.1	28.4	31.5	18.7	19.6
8	35.1	37.2	27.5	37.2	41.1	24.4	25.7
9	44.4	47	34.8	47	52.1	30.9	32.5
10	54.8	58.1	43	58.1	64.3	38.2	40.1
11	66.3	70.2	52	70.2	77.8	46.2	48.5
12	78.9	83.6	61.9	83.6	92.6	55	57.7
13	92.5	98.1	72.7	98.1	109	64.6	67.8
14	107	114	84.3	114	126	74.9	78.6
16	140	149	110	149	165	97.8	103
18	177	188	139	188	208	124	130
20	219	232	172	232	257	153	160
22	265	281	208	281	311	185	194
24	316	334	248	334	370	220	231
26	370	392	291	392	435	258	271
28	429	455	337	455	504	299	314
32	561	594	440	…	…	…	…

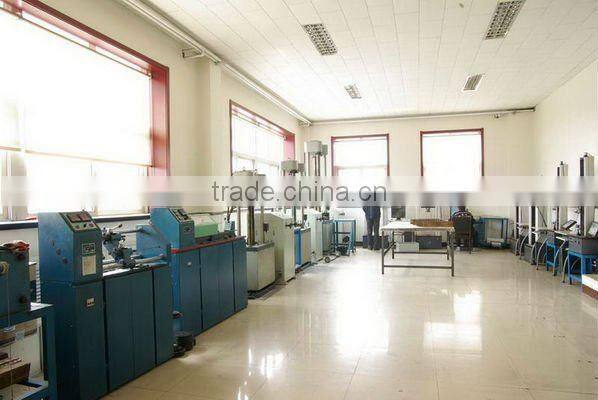

We have our own Chemical labotory and Mechanical labotory, so all of our raw material, semi-finished product and finished products are tested,valued and approved  to the next processing step .
