Three-Phase 3kv-10kv AC Drive High Voltage Variable Frequency Drive

Three-Phase 3kv-10kv AC Drive High Voltage Variable Frequency Drive photo-1
Three-Phase 3kv-10kv AC Drive High Voltage Variable Frequency Drive photo-2

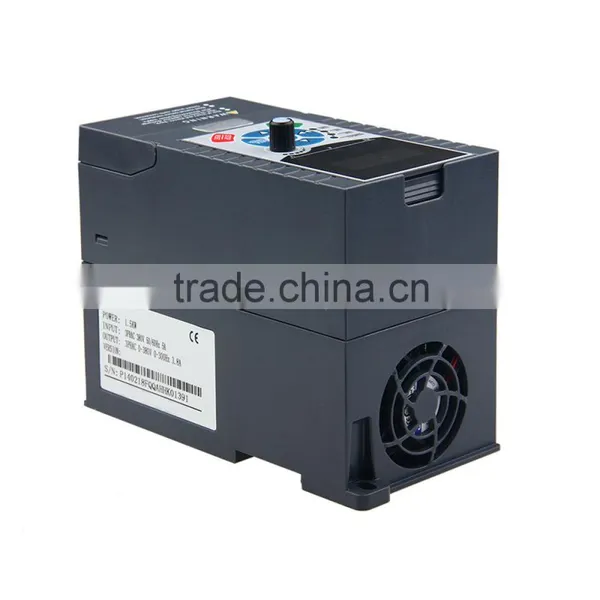

Three-Phase 3kv-10kv AC Drive High Voltage Variable Frequency Drive photo-3
Three-Phase 3kv-10kv AC Drive High Voltage Variable Frequency Drive photo-4
Three-Phase 3kv-10kv AC Drive High Voltage Variable Frequency Drive photo-5
Three-Phase 3kv-10kv AC Drive High Voltage Variable Frequency Drive photo-6
US$ 100 - 29,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
EMHEATER
Model Number:
EM11series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name EMHEATER
Model Number EM11series
Output Power 1 - 200KW
Output Type Triple
Size 236mm*149mm*180mm
Weight 4.5kg
Input Voltage 220V
Output Voltage 220V
Type Other, AC/AC
Output Frequency 50Hz/60Hz
Output Current 4A

Three-Phase 3kv-10kv AC Drive High Voltage Variable Frequency Drive

Product Display

Three-Phase 3kv-10kv AC Drive High Voltage Variable Frequency DriveThree-Phase 3kv-10kv AC Drive High Voltage Variable Frequency Drive

Three-Phase 3kv-10kv AC Drive High Voltage Variable Frequency DriveThree-Phase 3kv-10kv AC Drive High Voltage Variable Frequency DriveThree-Phase 3kv-10kv AC Drive High Voltage Variable Frequency Drive

Descripition

1 Phase input, 1 phase output,  200-240V, 0.4-11KW

1 Phase input, 3 phase output,  200-240V, 0.75-350KW

3 Phases input, 3 phase output 200-240V, 0.75-500KW

3 Phases input, 3 phase output 380-415V, 0.75-630KW

3 Phases input, 3 phase output 420-480V, 0.75-630KW

3 Phases input, 3 phase output 575-690V, 11-630KW



   EMHEATER 220v three  phase EM11-series  AC Frequency Inverter & Frequency Converter







1.Input Voltage Range  220V/380V/460V/690V±15%

2.Input Frequency Range 47-63Hz

3.Output Voltage Range 0-rated input voltage

4.Output Frequency Range 0-600Hz

5.Overload Capacity:60s with 150% of rated current, 10s with 180% of rated current.

6.Self study motor parameter function

7.Control Mode: Sensorless Vector Control (SVC),Constant Torque,V/F Control.

8.Speed Accuracy: Sensorless Vector Control  0.5% of maximum speed (SVC)

9.Starting Torque: 150% of rated torque at 0.5Hz (SVC).

10.Programmable Timing Running(Simple PLC)

11.All model are integrated IGBT

12.The malfunction ratio is 0.1% within 18 months warranty.



13.All model are integrated IGBT

14. Optional displaying 4 lines keypad.

15. The malfunction ratio is 0.1% within 18 months warranty.



Application



mechanics,electronics,metallurgy, mining, petrochemical, transportation, building materials, municipal, metal processing, textile, printing and dyeing, paper making, Injection machine, central air conditioning, numerical control machine tool, air-compressor, extruding machine, fan and pump, blower, injection machine, air conditioner for large buildings, wastewater treatment system, water supply system for large buildings, public water supply system and other industries and fields.

Three-Phase 3kv-10kv AC Drive High Voltage Variable Frequency Drive



Knitting Machine, compressor, extruding machine, injection machine,electrical motor,braiding machine,pressure fan, forced draught blower, blower,blowing machine,blow molding machine,root’s blower,film blowing machine,cutterbar, cut-off machine,slitter,Cutting machine,conveyor,pump,grinder, crusher,glazing machine, polisher, polishing machine,laundry-drier,drying machine,ball crusher,ball grinding mill,drawing machine
