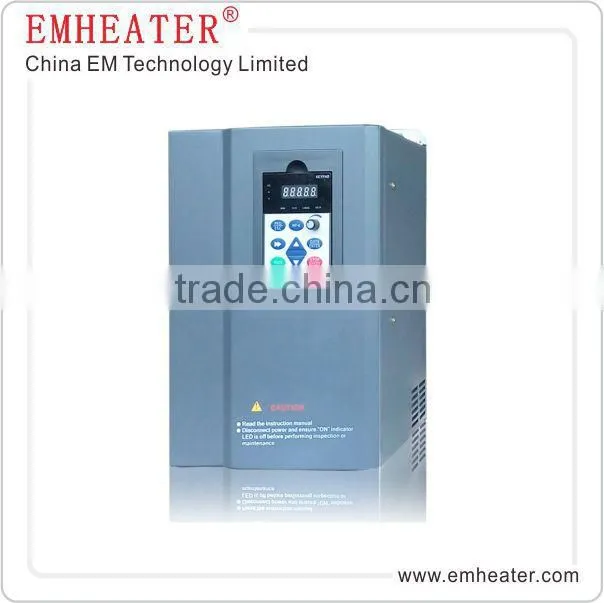

380V Vector Control ac Drive for ac Variable Motor Frequency Speed Control 30kW 50hz 60hz (EM11 Series)

380V Vector Control ac Drive for ac Variable Motor Frequency Speed Control 30kW 50hz 60hz (EM11 Series) thumbnail-1
380V Vector Control ac Drive for ac Variable Motor Frequency Speed Control 30kW 50hz 60hz (EM11 Series) photo-1
US$ 99 - 9,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
EMHEATER
Model Number:
EM11-G1/G3
Contact Supplier Request Quote Chat Now
Shenzhen EMHEATER Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name EMHEATER
Model Number EM11-G1/G3
Output Power Other, 0.75kW-400kW
Output Type Triple
Size As per product
Weight As per product
Input Voltage 220V~240V; 380V~460V;560V-690V
Output Voltage 220V~240V; 380V~460V;560V-690V
Type DC/AC Inverters
Output Frequency 0-600Hz
Output Current 2.1A-820A



EM11 series Newly Vector Variable Frequency Inverter



 380V vector control ac drive for ac variable motor frequency speed control 30kW 50hz 60hz (EM11 series)



Products Features:

1.EM11 is first class frequency inverter with very strong software and hardware.
2.It has servo drive feature, with perfect speed control mode, and excellent torque control mode.
3.It can save 2 group motor parameters , and can drive synchronous motor and asynchronous motor.
4.It has sensor-less vector control (SVC), vector control+ PG; V/F control and V/F separation control.
5.It has 49 kinds digital input functions and 38 kinds digital output functions
6.It has S curve of acceleration and deceleration, user can self defined S curve turning time.
7.The IGBT carrier frequency can auto adjustment according to heatsink temperature.
8.35 kinds protection function, including auto detecting short circuit after power on.
9.including textile swing frequency and skip frequency function, etc.
10.Voltage Range:220V~240V; 380V~460V;
11.Input Frequency Range:45~65Hz
12.Output Voltage Range:0V~rated input voltage
13.Output Frequency Range:V/F( 0~3000Hz); Vector Control (0~300Hz).
14.Overload Capacity:60s with 150% of rated current, 3s with 180% of rated current
15.From 0.75~7.5KW Plastic house; 11~400KW is metal house
16.Speed Accuracy: ±0.5% (SVC); ±0.02% (VC);
17.Pulse setting input: 0Khz~100Khz.
18.All model built-in RS485 card, and approved by CE.
19.EM11-G3/P3 models are integrated IGBT.
20.The malfunction ratio is 0.1% within 18 months warranty.

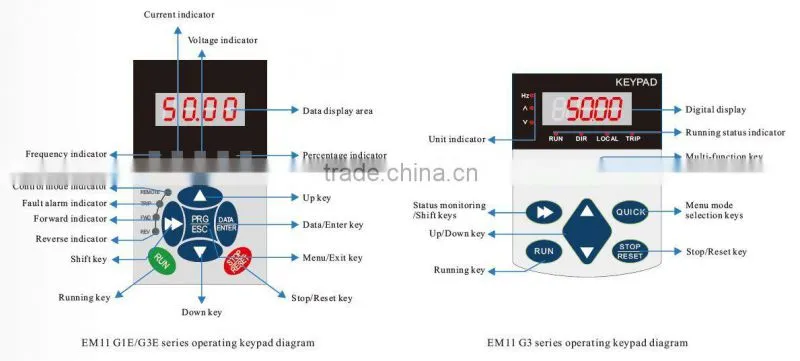

Digital Operational Keypad:



380V vector control ac drive for ac variable motor frequency speed control 30kW 50hz 60hz (EM11 series)

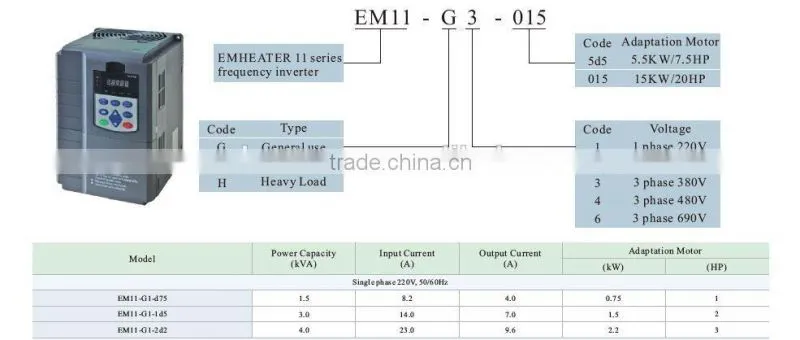

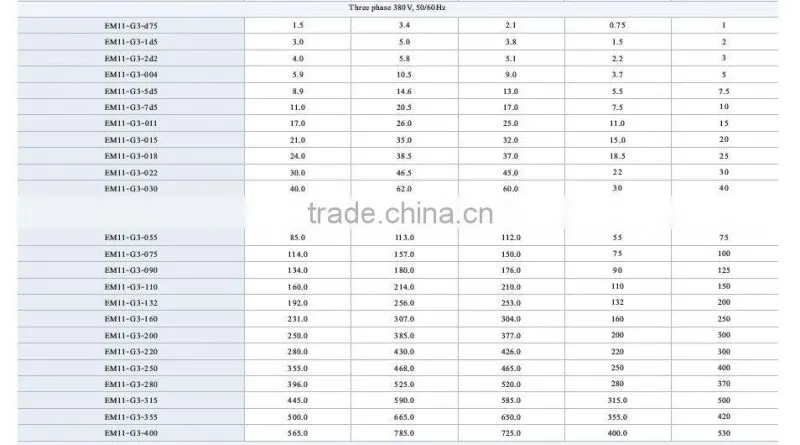

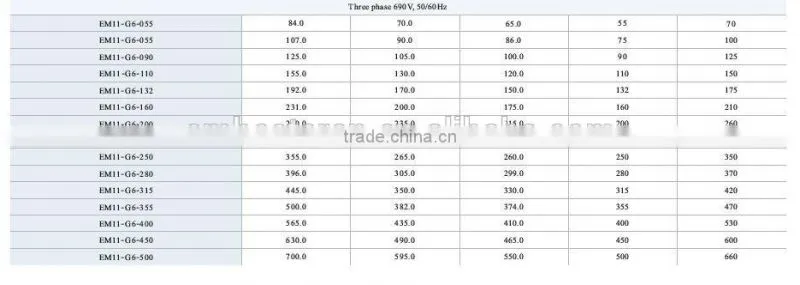

Products Selection Models:



380V vector control ac drive for ac variable motor frequency speed control 30kW 50hz 60hz (EM11 series)380V vector control ac drive for ac variable motor frequency speed control 30kW 50hz 60hz (EM11 series)380V vector control ac drive for ac variable motor frequency speed control 30kW 50hz 60hz (EM11 series)

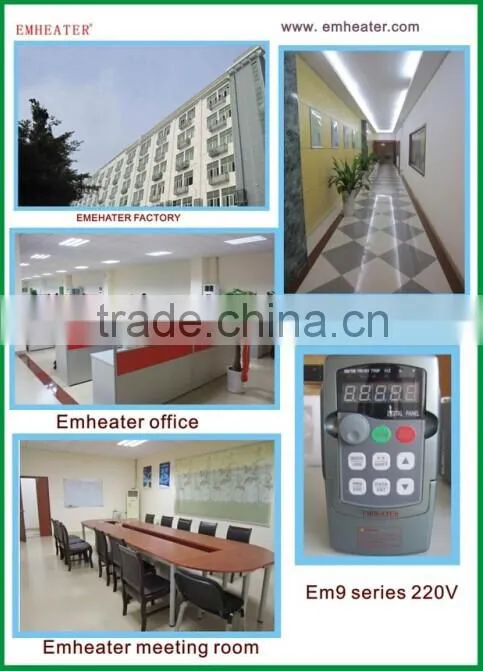

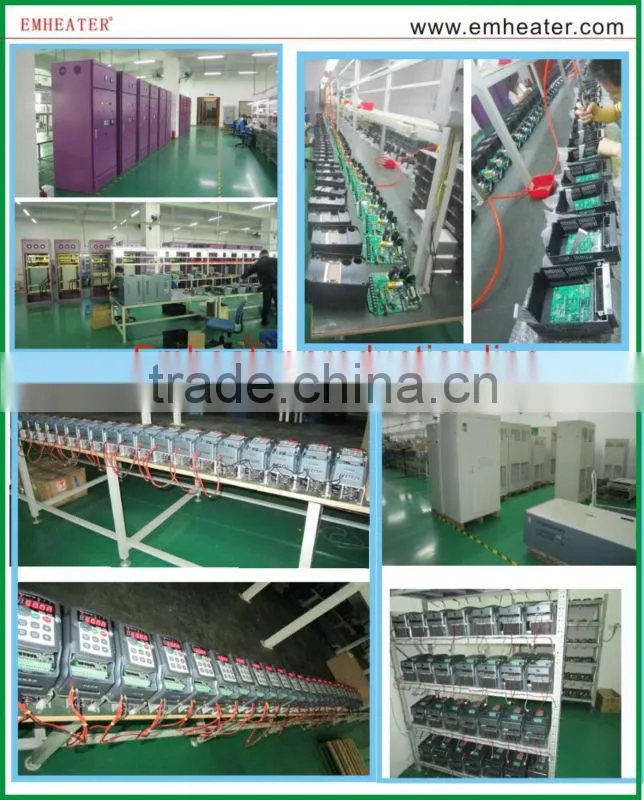

 Company Introduction:



We EMHEATER is a professional manufacturer of industrial automation products, we are always dedicated to frequency inverters, servo motor and drive, soft starter, EMI filter, harmonic wave AC choke, sine wave filter and brake unit and resistors. In the year of 2008, EMHEATER established “China EM Technology Limited” to cultivate overseas market.



380V vector control ac drive for ac variable motor frequency speed control 30kW 50hz 60hz (EM11 series)



380V vector control ac drive for ac variable motor frequency speed control 30kW 50hz 60hz (EM11 series)



380V vector control ac drive for ac variable motor frequency speed control 30kW 50hz 60hz (EM11 series)380V vector control ac drive for ac variable motor frequency speed control 30kW 50hz 60hz (EM11 series)

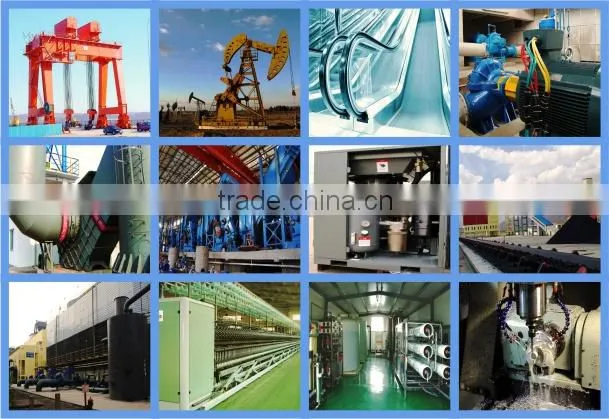

Application Fields:



Mechanics, electronics, metallurgy, mining, petrochemical, transportation, building materials, municipal, metal processing, textile, printing and dyeing, paper making, Injection machine, central air conditioning, numerical control machine tool, air-compressor, extruding machine, fan and pump, blower, injection machine, air conditioner for large buildings; wastewater treatment system; water supply system for large buildings; public water supply system and other industries and fields.



Knitting Machine, compressor, extruding machine, injection machine,electrical motor,braiding machine,pressure fan, forced draught blower, blower,blowing machine,blow molding machine,root’s blower,film blowing machine,cutterbar, cut-off machine,slitter,Cutting machine,conveyor,pump,grinder, crusher,glazing machine, polisher, polishing machine,laundry-drier,drying machine,ball crusher,ball grinding mill,drawing machine.



380V vector control ac drive for ac variable motor frequency speed control 30kW 50hz 60hz (EM11 series)

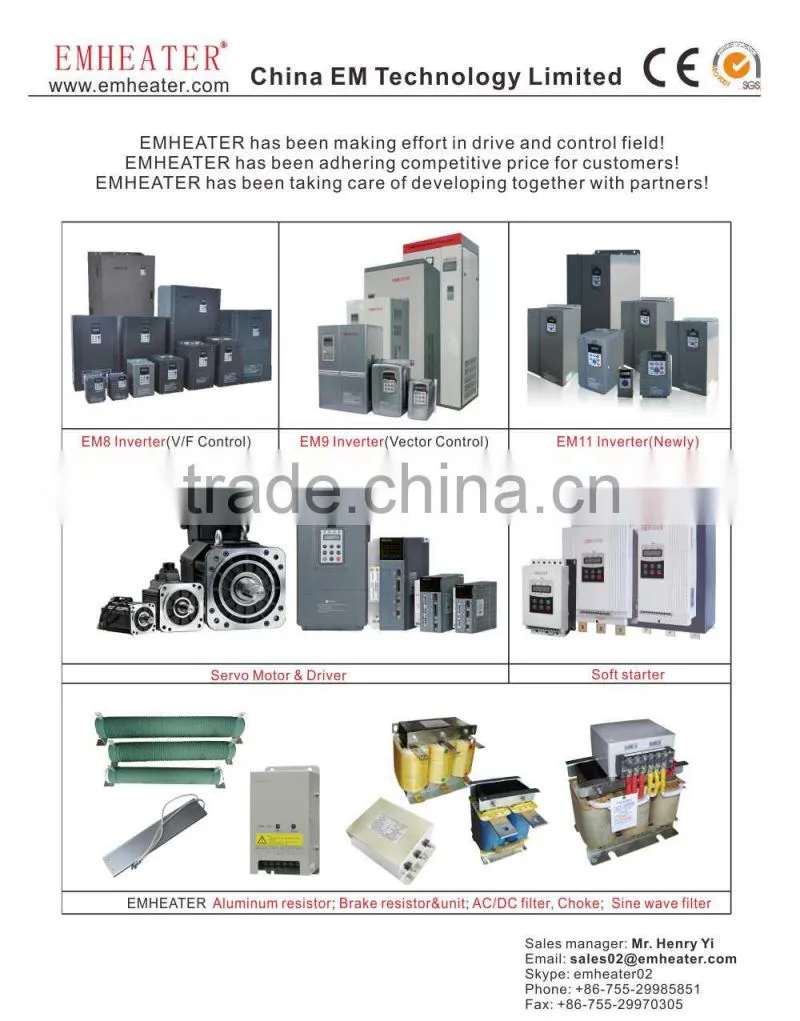

Whole Products Series:



380V vector control ac drive for ac variable motor frequency speed control 30kW 50hz 60hz (EM11 series)



380V vector control ac drive for ac variable motor frequency speed control 30kW 50hz 60hz (EM11 series)

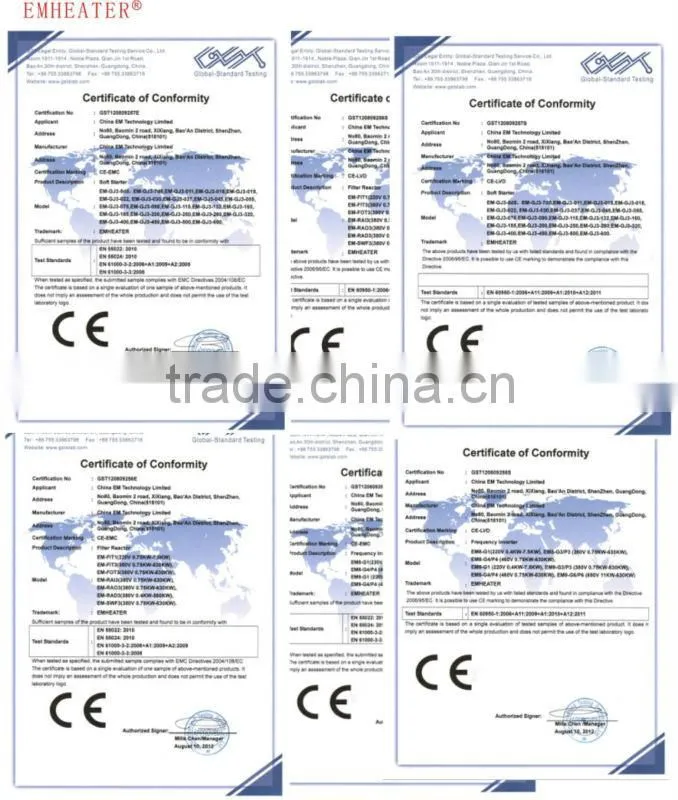

CE&SGS Approved EMHEATER high-performance products with 18 months warranty.

 Welcome customers to send us inquiry !
