315KW EMHEATER NEW High Performance 440V 380V 220V Three Phase Electrical Soft Start Motor Starter Tumbler Application

315KW EMHEATER NEW High Performance 440V 380V 220V Three Phase Electrical Soft Start Motor Starter Tumbler Application thumbnail-1
315KW EMHEATER NEW High Performance 440V 380V 220V Three Phase Electrical Soft Start Motor Starter Tumbler Application photo-1
US$ 150 - 1,900 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
EMHEATER
Model Number:
EM-GS3
Output Power:
Other, 5.5kw-600kw
Contact Supplier Request Quote Chat Now
Shenzhen EMHEATER Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EMHEATER
Model Number EM-GS3
Output Power Other, 5.5kw-600kw
Output Type Triple
Size As per product
Weight As per product
Input Voltage 380V-460V
Output Voltage 380V-460V
Type DC/AC Inverters
Output Frequency 0-600Hz
Output Current 11A-1200A

Specifications

Soft starter A new type start-up equipment;
Electric force and electronic techniques;
Computer technique and modern control.

440V 380V 220V three phase Soft Start Motor Starter  in Pulp, Paper and Packing

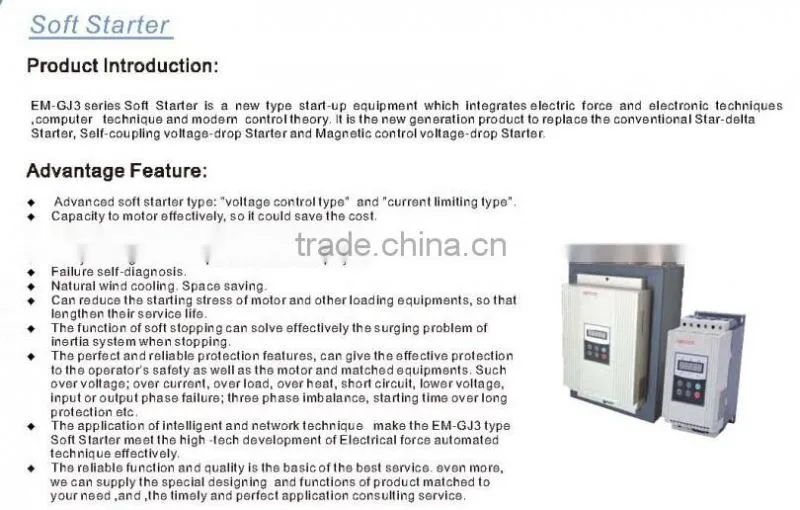

EM-GS3-series Soft  Starter  is  a  new  type  start-up  equipment  which  integrates electric  force  and  electronic  techniques  ,computer   technique and modern  control theory. It is the new generation product to replace the conventional Star-delta Starter, Self-coupling voltage-drop Starter and Magnetic control voltage-drop Starter.

1. The main feature of soft starter
Reliable quality
The computer simulation design.
SMT production process.
Good EMC performance.
The machine before delivery on the high temperature aging, vibration test.
Perfect and reliable system protection function
Protection of no voltage, less voltage and over voltage.
Protection of overheating and starting time too long.
Protection of Input phase lost, output phase lost and 3phase unbalance.
Protection of starting over current, running overload, and load short circuit protection.
Maintenance function
Fault self-diagnosis(short circuit, over voltage, less voltage, one phase grounded, motor overload, one phase lost,
motor blocked, and intelligent software can inspect drag system working state).
Combination of modular design, according to the fault display content, quick troubleshooting.
Independent intellectual property products

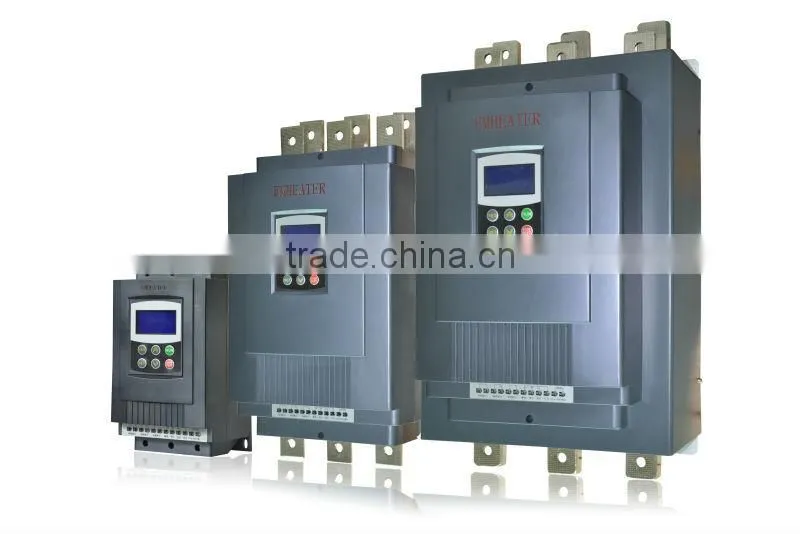

315KW EMHEATER NEW high performance 440V 380V 220V three phase electrical Soft Start Motor Starter Tumbler application Emheater Soft starter more information display:

315KW EMHEATER NEW high performance 440V 380V 220V three phase electrical Soft Start Motor Starter Tumbler application

315KW EMHEATER NEW high performance 440V 380V 220V three phase electrical Soft Start Motor Starter Tumbler application

315KW EMHEATER NEW high performance 440V 380V 220V three phase electrical Soft Start Motor Starter Tumbler application315KW EMHEATER NEW high performance 440V 380V 220V three phase electrical Soft Start Motor Starter Tumbler application315KW EMHEATER NEW high performance 440V 380V 220V three phase electrical Soft Start Motor Starter Tumbler application315KW EMHEATER NEW high performance 440V 380V 220V three phase electrical Soft Start Motor Starter Tumbler application



Emheater soft starter technical information



Item

Description

Input

Power

Supply

Input Voltage

Three-phase 220V/380V/480V AC

Frequency

50/60Hz

Adaptive Motor

Squirrel-cage three-phase asynchronous motor

Starting Times

It is recommended not to exceed 20 times per hour.

Control Mode

(1) Operation panel control;

(2) Operation panel + external control;

(3) External control;

(4) External control + COM control;

(5) Operation panel + external + COM control;

(6) Operation panel + COM control;

(7) COM control;

(8) No start or stop operation.

Start Mode

(1) Current-limiting start;

(2) Voltage ramp start;

(3) Kick start + current-limiting start;

(4) Kick start + voltage ramp start;

(5) Current ramp start;

(6) Voltage current-limiting double closed-loop start.

Stop Mode

(1) Soft stop;

(2) Free stop.

Protective Function

(1)Open loop protection for external instantaneous stop terminals;

(2) Over-heat protection for soft starter;

(3) Protection for too long starting time;

(4) Input open phase protection;

(5) Output open phase protection;

(6) Unbalanced three-phase protection;

(7) starting over current protection;

(8) Running overload protection;

(9) Under voltage protection for power voltage;

(10) Overvoltage protection for power voltage;

(11) Protection for fault parameter setting;

(12) Load short circuit protection;

(13) Auto restart or incorrect wiring protection;

(14)Incorrect wiring protection of external control stop terminals.

Ambient

Place to be used

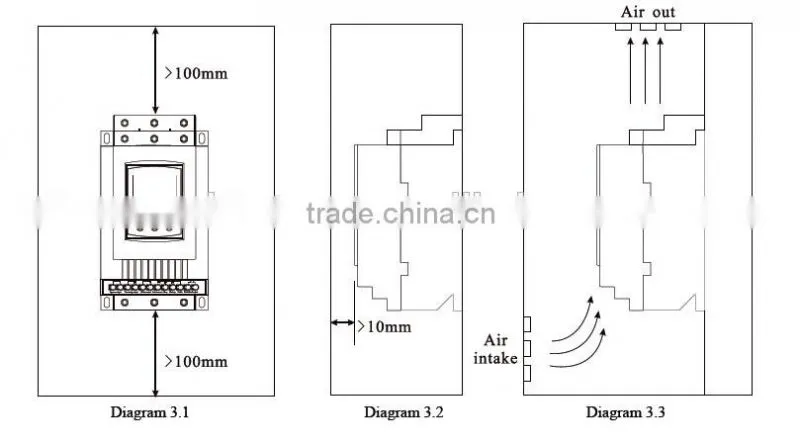

Indoor location with good ventilation free from corrosive gas and conductive dust.

Altitude

Below 3000M. It have to rise the rate power when the altitude is more than 3000M.

Temperature

-30 +55 oC

Humidity

90%RH without dew condensation.

Vibration

<0.5G

Structure

Protection Class

IP20

Cooling Pattern

Natural wind cooling.



Application

1.Applications for AC Soft Start Motor Controllers

General purpose soft start motor control applications where traditional across-the-line starting or wye-delta starting would typically be appropriate. Typical application types include:

  • Agitator
  • Air Compressor
  • Ball Mill
  • Centrifuge
  • Chiller
  • Conveyor
  • Crusher
  • Escalator
  • Fan (Low and High Inertia)
  • Feeder
  • Grinder
  • Hammer Mill
  • Lathe Machine
  • Mills (Flour, etc.)
  • Mixer (Unloaded or Loaded)
  • Pelletizer
  • Plastic and Textile Machines
  • Press (Flywheel)
  • Pump (Centrifugal)
  • Pump (Positive Displacement)
  • Rolling Mill
  • Saw (Band)
  • Saw (Circular)
  • Screen (Vibrating)
  • Transformer
  • Tumbler
  • Wood Chipper




2. Application

- Motor fan:use soft starter instead of conventional starter, to realize the smooth start.
- Compressor: The soft starter limit the startup current, reduce the abrasion and mechanical impact, reduce the heat
  of motor, prolong the working life, save the maintenance cost.
- Crusher: The block protection of soft starter prevent the motor being over burnt and hurt damaged come from mechanical
  fault and block.
- Transmission machine: soft startup and presetting slow movement realize smooth, gradual start, to avoid products
  movement and liquid overflow.
- Pump: the control of soft starter reduce the water hammer result from liquid impact, saving maintenance cost for system.
- Grinder: The soft start reduce the abrasion of wheels, lighten the maintenance cost and tiem.



 315KW EMHEATER NEW high performance 440V 380V 220V three phase electrical Soft Start Motor Starter Tumbler application

Should any more questions or requirement, just feel free to contact us.
