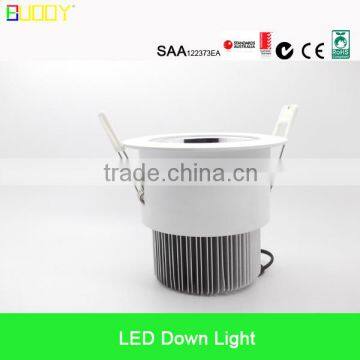

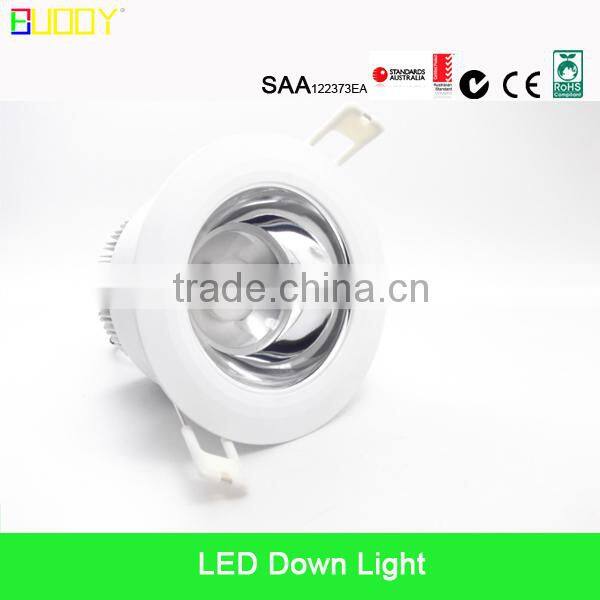

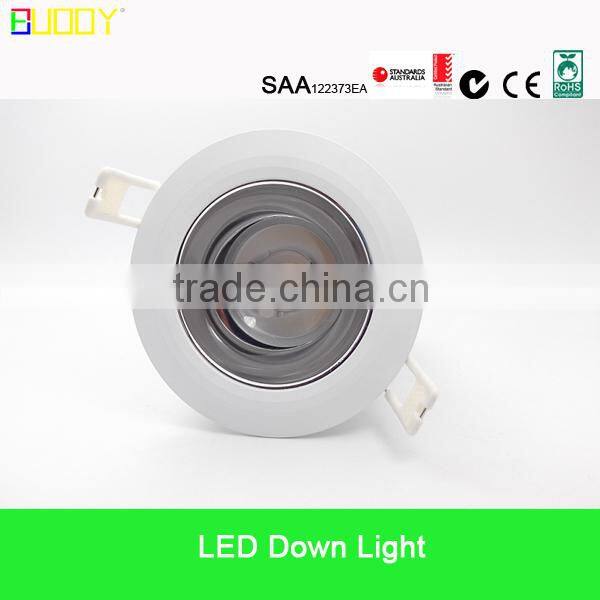

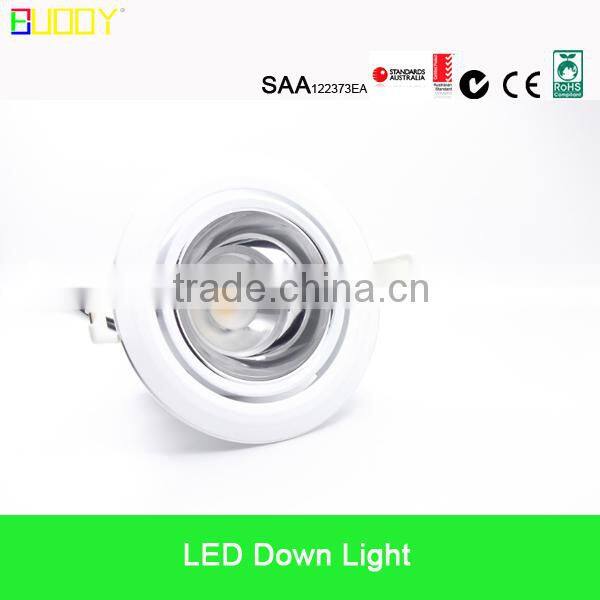

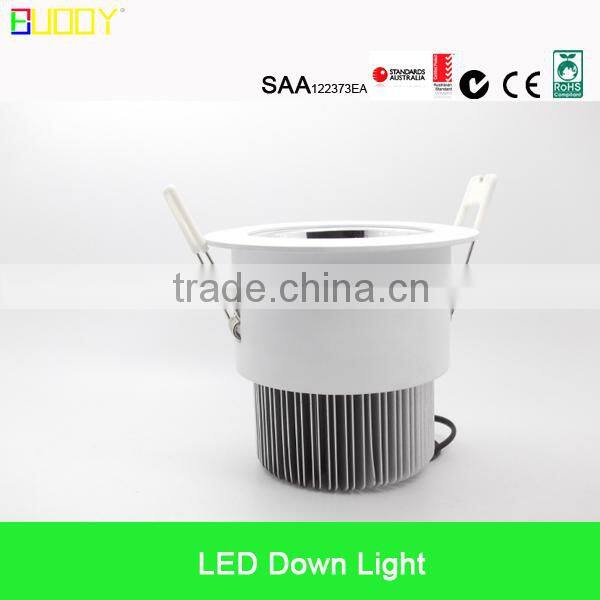

Help CenterPopular Design 15W COB LED Downlight Cutout 90mm With Lens, No Adjustable
Related Products
-
Hot Sales Waterproof IP65 Sharp COB LED Downlight ( Cutout: 142mm ) DimmableUS$ 30 - 50MOQ: 1 Piece -
2015 Hot Sales Sharp COB LED Downlight ( Cutout: 142mm ) DimmableUS$ 30 - 50MOQ: 1 Piece
-
2015 Hot Sales 40W Sharp COB LED Downlight ( Cutout: 142mm )US$ 30 - 50MOQ: 1 Piece
-
2015 Hot Sales 50W Sharp COB LED Downlight Deep Recessed HeadUS$ 30 - 50MOQ: 1 Piece
-
2015 HOT SALES Dimmable Sharp 36w Led Downlight( Cutout: 140mm ) Waterproof IP65US$ 30 - 50MOQ: 1 Piece
Trim Aluminum alloy
Trim Finish White
Heat Sink Aluminum extrusion
Beam Angle 30°
Light Source Sharp
Input Voltage 220-240V AC, 50-60Hz ( non dimmable, come with Philips driver )
200-245 V AC, 50-60Hz ( leading edge, trailing edge and universal dimming )
PF >0.9
Input Power 15W (nominal)
LED Output Power 13W (nominal)
Luminous Flux 1200lm(5000K), 1175lm(4000K), 1145lm(3000K)
System Efficiency (lm/W) 80 (5000K),79 (4000K), 78 (3000K)
LED working Voltage 36V DC (nominal)
LED working Current 320mA DC (constant current)
CRI 80+
Operating Temp. Range -20 to +40 ℃
IP Rating IP20,Indoor use only
Storage conditions Cool and dry place.
Driver Exterior
Maintenance Of Lumens 40,000 hours at 25 ℃
Quality warranty 5years ( With Philips driver )
Features:
Popular design, deep recessed with lens! Hot product!!! No adjustable
1)Model: SL090-015
2)Power:15W ( SHARP COB LED INSIDE)
3)Size: embedded installation 90mm(φ100 x 90 mm)
4)Input Voltage: AC200-265V( dimmable driver), AC100-265V (non dimmable driver)
5)CRI: 85
6)Color Temperature: 2700K-5000K
7)Lumen output: 1200Lm

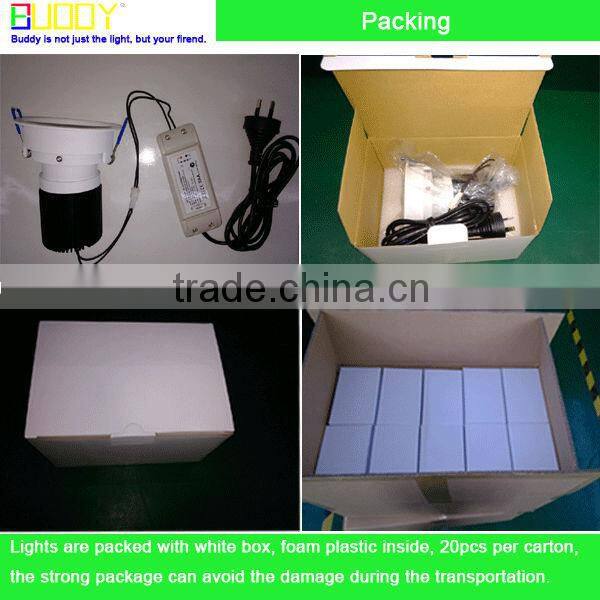

8) Packing: 20pcs in one carton, GW: 12KG
9)Lifespan:>50,000hours
LED Downlight Instructions
Thank you for purchasing your new LED downlight!
Please take the time to read and understand the instruction sheet below. Failure to do so may void warranty.
Safety Instructions:
All electrical installations must be carried out by a qualified electrical contractor.
Ensure all mains power is off before commencing any electrical installations.
This product is NOT suitable for damp or explosive environments.
Modification to any part of this product will void warranty.
How to install:
The LED downlight shall be installed in accordance with local electrical standards.
The LED downlight shall be installed in locations and in conditions as described in Figure 1 and Table 1.
Please make sure all electricity is switched of at the main switch board before any electrical works are to commence.
Cut out the hole according to the downlight's specifications.
The LED driver is supplied with an approved flex and plug.
For easy maintenance the use of plug base sockets in the ceiling is recommended.
If you are wanting to hard wire the LED drivers, please remove the supplied flex and plug from the LED driver.
When connecting the LED downlight to the LED driver, please ensure the connecting plug is securely pushed in and the connection is not loose.
Important note: never attempt to connect the LED downlight whilst the LED driver is on/live. Doing so will cause irreparable damage to the LED.
Install the fitting into the ceiling making sure the fitting is securely located.
