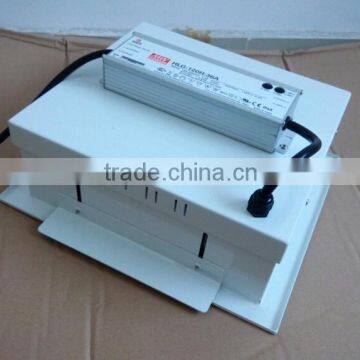

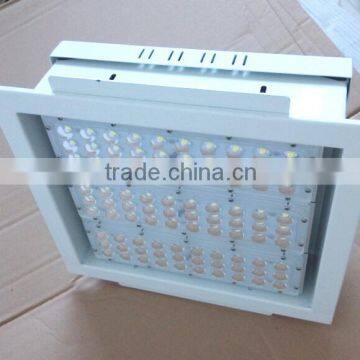

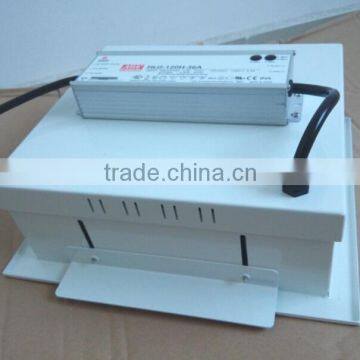

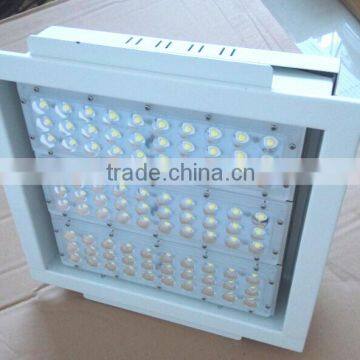

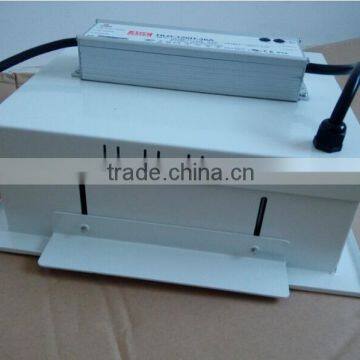

Gas Station LED Canopy Lights With Meanwell LED Driver 3 Years Warranty High Quality CE ROHS IP65
Parameters:
60watt LED Canopy Light Retrofit Kit Specifications:
| Optical Specs | GL51*60 | GL51*120 |
| LED Spec & Quantity | 60X1W (White) LEDs | 120X1W (White) LEDs |
| LED Color Temperature | 5000K | 5000K |
| Luminaire Efficiency | >108.5 Lumens/W | >95.5 Lumens/W |
| LED Efficiency | 135 Lumens/W | 135 Lumens/W |
| Initial Delivered Lumen Tj = 25°C | 7575 Lumens with Improved Light Distribution | 11,000 Lumens with Improved Light Distribution |
| Illuminance Distribution at 10 ft | 54.3 FC (Single Unit) | 64.1 FC (single Unit) |
| Color Rendering Index | Ra > 80 | Ra > 80 |
| Beam Angle | 90° | 120° |
| Electrical Specs | CGL51*60 | GL51*120 |
| Input Voltage & Frequency | AC 100-277 V, 50-60 Hz | AC 100-277 V, 50-60 Hz |
| Power Factor | >0.95 @ 277 VAC | >.0.88 @ 277 VAC |
| Input Current | <0.67 A (120 V) | <1.39 A (120 V) |
| Total Power Consumption | <70 W | <130W |
| Power Supply Efficiency | >90% | >91% |
| Other Specs | GL51*60 | GL51*120 |
| Operating Temperature & Humidity | -30 to 50°C / 10-90% RH | -30 to 50°C / 10-90% RH |
| Storage Temperature | -40~85°C | -40~85°C |
| Dimensions | L 330 X W 230 X D 150mm |
L 330 X W 400 X D 150mm |
| Net Weight | 4.7kg | 8.4kg |
| IP Rating | IP65 | IP65 |
| Lifespan | >50,000 Hrs. (L70 Predicted life of more than 200,000 hours) | >50,000 Hrs. (L70 Predicted life of more than 200,000 hours) |
| Warranty | 5 Years | 5 Years |
Specifications
1. LED gas station canopy lights
2. TUV UL CE RoHS
3. Meanwell LED Driver, Bridgelux 45mil chip high power LED, 110LM/W
4. Anodized Aluminum, good heat dissipation
5. IP65 waterproof, 5 years warranty
Application
1, Home, Hotel, Hospital
2, Hall, Corridor
3, Airport, Train station
4, Gas station
Installation guide
( recessed installation)
Why choose BUDDY LIGHTING
1, Specialized design: We has specialized engineers providing consultation and solution according to customer's individual case and requirements, and providing optimized design as relevant standards.
2. We owned the best laboratory to test our products. There are rounded advanced machines for test, including the high-temperature test, low-temperature test, waterproof test, dustproof test, ageing test, shock-resistant test, salt mist test.
3, CE,FCC, TUV, UL certification. Our LED Street light reaches IP65 degree
4, Most important of all, we can supply super aftersales service, long term business must be build on a good service and good quality products
BUDDY LIGHTING IS NOT JUST THE LIGHTING, BUT ALSO YOUR FRIEND!
a,) Delivery time: 7-15 days
b,) Payment terms: TT in Advance
c,) MOQ: 1 piece
d,) Shipping Port: Shenzhen, China mainland
e,) Supply OEM service
FAQ
1) Sample Policy
Samples are available in our company, we know only after sample order; our cooperation can go a further step. But we normally do not send free samples. What we can guarantee is that we can refund the samples cost accordingly from the formal orders. And we send samples by DHL, FedEx, TNT or UPS; shipping with customers' own account is acceptable.
2) Main Market
We are selling more to EU and North America because the markets have high quality standard for LED products. The rate is up to 80-90%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American Asian regions.
3) Main LEDs for our LED products
For high power LED luminaries we mainly use Bridgelux LEDs, Cree, we also use SHARP COB LEDs, Epistar chip SMD5050.
4) Lead time
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes time if the product is not standard.
5) Warranty Service
We have 1,2,3 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by BGW engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
6) OEM&ODM
BGW has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaries as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won't disclose or sell customer unique designs or jointly developed products to another third party.
BUDDY LIGHTING is a professional LED lighting manufacturer in Shenzhen since 2009.
Our main products are LED downlights, LED strips light, LED high bay light, LED gas station lamp, LED tube, panel light, bulb and flood light.
