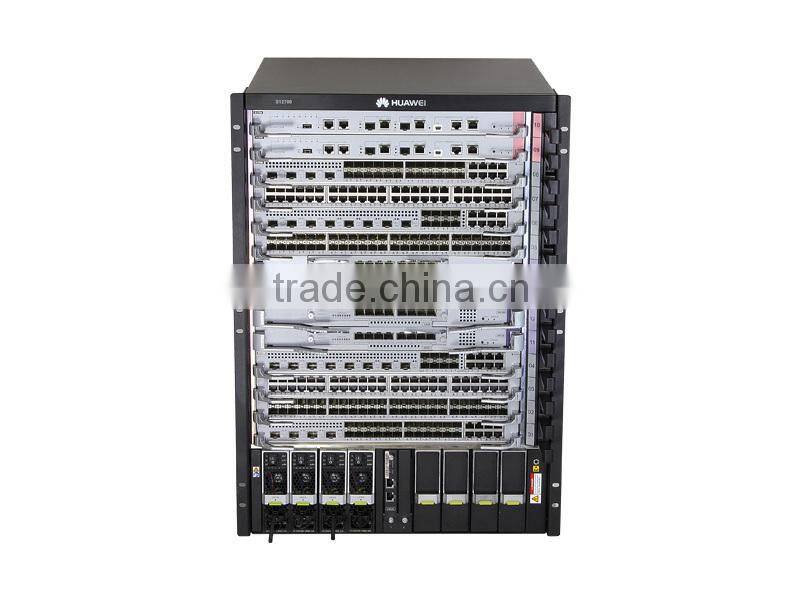

Huawei S12700 Series Agile Switches Software-Defined Networking S12708 V200R006

Huawei S12700 Series Agile Switches Software-Defined Networking S12708 V200R006 thumbnail-1
Huawei S12700 Series Agile Switches Software-Defined Networking S12708 V200R006 photo-1
US$ 1,000 - 2,000 MOQ: 1 Carton
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, ≤ 8
Transmission Rate:
10/100/1000Mbps
Contact Supplier Request Quote Chat Now
Xueyou Union (Wuhan) Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, ≤ 8
Transmission Rate 10/100/1000Mbps
Function QoS, SNMP, Stackable
Communication Mode Other, Full-Duplex & Half-Duplex
Certification CE
Switch Capacity 48v
Brand Name huawei
Model Number S12708 V200R006
Place of Origin Guangdong, China

S12700 Series Agile Switches

High-capacity core switches for next-generation campus networks. Fully programmable, SDN-capable architecture and specialized ENP processor enable easy customization of features and functions, and smooth migration to Software-Defined Networking.

Based on Huawei’s Virtual Routing Platform (VRP), the S12700 combines L2/L3 switching with rich network services including MPLS VPN, cloud desktop, video conferencing, and IPv6 support.

Non-stop forwarding architecture, CSS2 switch fabric clustering, and in-service software upgrades provide scalable, high-performance switching with carrier-grade reliability.
huawei S12700 Series Agile Switches Software-Defined Networking S12708 V200R006

Features

Build a converged enterprise network and provide new services faster with Huawei’s SDN-ready Agile Switch

  • Huawei’s Ethernet Network Processor (ENP) enables programmable packet parsing, algorithm searching, forwarding behaviors, and performance management features including packet processing, so new services can be provisioned without replacing hardware
  • ŸNative Access Controllers (ACs) let you build a wireless network quickly, without new hardware — up to 4,096 Access Points (APs) and 65,536 users per S12700 chassis
  • ŸSuper Virtual Fabric (SVF) virtualizes physical switches and APs into a “super switch,” adding flexibility and simplifying network management
  • Huawei’s unique Packet Conservation Algorithm for Internet (iPCA) technology uses marks added to service packets to actively monitor network quality, detecting temporary interruptions and faulty ports within seconds

  • Specifications

    Specifications

    S12708

    S12712

    Switching Capacity

    12.32/27.04 Tbit/s

    17.44/37.28 Tbit/s

    Packet Forwarding Rate

    6,240/9,120 Mpps

    9,120/12,960 Mpps

    MPU Slots

    2

    2

    SFU Slots

    4

    4

    Service Card Slots

    8

    12

    CSS2

    1+N MPU backup in a cluster

    Up to 1.92 Tbit/s cluster bandwidth, 4 us inter-chassis transmission latency

    Wireless Network Management

    Native AC

    AP access control, AP region management, and AP profile management

    Radio profile management, unified static configuration, and centralized dynamic management

    Basic WLAN services, QoS, security, and user management

    User Management

    Unified user management

    802.1x, MAC, and Portal authentication

    Charging based on traffic volume and online duration

    User authorization based on user groups, domains, and time ranges

    iPCA

    Adds marks on service packets in order to measure the number of lost packets and packet loss ratios in real time with zero payload

    Measures the number of lost packets and packet loss ratios at the network and device levels on Layer 2 and Layer 3 networks

    SVF

    Up to 4K clients (access switches and APs) virtualized into a single device

    2-level AS structure

    Unified management on Huawei and non-Huawei devices
