Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > LS VISION Panasonic Color ir Wdr Cctv Mini Cam

LS VISION Panasonic Color ir Wdr Cctv Mini Cam

LS VISION Panasonic Color ir Wdr Cctv Mini Cam thumbnail-1
LS VISION Panasonic Color ir Wdr Cctv Mini Cam photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LS VISION
Model Number:
LS-VSDI301PH
Type:
Digital Camera
Contact Supplier Request Quote Chat Now
Shenzhen LS Vision Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LS VISION
Model Number LS-VSDI301PH
Type Digital Camera
Style Mini Camera
Sensor Other, CMOS, 1/3" Panasonic COMS
Technology Pinhole
Special Features Other, 1080p, mini camera



Product Description



Key Features

      1/3" Panasonic CMOS (MN34041PL)
        FULL HD Resolution
       1080 (1920 x 1080p) @ 30fps
       TV out (BNC) with NTSC/PAL selectable
       2D+3D DNR, D-WDR, HLC, OSD
       Dual Output-Megapixel HD CCTV (BNC)&SD CCTV (BNC)Out
       3.6mm board lens

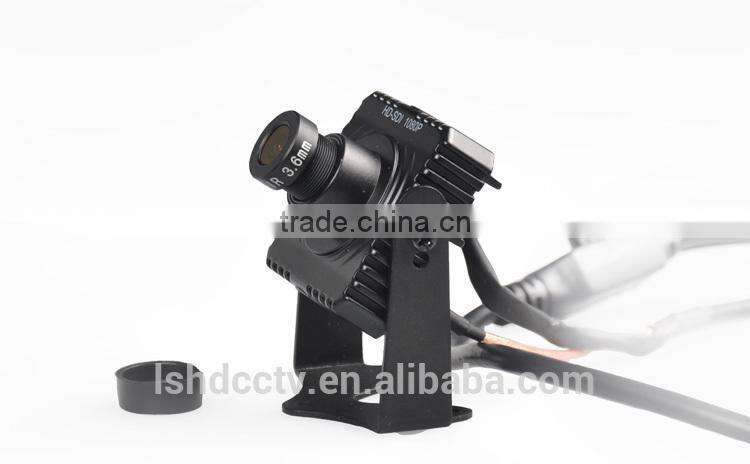

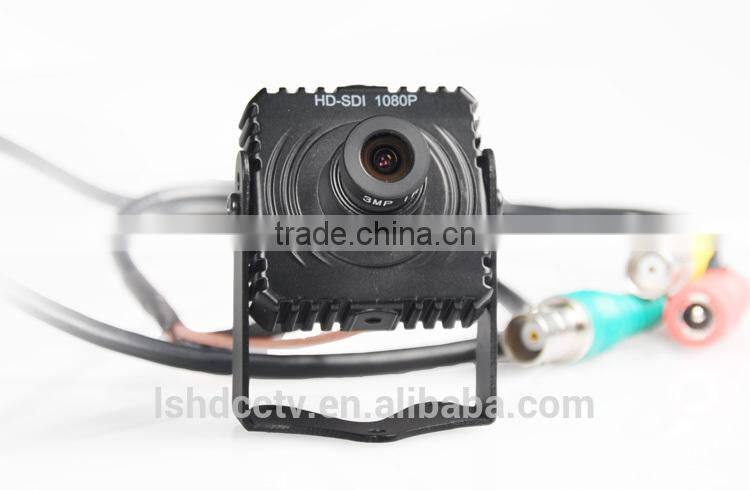

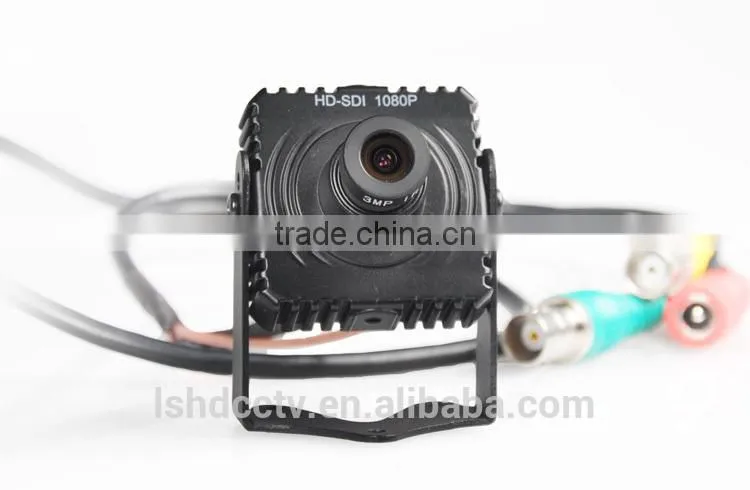

Detail display

LS VISION panasonic color ir wdr cctv mini cam
LS VISION panasonic color ir wdr cctv mini cam
Specifications


                  Model NO.

LS-VSDI301PH

                                        Camera

Image Sensor

1/3" Panasonic COMS (MN34041PL)

DSP

Eyenix (EN773A)

Image Resolution

PAL: 25fps@1080P(1920×1080); NTSC: 30fps@1080P(1920×1080)

Effective Pixels

1920(H) x 1080 (V)

TV System

PAL/NTSC

Electronic Shutter

Auto / Manual / Flicker

Sync System

Internal

Usable Illumination

Color: 1.0Lux/F1. 4, B/W: 0.5Lux /F1. 4; 0Lux /F1.4(IR on)

S/N Ratio

≥50dB

Scanning System

Progressive Scan

Video Output Mode

1CH HD-SDI High-definition Video (1080P or 720P)

Video Output Level

HD-SDI /(1.0 Vp-p 75Ω,Composite)

Lens

Focus Length

3.6mm megapixels board lens

Focus Control

Manual

Lens Type

Manual

Pixels

3M Pixels

Auto Iris Support

NO

Camera Features

Day/Night

Auto (ICR) / Color / B&W

OSD Menu Language

English,Simple Chinese, Traditional Chinese, Japanese, Korea

Wide Dynamic Range

WDR

Defog

YES

Backlight Compensation

YES

BLC

YES

White Balance

AUTO / Manual

Gain Control

Auto / Manual

Noise Reduction

Smart NR

Privacy Masking

8 Areas

Digital Zoom

X8

Sense Up

X8

Picture Adjustment

YES, Mirror / Flip / Brightness / Sharpness

UTC Support

NO

General

Vandalproof Housing

NO

Lens Angle Adjustment

YES, Bracket Built-in

Dual Voltage

NO

IR Cut Filter

YES

Heater

NO

Operation    Temperature

-10°C~ +50°CRH95% Max

Storage Temperature

-20°C~ +60°CRH95% Max

Power Source

DC12V±10%, 500mA

Dimension

39*39mm

Weight

50g


Application


LS VISION panasonic color ir wdr cctv mini cam

Our Services

1. One year quality guarantee
2. OEM service to meet all your need.
3. Popular model will be suggested,keep our customer updated for the information about the products..
4. 7*24 Technical support
NOTE: The RMA code will be given with the response email. Return shipping charges will be the buyer`s responsibility.



   Customers all over the world



      Customers Feedback & Product Certification                                               LS VISION panasonic color ir wdr cctv mini cam


   Trading Process

LS VISION panasonic color ir wdr cctv mini cam

Company Information

Why LS VISION will be your first choice in the market?



1.Shenzhen LS Vision Technology Co., Ltd., established with the purpose of serving the house ware with professional quality products.
2.We have more than years export experience with a turnover more than 16 million US dollars.
3.We win a high reputation with our great ideas of creation and High quality products. LS VISION has exported our products all around the world, like USA, European countries.
4.We are also OEM&ODM manufacturer.
5.We own a professional engineering team and with our own factories to service different need of customers.
6.We believe with the permanent quality and reasonable price and excellent service, we are devoting to built pleasant business relationship with customers from all over the world. LS Vision Technology will be your first choice in the market.

Packaging & Shipping

1.Packaging Details:CTN

2.Shipping Details:dhl, fedex, ups
3.Payment Terms: Paypal , Western Union , T/T

4.Delivery Time:Within 7 working days
