LS VISION Ptz/high Speed Dome Rs485 Protocol High Speed Video Camera Ptz Demo Camera

LS VISION Ptz/high Speed Dome Rs485 Protocol High Speed Video Camera Ptz Demo Camera thumbnail-1
LS VISION Ptz/high Speed Dome Rs485 Protocol High Speed Video Camera Ptz Demo Camera photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LS VISION
Model Number:
LS-IPT6206AT
Type:
Digital Camera
Contact Supplier Request Quote Chat Now
Shenzhen LS Vision Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LS VISION
Model Number LS-IPT6206AT
Type Digital Camera
Style Dome Camera
Sensor CMOS
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof

Specifications

LS VISION ptz/high speed dome rs485 protocol high speed video camera ptz demo camera
18x optical zoom ptz ip camera



Product Description

   Key Features:



        1/2.8”Progressive Scan CMOS
        20x optical zoom
        2Mp high resolution
        3D-DNR
       180m IR range
       IP66 rating
       Auto tracking

Detail display

LS VISION ptz/high speed dome rs485 protocol high speed video camera ptz demo camera
LS VISION ptz/high speed dome rs485 protocol high speed video camera ptz demo camera
LS VISION ptz/high speed dome rs485 protocol high speed video camera ptz demo camera
LS VISION ptz/high speed dome rs485 protocol high speed video camera ptz demo camera


Specifications


  Model NO.

 LS-IPT6206AT

Effective Pixels

2.0M Pixel

Zoom

Optical zoom:10X

Focal Length

f=4.7-94.0mm

Aperture Range

F1.6-F3.5

Day & Night

Auto/Day/Night/Ext

Focus Mode

Auto /Manual  / One Push

S/N Ratio

>5 0 dB

BLC

ON/OFF



White Balance



Auto / Manual  /Indoor /Outdoor/One Push



Shutter  T ime

1/ 1 -1/ 6 0,000s ec

AGC

Color:0.5lux  B/W:0.1 lux

Color DSS:0.002lux  B/W DSS:0.001 lux

Min.illumination

NO

WDR

Support

Video Output

HD: digital(LVDS)

Analog SD:VBS(without WDR)

IR Led

8  Germany  OSRAM  array  IR  leds

IR Range

5 0m

IR Action Mode

Auto/Manual/ Camera

IR Led Power

20 W

Pan Range

360° endless

Pan Speed

Pan Manual Speed: 0.01°- 360 °/s,
Pan Preset Speed:  36 0°/s

Tilt Range

-10°-90° (Auto Flip )

Tilt Speed

Tilt Manual Speed: 0.1°- 12 0°/s,
Tilt Preset Speed: 12 0°/s

Number of Preset

256

Patrol

8 patrols, up to 32 presets per patrol

Auto Scan

8 scans with settable left and right boundaries

Pattern

4 patterns,  up to   500 instructions per pattern

OSD Menu

Graphical menu

VAL

Support

Auto Tracking

Support  ( Optional )

Quickly Installation

Support

Wiper

Standard Configuration ( Optional )

Power Box

Optional

Power Supply

DC12V+-10%

Working  Temperature /Humidity

-35°C-+55°C

90% or less(No Condensing )

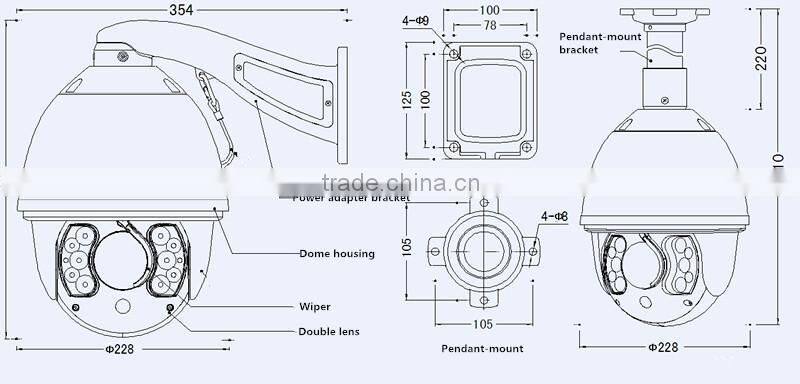

How to install
