LS VISION 4K Ptz Camera, 1080p Full hd Audio&Ip Ptz Camera With Tracking

LS VISION 4K Ptz Camera, 1080p Full hd Audio&Ip Ptz Camera With Tracking thumbnail-1
LS VISION 4K Ptz Camera, 1080p Full hd Audio&Ip Ptz Camera With Tracking thumbnail-2
LS VISION 4K Ptz Camera, 1080p Full hd Audio&Ip Ptz Camera With Tracking thumbnail-3
LS VISION 4K Ptz Camera, 1080p Full hd Audio&Ip Ptz Camera With Tracking thumbnail-4
LS VISION 4K Ptz Camera, 1080p Full hd Audio&Ip Ptz Camera With Tracking photo-1
LS VISION 4K Ptz Camera, 1080p Full hd Audio&Ip Ptz Camera With Tracking photo-2
LS VISION 4K Ptz Camera, 1080p Full hd Audio&Ip Ptz Camera With Tracking photo-3
LS VISION 4K Ptz Camera, 1080p Full hd Audio&Ip Ptz Camera With Tracking photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-FC84WTH-H20B
Contact Supplier Request Quote Chat Now
Shenzhen LS Vision Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LS VISION
Model Number LS-FC84WTH-H20B
Type Digital Camera
Style Dome Camera
Sensor Other, CMOS, CMOS
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof
Product Description

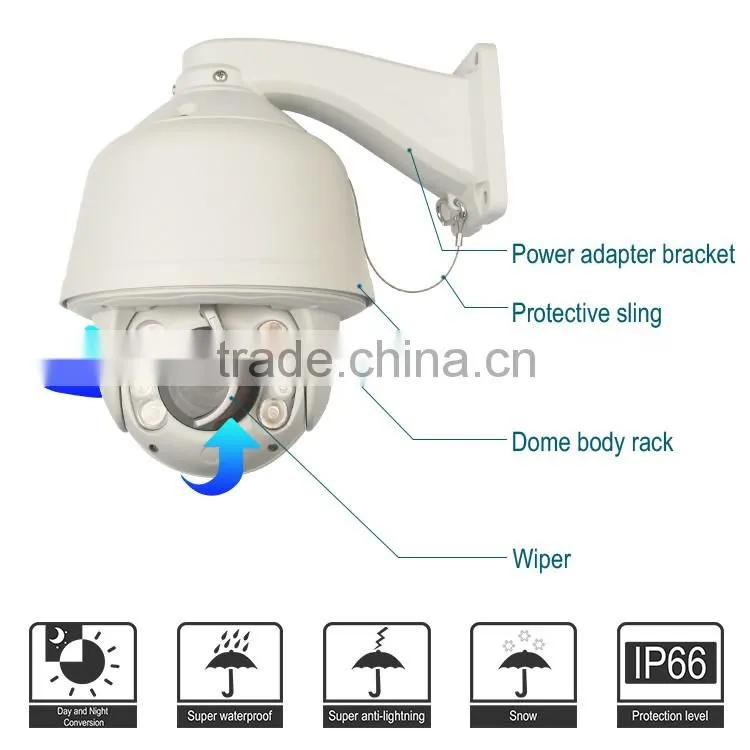

Key Features:


1/2.8” Exmor CMOS Sensor
20x optical zoom
2Mp high resolution Chinese camera
DNR(2D&3D)
WDR

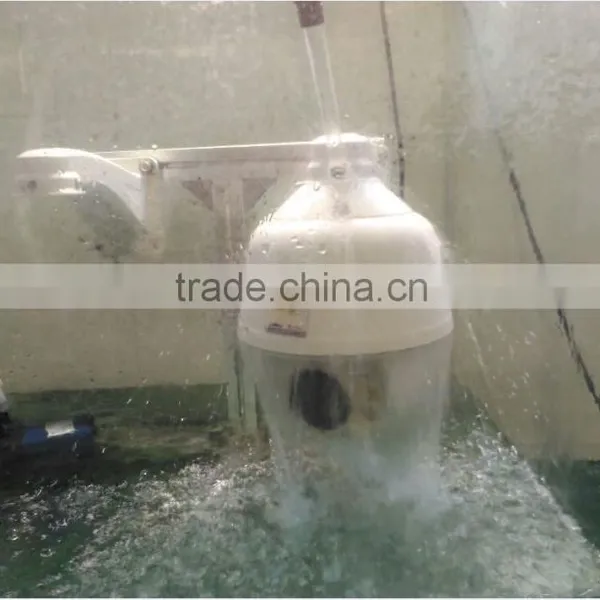

IP66 rating
Wiper
AUTO TRACKING

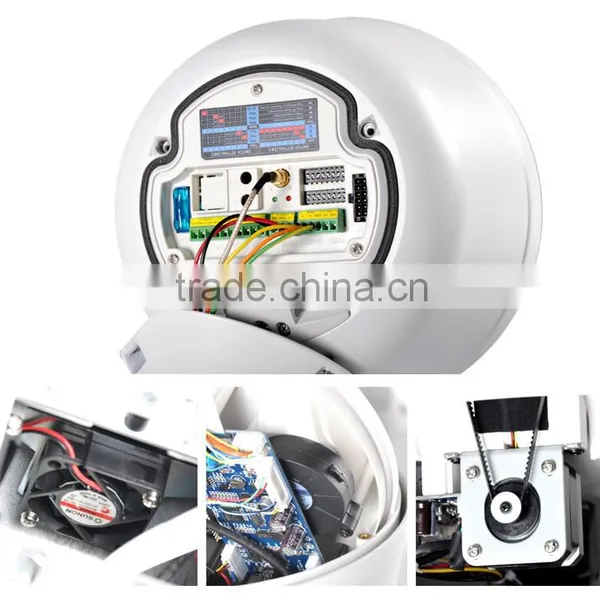

Detailed Images

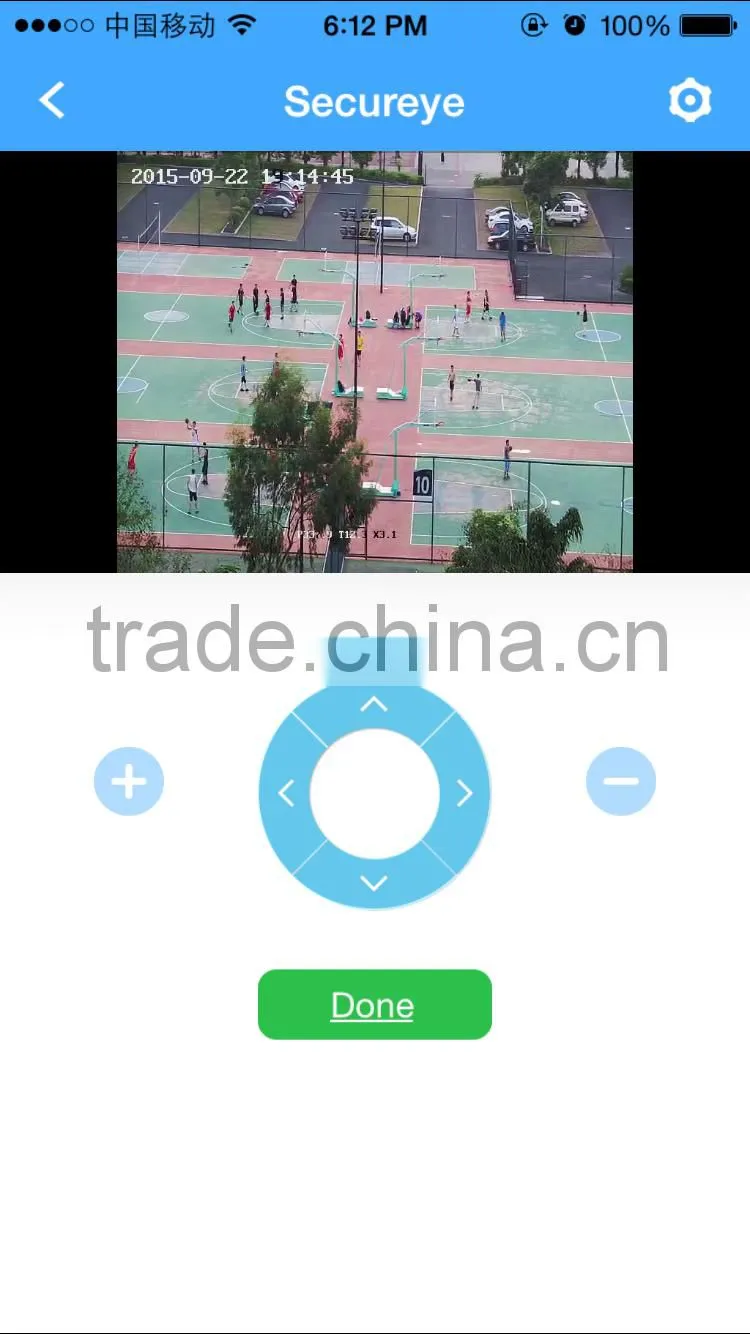

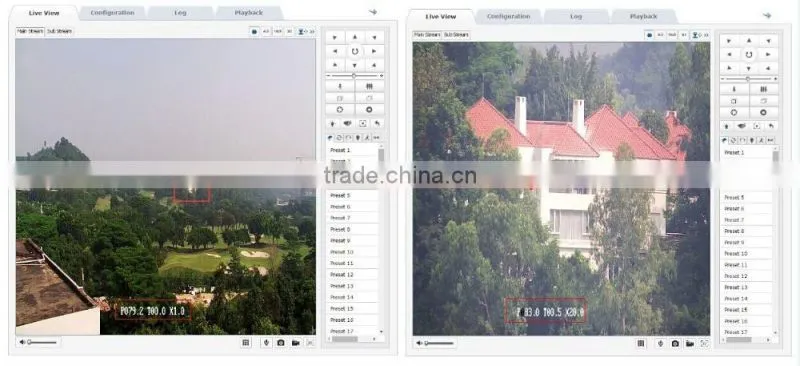

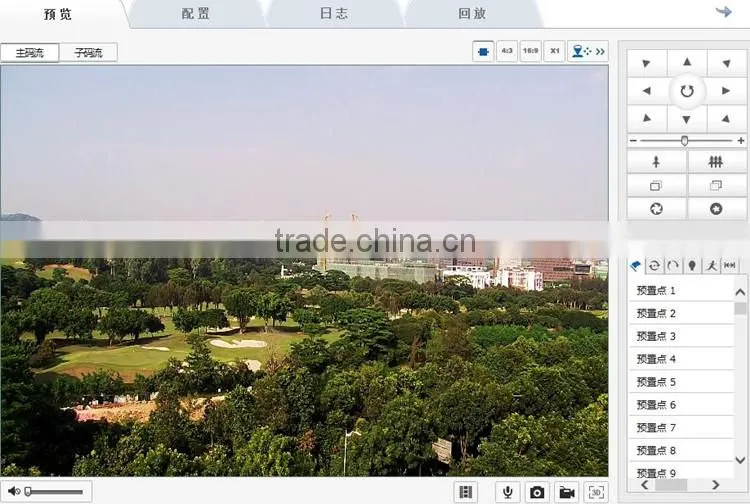

IE INTERFACE Image

Packing & Delivery

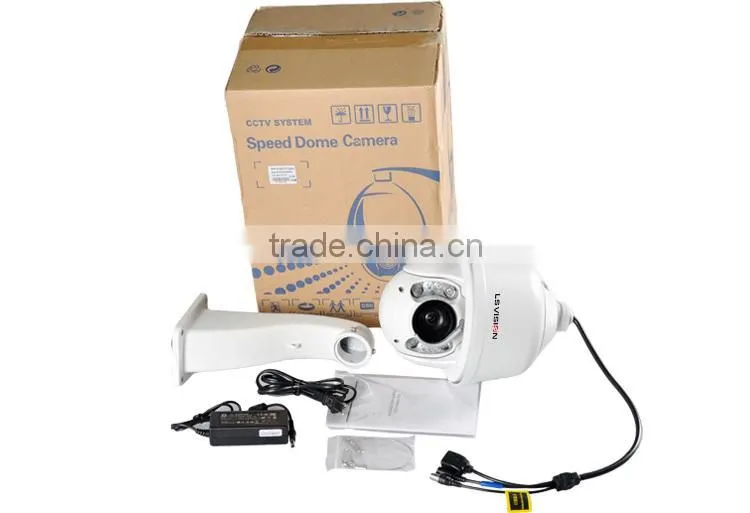

Packing Box


PTZ Details Feedback

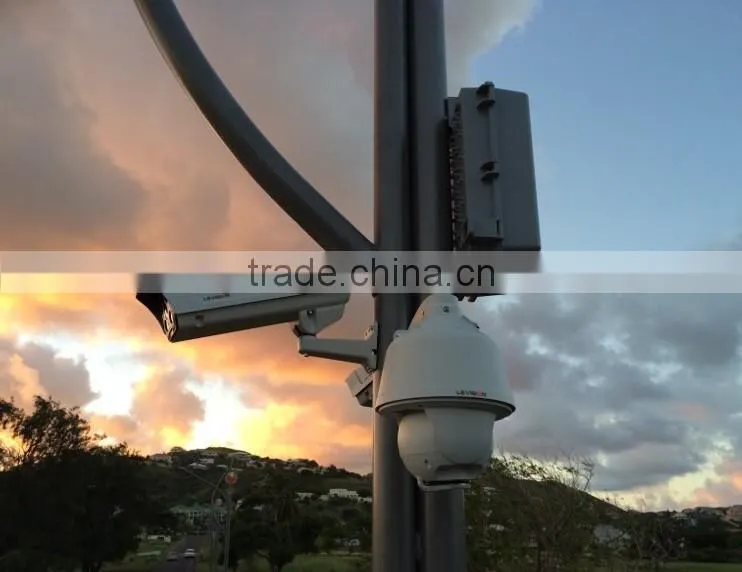

2MP HD IP PTZ Case Study

LS VISION Cameras are installed at the Raliway Station, both indoor and outdoor surveillance.
The well-designed hardware and good quality chipset makes our camera working at the tough environment -40 degree to 70 degree. Friendly operations do save a lot time for system setup.

He said:
"I got another 2 contracts today :)
items good…everybody doing advertisement each others :)
i don’t do anything…seller happy..buyer happy..user happy"

PTZ Specification
Model NO.
LS-FC84WTH-H20B
Media Sensor
1/2.8”Progressive Scan CMOS
Effective Pixels
1920*1080
Optical Zoom
20X
Focal Length
f=4.7-94mm
Aperture Range
F1.6-F3.5
Angle of View
61.4º-2.9º(Wide-Tele)
Day&Night
IR cut filter with auto switch
Focus Mode
Auto /Manual
S/N Ratio
>52dB
BLC
ON/OFF
White Balance
Auto / Manual
Audio Compression
G.711a/G.711u/RAW_PCM
Shutter Time
1/1s-1/30,000s
AGC
Auto/Manual
Stream
Dual-stream
Min.illumination
Color:0.05Lux@(F1.6,AGC ON)

B/W: 0.01Lux@(F1.6, AGC on )
Alarm Trigger
Motion detection, tampering alarm, network disconnect, storage exception
Network
1 RJ45 10M/100M adaptive Ethernet port
Frame Rate
50Hz: 25 fps (1920×1080), 25 fps (1280×720)

60Hz: 30 fps (1920×1080), 30 fps (1280×720)
Dual Stream
Support
Security Measures
Password protection, multiuser access control
Protocols
TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、

PPPOE、NTP、UPNP、SNMP、FTP、802.1x、QoS、

HTTPS、IPv6（SIP、SRTP）、ONVIF
Interface
1 network interface,1 power input
Operating Conditions
-40℃ ~ 60℃,humidty less than 95%
IR Leds
8 high power array IR leds
IR Range
120m
IR Action Mode
Auto/Manual/Camera
IR Led Power
18W
Pan Range
360° endless
Pan Speed
Pan Manual Speed: 0.01°-120°/s,

Pan Preset Speed: 220°/s
Tilt Range
-5°-90° (Auto Flip )
Tilt Speed
Tilt Manual Speed: 0.1°-120°/s,
Tilt Preset Speed:120°/s
Number of Preset
256
Patrol
8 patrols, up to 32 presets per patrol
Auto Scan
8 scans with settable left and right boundaries
Pattern
4 patterns, up to 500 instructions per pattern
OSD Menu
English / Chinese
VAL
Support
Wiper
Standard Configuration
Power Box
Optional
Power Supply
DC12V+-10%
Power
Consumption
38W
Working
Temperature
/Humidity
-35°C-+55°C
90% or less(No Condensing)
Protection Level
IP66 standard
Level 2 lightning protection, 4000V surge protection
Mounting
Various mounting modes
option:wall-mount,pendant-mount
Weight(approx.)
5.8kg
Accessories
Wall-mount bracket,Power adapter(DC12v)

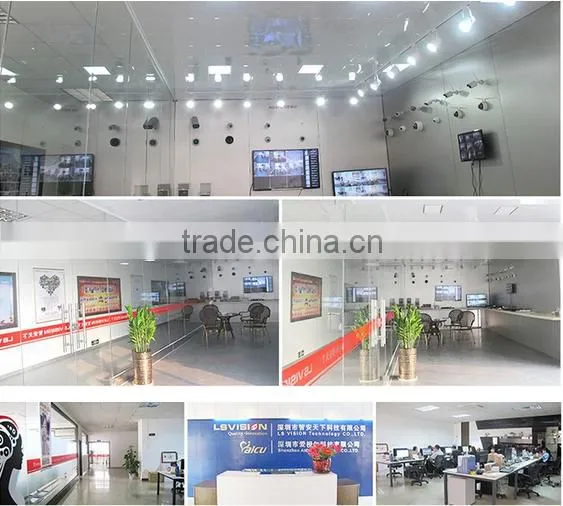

Our Company
New Product

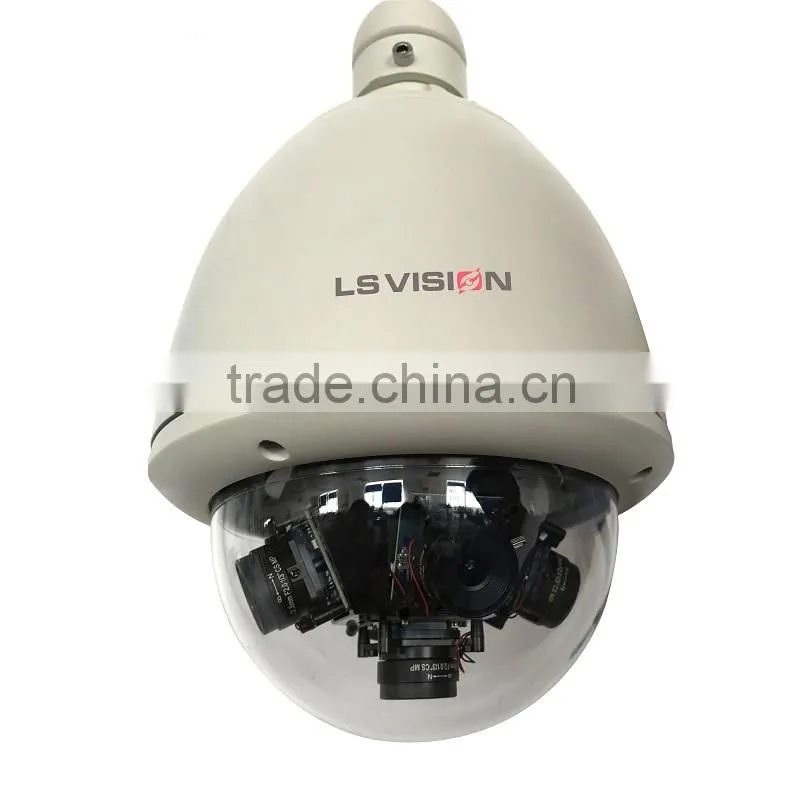

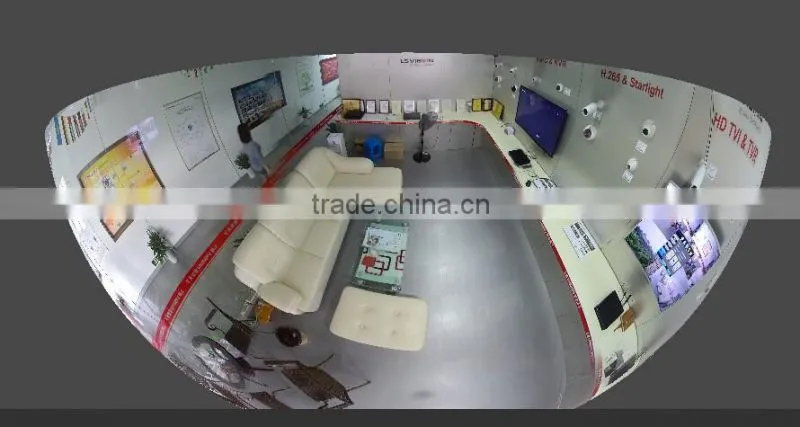

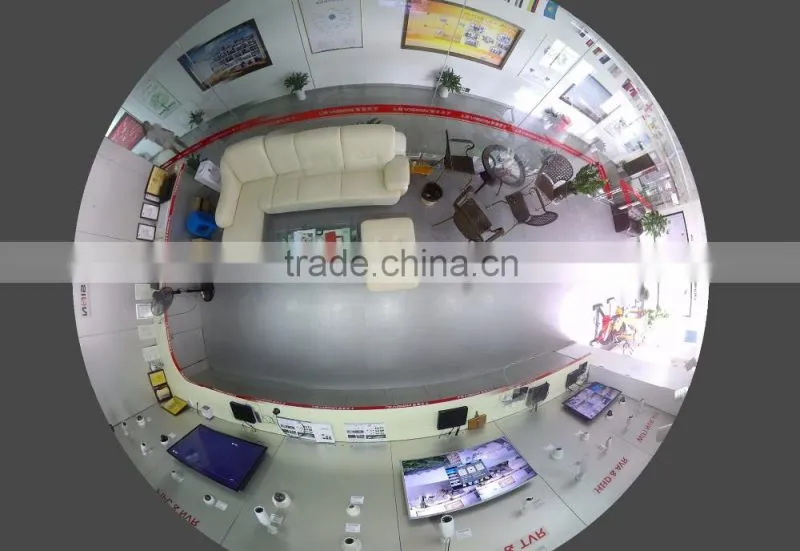

360 Degree Space ip camera, No Blind Corner


Saturn Story

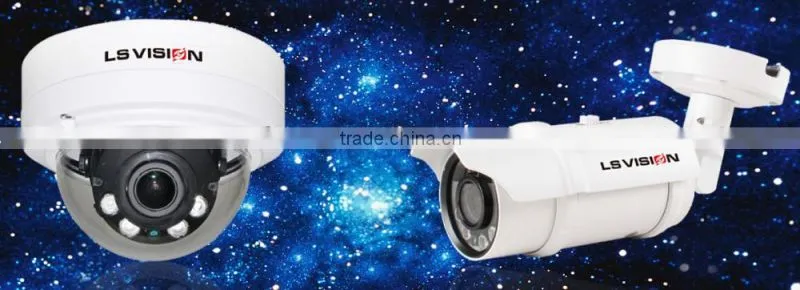

New Saturn Series IP Camera
