LS VISION 64Ch Dvr 1080P Nvr Network Video Recorder

LS VISION 64Ch Dvr 1080P Nvr Network Video Recorder thumbnail-1
LS VISION 64Ch Dvr 1080P Nvr Network Video Recorder thumbnail-2
LS VISION 64Ch Dvr 1080P Nvr Network Video Recorder thumbnail-3
LS VISION 64Ch Dvr 1080P Nvr Network Video Recorder thumbnail-4
LS VISION 64Ch Dvr 1080P Nvr Network Video Recorder thumbnail-5
LS VISION 64Ch Dvr 1080P Nvr Network Video Recorder photo-1
LS VISION 64Ch Dvr 1080P Nvr Network Video Recorder photo-2
LS VISION 64Ch Dvr 1080P Nvr Network Video Recorder photo-3
LS VISION 64Ch Dvr 1080P Nvr Network Video Recorder photo-4
LS VISION 64Ch Dvr 1080P Nvr Network Video Recorder photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-NF1664
Contact Supplier Request Quote Chat Now
Shenzhen LS Vision Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LS VISION
Model Number LS-NF1664
Product Description

64CH Network Recorder

Plug and play

Support P2P function

Cloud services

Cloud storage is provided


Main Processor : Intel J1900

Access Bandwidth : 256Mbps

Support 16 SATA, 1 eSATA


16 CH Alarm In/4 CH Alarm Out

Specification
Module
LS-NF1664
Chipset
Intel J1900
RAM
4GB DDR3
OS
Embedded Linux
Bidirectional Talk
1CH，BNC(Line in,2Vpp,1Kohms)
IPC Input
256Mbps
64CH
CVBS
1CH,BNC（1.0Vp-p,75ohms）
VGA
1CH,Resolution 1920x1080,1280×1024,1280×720,1024×768
HD
Standard 1.3a
1CH,Resolution 1920x1080,1280×1024,1280×720,1024×768
Audio Output
1CH,BNC(Line out,2Vpp,300ohms)
Audio Compression
G.711A
Audio Bit Rate
64Kbps
IP Resolution
Main stream:up to 5632x4224
Auxiliary stream:D1
Video bitrate
Up to 2Mbps@D1,4Mbps@720P,8Mbps@1080P
Video decoding
MPEG-4/H.264(Up to High Profile Level5.0）
Synchronous Playback
Up to 16CH
Decoding Ability
Up to 16CH 1080P@30FPS
Bidirectional Talk
Two-way voice intercom function
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Picture Capture
Local Capture&Web Capture
SATA
16
ESATA
1
Max Capacity
no limited
Network Interface
2 RJ45 10M/100M/1000M adaptive Ethernet interface
USB
2 USB 2.0 Interfaces
Alarm Input
16CH
Alarm Output
4CH
RS-232
1CH
RS-485
1 RS-485 interface
Dimensions
437x483x143mm
Weight
7Kg(without HDD）
Power Supply
110V~220V±10% ±10% 47Hz～63Hz
Working Temperature
-10℃--＋55℃
Working Humidity
10％--90％
Consumption
30W(without HDD）

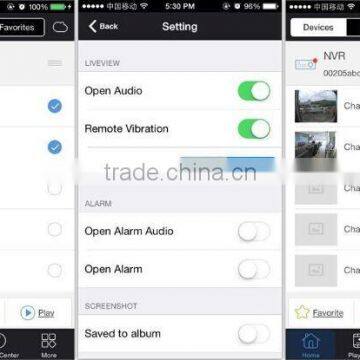

CMS & P2P

Intelligent function

1) Real plug & play with LS VISION ip cameras, image shown up once connection finished

2) Adopting HI3535 to support 3mp, 5mp ip cam's recording

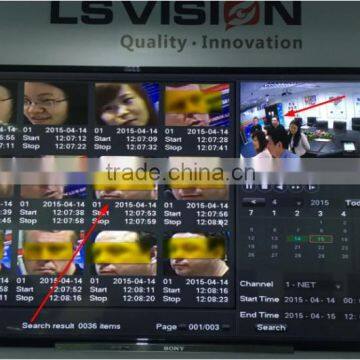

3) Intelligent functions for face detection
