Key Features:
v 16CH 720P&1080P TVI DVR
v Full HD output, support HD, VGA, CVBS synchronization output.
v Supports Iphone,Windows Mobile,Symbian,Android,Blackberry
v Plug and play, support P2P function, cloud services and cloud storage is provided.
Model |
LS-TVR7216 |
|
System |
Operation System |
Embedded LINUX |
Pentaplex function |
Live monitoring, recording, playback, backup & remote access |
|
Control Mode |
Front panel, USB mouse, IR remote control,Network |
|
Video |
CVBS/TVI input |
16 ch. BNC(1.0Vp-p,75ohms) |
Output |
1 CVBS, BNC (1.0Vp-p,75 ohms) |
|
1 HD, 1.3a,support 1920×1080 Resolution | ||
1 VGA,1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution | ||
Audio |
Input |
1 ch. RCA(Line in,2Vpp,1Kohms) |
Output |
1 RCA (Line out,2Vpp,300ohms) |
|
Two-way Talk |
1st. channel reuse |
|
Display |
Resolution |
1080P(25/30fps), 720P(25/30/50/60fps),960H |
Privacy Masking |
Four zones for privacy masking for each channel |
|
|
Recording |
Video Compression |
H.264 HP4.2 |
Audio Compression |
G.711A |
|
Image Encoding |
Adjustable encoding quality, variable code stream/fixed code stream |
|
Dual Stream |
Support |
|
Max compression Ability |
16ch.1080P@15FPS or16ch. 720P@30FPS |
|
Recording Mode |
Manual, auto, motion detection, stop |
|
Video Detection & Alarm |
Trigger Events |
Recording, PTZ, Tour,Email |
Motion Detection |
396 (22×18) detection zone, variable sensitivity levels |
|
Capture |
JPEG capture |
|
Alarm Input |
N/A |
|
Alarm Output |
N/A |
|
Playback & Backup |
Sync Playback |
16ch.960H or16ch.720P@30fps or 16ch.1080P@15fps |
Backup Mode |
USB,HDD,Network Backup |
|
Network |
Ethernet |
1 RJ-45 port (10M/100M/1000M) |
Network protocol |
TCP/IP, UDP, HTTP, RTP/RTSP |
|
Network Functions |
DHCP, PPPOE, DDNS,SMTP,SNTP,FTP,UPnP,P2P,3G |
|
Remote Operation |
Monitoring,PTZ control,playback,system setting,file download,log information |
|
Smart Phone |
iPhone,iPad,Android,Blackberry,Windows Mobile |
|
Hard Disk |
Hard Disk |
2 SATA ports,each SATA supports 4TB |
HDD Management |
Hard disk hibernation technology, HDD faulty alarm |
|
Auxiliary Interface |
USB Interface |
2 USB 2.0 ports |
RS485 |
Standard 485, half duplex,PTZ control |
|
Environment |
Power Supply |
DC +12V/4A |
Power Consumption |
20W (without HDD) |
|
Working Environment |
0℃~+55℃ / 10%-90%RH |
|
Dimension(W*D*H) |
1U,320x245x50mm |
|
Weight |
2Kg (without HDD) |
|
Installation |
Desk type |
|

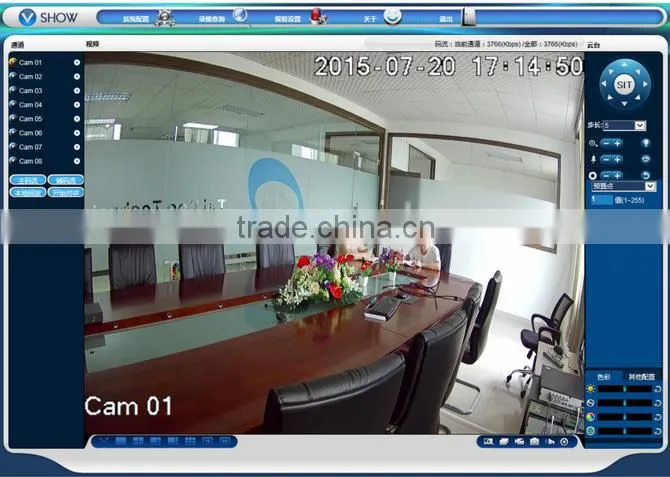

| IE Interface |
|

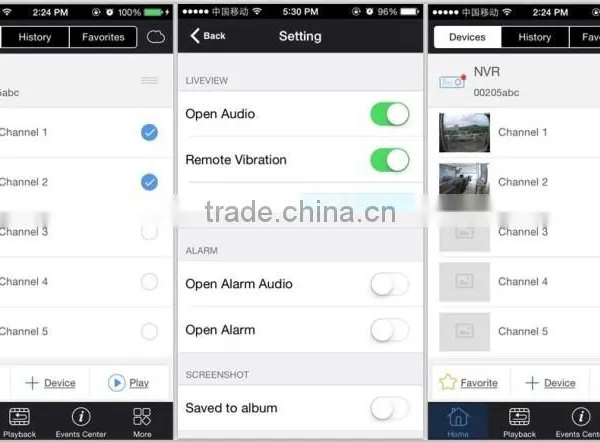

| CMS / Free APP |
|
| Image Display |
|
|
