LS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8Ch

LS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8Ch thumbnail-1
LS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8Ch thumbnail-2
LS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8Ch photo-1
LS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8Ch photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-AVR9208
Contact Supplier Request Quote Chat Now
Shenzhen LS Vision Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LS VISION
Model Number LS-AVR9208



Product Description





Key Features:



v  8CH 1080P AHD DVR



v Hybrid function adjustable mode:16CH 1080P IPC/8CH 1080P AHD



v AHD standard HD BNC interface



v HD / VGA simultaneous output up to 1920*1080



v H.264 dual-stream video compression



v All channel 1080H 20fps recording



v Support HD video signal recording, storage, playback and transport



v Easy-to-use P2P Cloud monitoring: Web Browser,CMS, Mobile APP

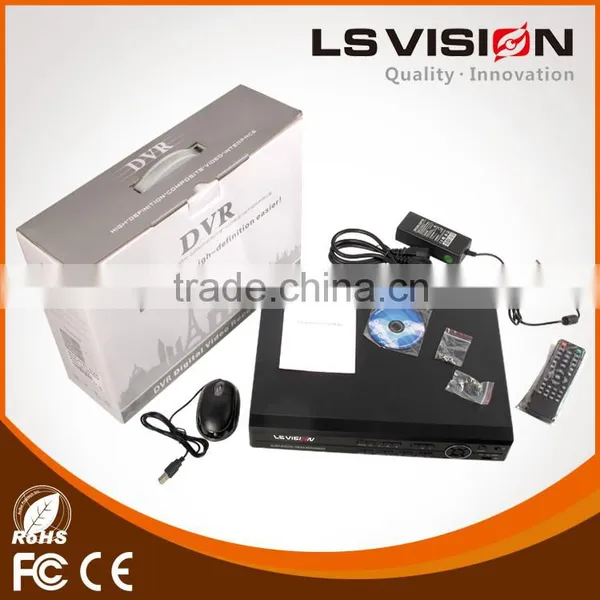

Package :



 LS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8Ch



 Specification



Model

LS-AVR8108

Compression

H.264 Standard compression

Operation

Embedded  Linux

Image  coding-control

Image coding adjustable,VBR/CBR is optional

Dual stream

Support set in each channel

Monitor image quality

1080P(1920*1080)

Motion Detection

Support Multiple motion detection areas in each channel

Frame rate



1080P(1920*1080)   20FPS/CH(PAL)  25FPS/CH(NTSC)

Image playback quality

1080P(1920*1080)   TOTAL: 160 FPS(8 CH)

Recording mode

Support manual, Auto, Motion detection, Alarm trigger

Backup mode

USB drive, USB portable disk, USB writer, Network storage and backup

Operate mode

Mouse ,Remote Controler, Front Panel Control

Local login

User name and password

Storage

local hard disk and network

External interface

Video input

1080P@20/25FPS  Support 160/200FPS

Audio input

4*RCA

Video output

1*VGA,1*HD

Audio output

1×RCA

Network interface

10M/100M Ethernet (RJ-45)

USB Interface

2 x USB 2.0

RS485

RS485*1

Alarm in

8ch

Alarm out

1ch

Hard disk

Internal HDD

2 SATA HDD port

Maximum capacity

Maximum 3TB each SATA

Cell phone monitoring

Support iPhone,iPad, Android, and 3G

Power

12V/4A

Operating Temperature

-10℃~+55℃

Operating  humidity

10%-90%

Dimension

380*270*55mm

Weight

<3kg(without HDD)

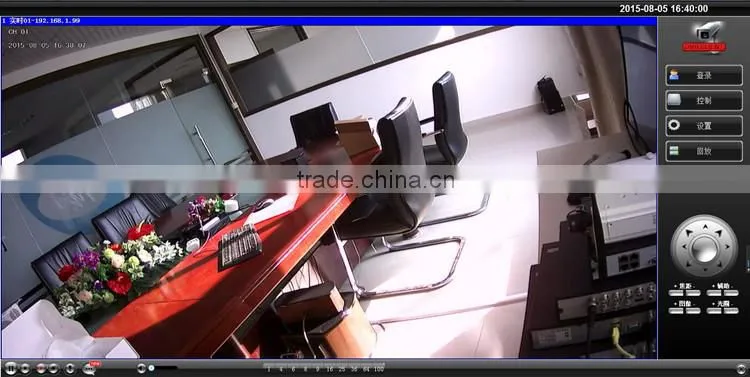

IE Interface

LS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8Ch

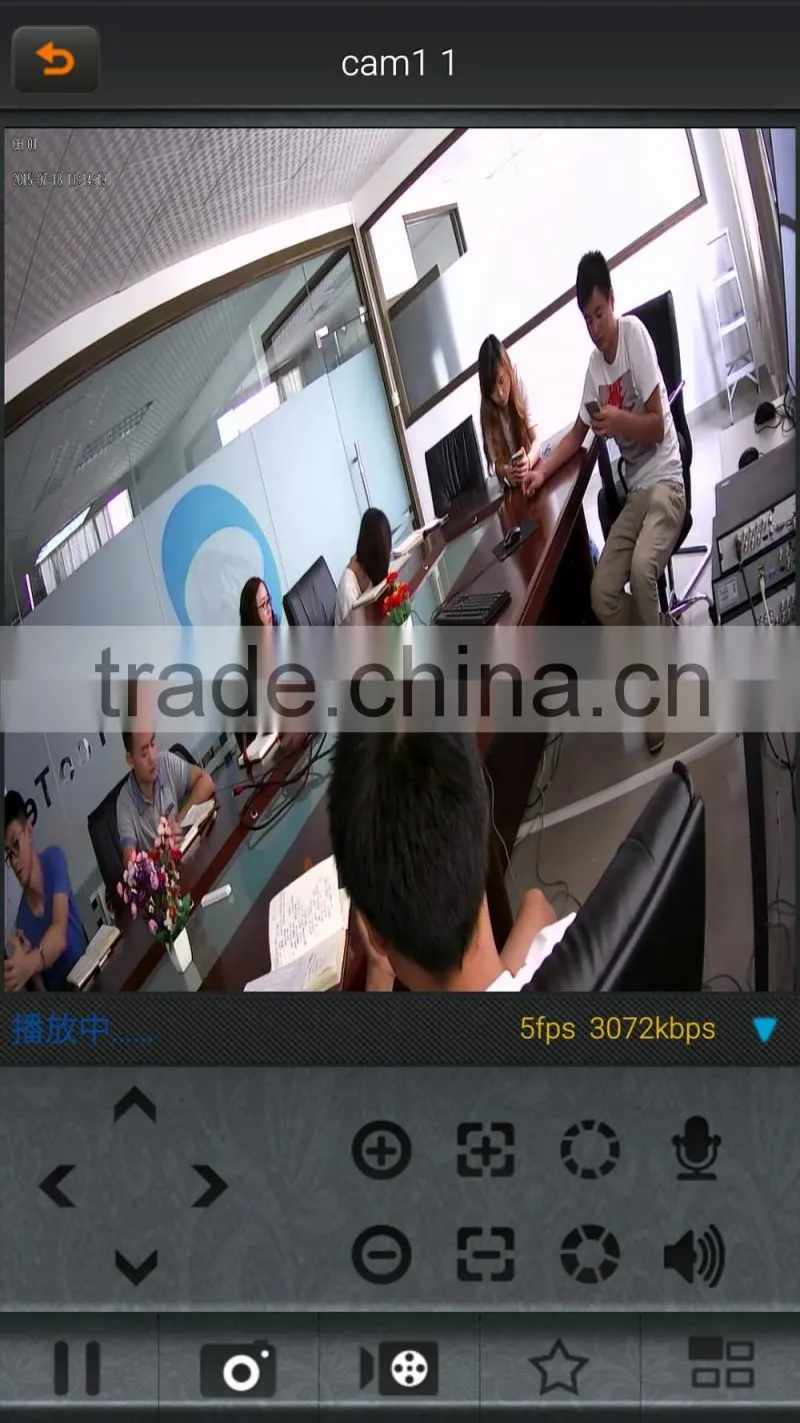

Free APP

LS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8Ch



Our Services

1. One year quality guarantee
2. OEM service to meet all your need.
3. Popular model will be suggested,keep our customer updated for the information about the products..
4. 7*24 Technical support
NOTE: The RMA code will be given with the response email. Return shipping charges will be the buyer`s responsibility.



   Customers all over the world

 LS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8Ch



   Customers Feedback & Product Certification



LS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8Ch



Trading Process



LS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8ChLS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8Ch

Company Information

Why LS VISION will be your first choice in the market?



1.Shenzhen LS Vision Technology Co., Ltd., established with the purpose of serving the house ware with professional quality products.
2.We have more than years export experience with a turnover more than 16 million US dollars.
3.We win a high reputation with our great ideas of creation and High quality products. LS VISION has exported our products all around the world, like USA, European countries.
4.We are also OEM&ODM manufacturer.
5.We own a professional engineering team and with our own factories to service different need of customers.
6.We believe with the permanent quality and reasonable price and excellent service, we are devoting to built pleasant business relationship with customers from all over the world. LS Vision Technology will be your first choice in the market.



Trading Process

Packaging & Shipping
LS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8ChLS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8ChLS VISION Cctv Corner Cameras High Definition Cctv Dvr Ahd Dvr 1080P 8Ch

1.Packaging Details:CTN

2.Shipping Details:dhl, fedex, ups
3.Payment Terms: Paypal , Western Union , T/T

4.Delivery Time:Within 7 working days
