Welcome to Jinan Zhuoli Trading Co. Ltd
ROFFING Application and ASTM,GB,JIS Standard prepainted galvanized steel coil
1) Standard: AISI ASTM JIS EN
2) Grade: SGCC SGCD DX51D DX53D
3) Size: 0.16-1.2mm 900-1250mm
4) Color: Based on RAL or clients' sample
5) Coil Diameter: 610mm / 508mm
6) Zinc coating: 30g/sqm-150g/sqm
7) Spangle: Regular, Mini, Big
8) Coil weight: 3-8 metric tons
9) Surface treatment: Z or AZ coated
10) Painting thickness: 25+/-5 microns on top side and 10+/-5 microns on back side
11) Certificate: ISO9001,
12) Surface coating type: PE, SMP, HDP, PVDF13)Technology: Bi painting and bi drying
14) MOQ: 50MT
15) Package: Standard Exported Packaging
16) Delievery: 7-30 days after receiving deposit
17) Payment terms: TT L/C
18) Applications: Widely used for roofs, outer walls, ovens, explosive-proof steel, electrically controlled cabinets, and industrial freezers in the residential and industrial buildings.
Application of our Products
Construction |
Outside |
Workshop, agricultural warehouse, residential precast unit, corrugated roof, roller shutter door, rainwater drainage pipe, retailer booth |
Inside |
Door, doorcase, light steel roof structure, folding screen, elevator, stairway, vent gutter |
|
Electrical appliance |
Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker |
|
Furniture |
Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf |
|
Carrying trade |
Exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board |
|
Others |
Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment |
|
Product performance (TEST INDEX):
TEST ITEM |
TOP |
BACK |
PAINT THICKNESS |
>5+18 |
5-7 |
GLOSSY |
HIGH70±5,MEDIUM50±5,LOW30±5 |
35±5 |
COATING HARDNESS |
≥H |
≥H |
T BENDING |
≤3T |
≤4T |
IMPACT RESISTANCE |
≥9J |
≥6J |
|
DISSOLVENT RESISTANCE(TIMES) |
≥100 |
≥50 |
SALT SPAY TEST |
≥720hr |
|
ACID RESISTANCE |
SOAKED IN 5%HCL SOLUTION FOR 300HR WHITHOUT BLISTERING, COLOR FADING AND COATING PEEL-OFF |
|
ALKALI RESISTANCE |
SOAKED IN 5%NAOH SOLUTION FOR 300HR WHITHOUT BLISTERING, COLOR FADING AND COATING PEEL-OFF |
|
Contact Information :
Jessica: Tel: +86-15064155917 ; Skype: jessica-steel1 QQ: 2246988126 Email: chinazhuoliluo(at)
PPGI PPGL
Galvanized Corrugated Steel Sheet

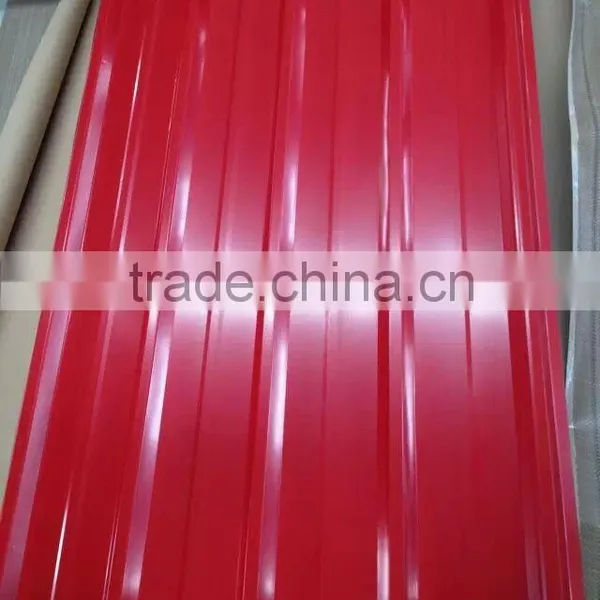

Prepainted Colored Corrugated Roofing Steel Sheet / Plate
Contact Information :
Jessica: Tel: +86-15064155917 ; Skype: jessica-steel1 QQ: 2246988126 Email: chinazhuoliluo(at)
Packaging
Loading in the container
Contact Information :
Jessica: Tel: +86-15064155917 ; Skype: jessica-steel1 QQ: 2246988126 Email: chinazhuoliluo(at)
