Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar

Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar

Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar thumbnail-1
Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar thumbnail-2
Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar thumbnail-3
Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar thumbnail-4
Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar thumbnail-5
Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar thumbnail-6
Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar photo-1
Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar photo-2
Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar photo-3
Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar photo-4
Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar photo-5
Indoor Decor Linear Lighting DC24V 12V 50cm 24leds Smd SMD5050 Led Rigid Bar photo-6
US$ 2 - 12 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar
Type:
LED Bar Lights
Input Voltage(V):
24
Contact Supplier Request Quote Chat Now
Shenzhen ZCD Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar
Type LED Bar Lights
Input Voltage(V) 24
Lamp Power 6
Lamp Luminous Flux(lm) 70
Color Temperature(CCT) Cool White
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE, EMC
Emitting Color White
Place of Origin Guangdong, China
Brand Name FUTURE, Epistar LED
Model Number FL-NLB24WD2, FL-NLB24WD2

Indoor display Aluminum housing SMD5050 full color rgb 20cm rgb rigid led light bar



A-slot strip light

1.Adopt SMD5050 Epistar chip,excellent thermal aluminum sink and stable circult design.

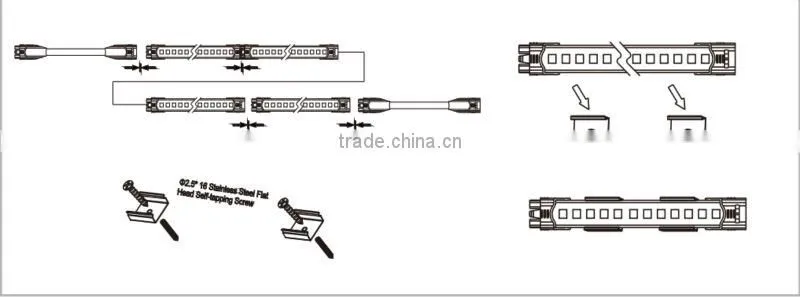

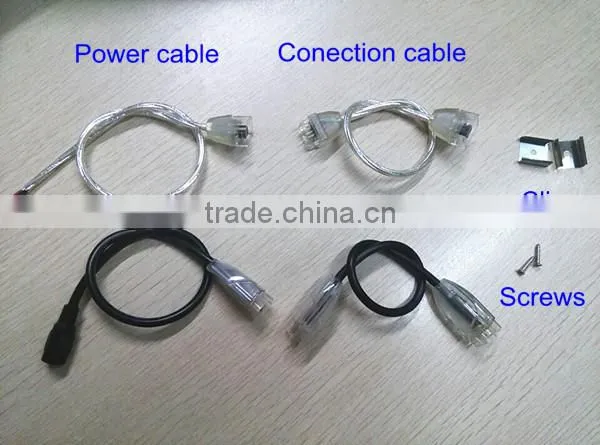

2.Two connect ways:Plug connect or connect by wires

3.Flexible length:100mm,200mm,500mm,1000mm also can customiza.

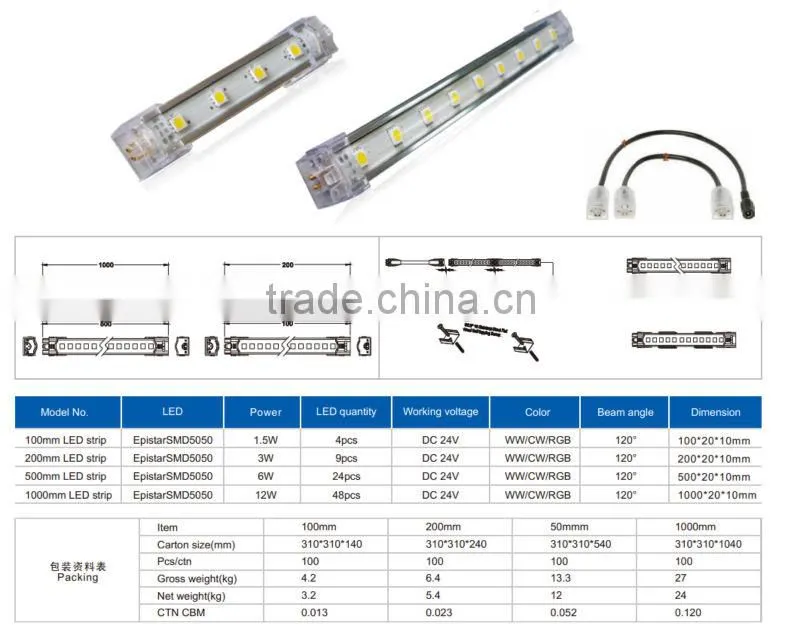

Specification:

1, Model No.: FL-NLB9WD2

2, Led quantity: 9pcs SMD 5050

3, Input voltage: DC 24V

4, Length: 20cm (10cm, 50cm, 100cm)

5, Certification: CE & EMC

 Indoor decor linear lighting DC24V 12V 50cm 24leds smd SMD5050 led rigid barIndoor decor linear lighting DC24V 12V 50cm 24leds smd SMD5050 led rigid barIndoor decor linear lighting DC24V 12V 50cm 24leds smd SMD5050 led rigid bar

---Aluminium slot lighting house

--- 48leds(SMD5050)

---dimmension :500*20*10mm

---A variety of lengths and measurements can be provided;

---It can be applied to architectural decoration;Sidelight source

   for big thin light box;Signal lighting;Architectural lighting;Backlight for large advertising sign

  Indoor decor linear lighting DC24V 12V 50cm 24leds smd SMD5050 led rigid bar

Specification :

Name 5050 Rigid led strip bar
Led quantity 9pcs Epistar SMD5050
Dimension 20x2x1cm (10cm, 50cm, 100cm available)
Wattage 3W
Voltage DC 24V
Color White (Red, Blue, Yellow, Green, RGB)
IP degree IP54 indoor use only
Material Aluminium
Beam angle 120 °
Operating temperature  -25°C ~+ 70°C
Life time  ≥50000hours
Certificates  CE & EMC test report







Indoor decor linear lighting DC24V 12V 50cm 24leds smd SMD5050 led rigid bar



Application:



 It can be installed easily for cove;undercabinet;signage and a multitude of other indoor lighting applications.



Indoor decor linear lighting DC24V 12V 50cm 24leds smd SMD5050 led rigid bar

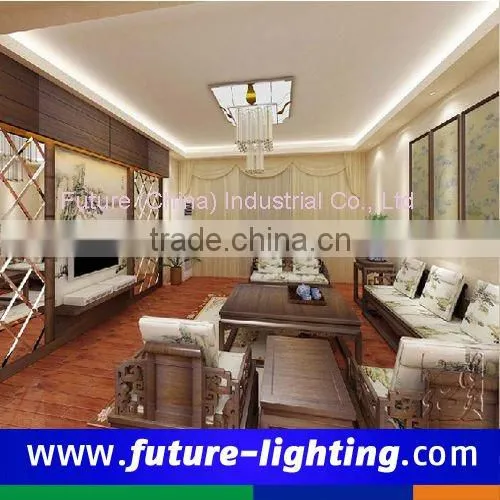

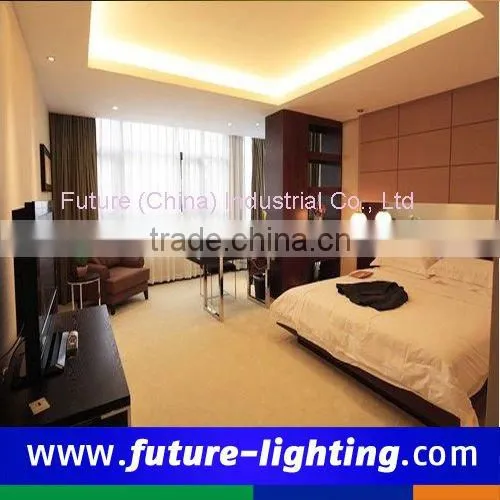

Application picture:

Indoor decor linear lighting DC24V 12V 50cm 24leds smd SMD5050 led rigid barIndoor decor linear lighting DC24V 12V 50cm 24leds smd SMD5050 led rigid bar
