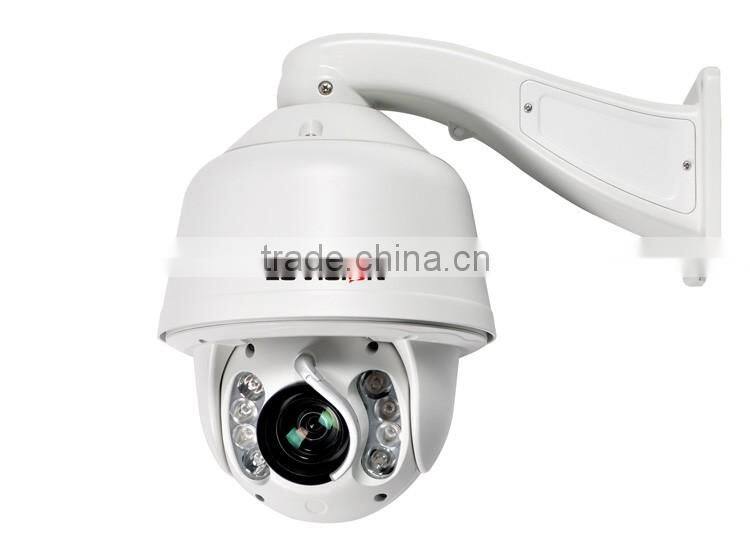

LS VISION 2 Megapixel 1080P Outdoor High Speed Dome IP Camera PTZ Support Auto Tracking

LS VISION 2 Megapixel 1080P Outdoor High Speed Dome IP Camera PTZ Support Auto Tracking thumbnail-1
LS VISION 2 Megapixel 1080P Outdoor High Speed Dome IP Camera PTZ Support Auto Tracking thumbnail-2
LS VISION 2 Megapixel 1080P Outdoor High Speed Dome IP Camera PTZ Support Auto Tracking thumbnail-3
LS VISION 2 Megapixel 1080P Outdoor High Speed Dome IP Camera PTZ Support Auto Tracking thumbnail-4
LS VISION 2 Megapixel 1080P Outdoor High Speed Dome IP Camera PTZ Support Auto Tracking thumbnail-5
LS VISION 2 Megapixel 1080P Outdoor High Speed Dome IP Camera PTZ Support Auto Tracking thumbnail-6
LS VISION 2 Megapixel 1080P Outdoor High Speed Dome IP Camera PTZ Support Auto Tracking photo-1
LS VISION 2 Megapixel 1080P Outdoor High Speed Dome IP Camera PTZ Support Auto Tracking photo-2
LS VISION 2 Megapixel 1080P Outdoor High Speed Dome IP Camera PTZ Support Auto Tracking photo-3
LS VISION 2 Megapixel 1080P Outdoor High Speed Dome IP Camera PTZ Support Auto Tracking photo-4
LS VISION 2 Megapixel 1080P Outdoor High Speed Dome IP Camera PTZ Support Auto Tracking photo-5
LS VISION 2 Megapixel 1080P Outdoor High Speed Dome IP Camera PTZ Support Auto Tracking photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LS VISION
Model Number:
LS-FC84WTH-H20B
Type:
Other, IP PTZ Speed Dome Camera
Contact Supplier Request Quote Chat Now
Shenzhen LS Vision Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LS VISION
Model Number LS-FC84WTH-H20B
Type Other, IP PTZ Speed Dome Camera
Style Dome Camera
Sensor CMOS
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof
Camera Details

Features:

• 1/2.8” Exmor CMOS Sensor

• 20x optical zoom
• 2.0MP high resolution
• DNR(2D&3D)
• WDR
• IP66 rating
• Auto tracking
• Wiper, Audio, Alarm and SD card optional
Model NO.
LS-FC84WTH-H20B
Key Feature
High Speed Dome Camera
Media Processor
Sony IMX322 CMOS
Image Sensor
1/2.8” CMOS
Optical Zoom
20X
Focal Length
f=4.7-94mm
IR View
8pcs lens lamp, IR distance 120m
Aperture Range
F1.6-F3.5
Angle of View
58.3º-3.2º(Wide-Tele)
Day& Night
Auto/Color/Black and White
Focus Mode
Auto /Manual
S/N Ratio
>52dB
BLC
ON/OFF
White Balance
Auto / Manual /Indoor /Outdoor
Shutter Time
1/1s-1/30,000s
AGC
Auto/Manual
Min.illumination
Color:0.05Lux@(F1.6,AGC ON)

B/W: 0.01Lux@(F1.6, AGC on )
WDR
Support
Max.Image Resolution
1920*1080P
Dual Stream
Support
Security Measures
Password protection, multiuser access control
Protocols
TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPOE、NTP、UPNP、SNMP、FTP、802.1x、QoS、HTTPS、IPv6（SIP、SRTP） 、ONVIF
Interface
1 network interface,1 power input
Pan Range
360° endless
Pan Speed
Pan Manual Speed: 0.01°-120°/s, Pan Preset Speed:220°/s
Tilt Range
-5°-90° (Auto Flip )
Tilt Speed
Tilt Manual Speed: 0.1°-120°/s,

Tilt Preset Speed:120°/s
Number of Preset
256
OSD Menu
English / Chinese
Wiper
Standard Configuration
Power Box
Optional
Power Supply
DC12V+-10%
Working Temperature

/Humidity
-35°C-+55°C

90% or less(No Condensing)
Protection Level
IP66 standard, Level 2 lightning protection, 4000V surge protection

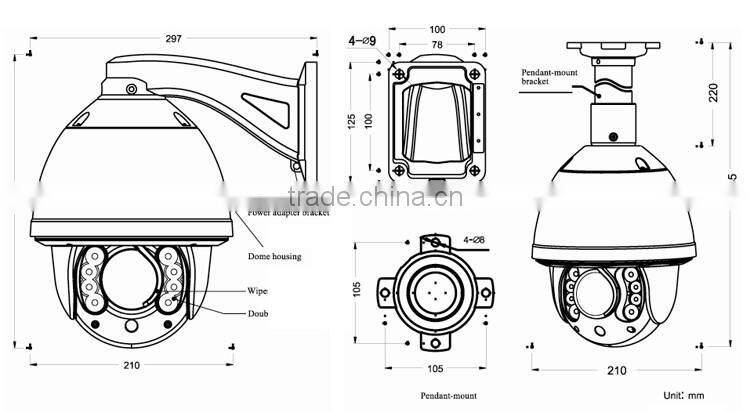

Mounting
Various mounting modes option: wall mount,pendant mount
Weight(approx.)
4.8KG

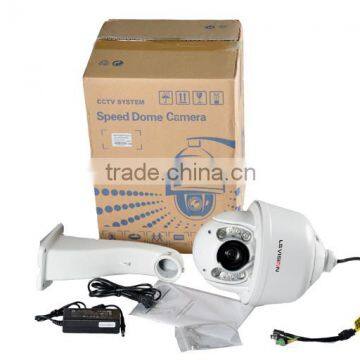

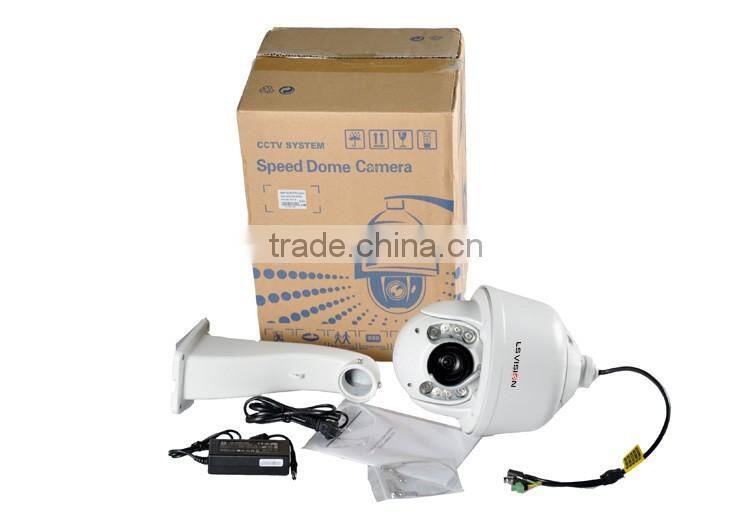

Accessories
Wall-mount bracket,Power adapter(DC12v)

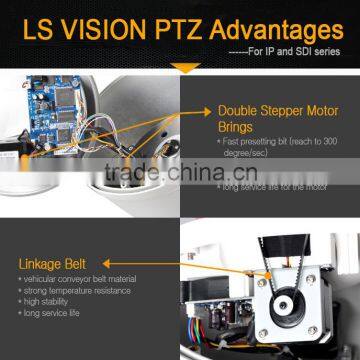

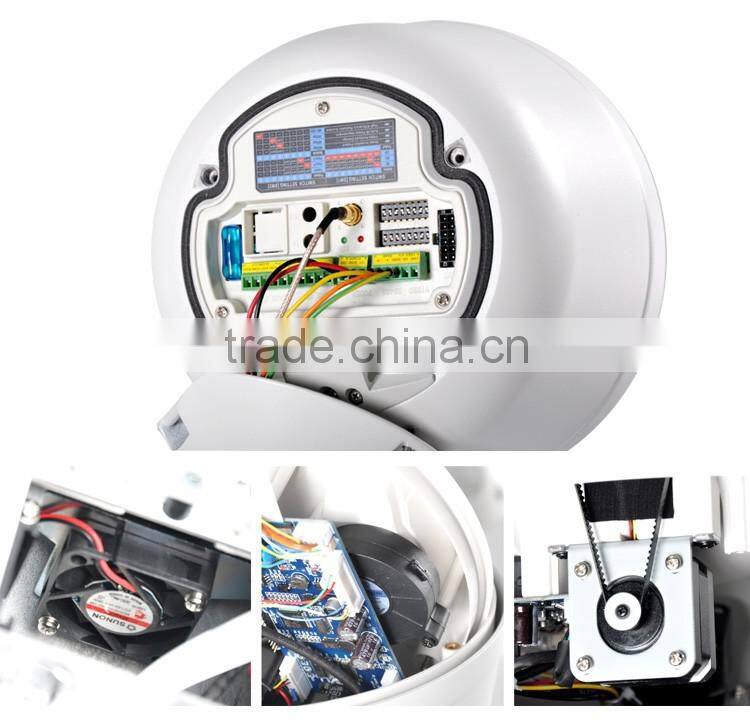

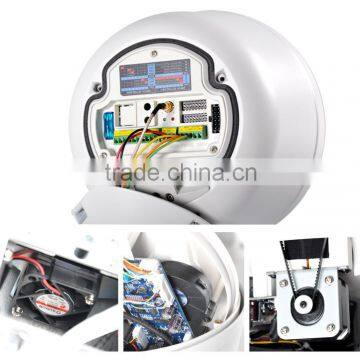

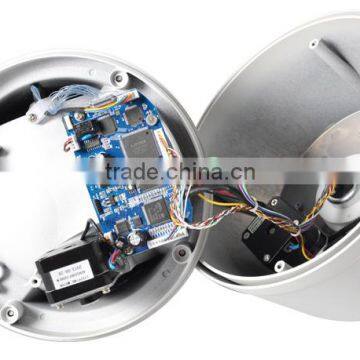

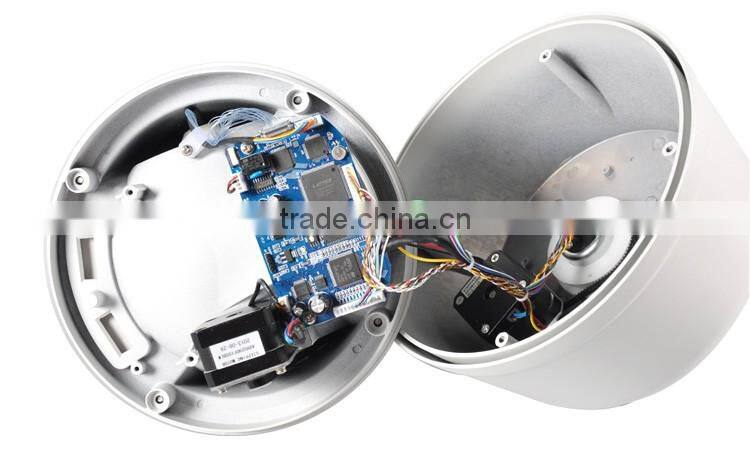

Detailed Images
Certifications
LS VISION CCTV

Why is LS Vision?

LS VISION Core Value: " Quality, Innovation, Dedication". LS VISION Mission: "Only for Quality Life".
1. LS VISION 's camera 4mp 25/30 @fps real time, as you know, it is difficult to reach real time for 3mp cctv camera in the current market;
2. our camera have our unique exterior design with private mold, like LS VISION Saturn Series ip camera;
3. we have 64ch, 128ch nvr, support onvif, it can compatible with many brand ip camera

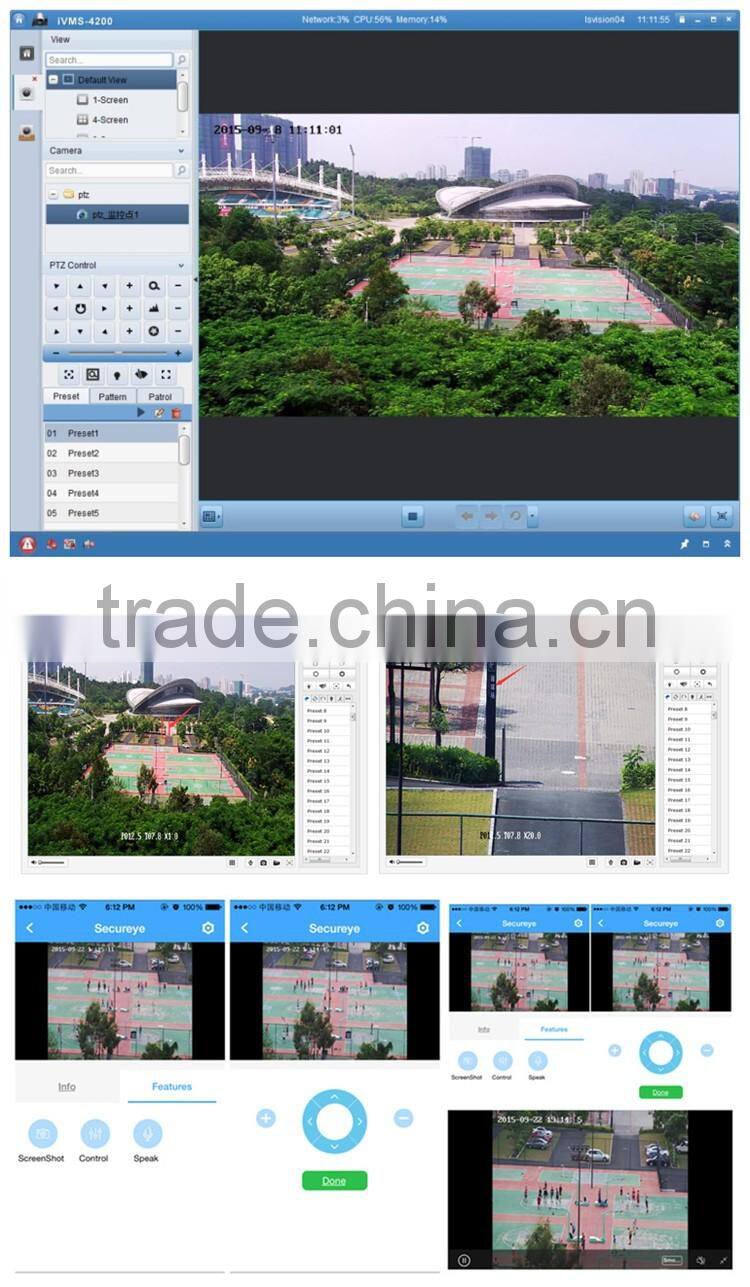

4. we provide CMS management software and app for ip camera, ptz, ahd dvr, tvi dvr, nvr and panoramic camera.
5. support OEM/ODM service for small bulk orders
6. "Only for quality Life" is our core corporate culture, our camera can be applied to tough environment. (working temperature : -40--70 °C)
7. we offer warranty as long as LS VISION alive.

LS VISION Exhibition

LS VISION Newest Security Technology Displayed on Intersec Middle East 2016

From 17 – 19 January, 2016 (Tuesday - Thursday), Intersec Middle East 2016 is being held at the Dubai International Exhibition Center .
Intersec Middle East - Exhibition and conference for Safety, Security and Fire Protection. LS Vision was participating in Intersec Middle East, LS Vision have displayed many Latest CCTV Technology and Camera, Such as H.265 IP Camera, Space 360 degree Panoramic IP Cameras, Motorized Lens Starlight IP Camera, Wifi NVR System.
