LS VISION 8ch 1080p POE NVR, Plug and Play Onvif P2p NVR, Face Detection Nvr

LS VISION 8ch 1080p POE NVR, Plug and Play Onvif P2p NVR, Face Detection Nvr thumbnail-1
LS VISION 8ch 1080p POE NVR, Plug and Play Onvif P2p NVR, Face Detection Nvr photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-NF7208P
Contact Supplier Request Quote Chat Now
Shenzhen LS Vision Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LS VISION
Model Number LS-NF7208P

 LS VISION 8ch 1080p POE NVR, plug and play onvif p2p NVR, face detection nvr

Product Description

Key Features:



Embedded Linux

Two-way voice intercom function

Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Local Capture&Web Capture

Full HD output, support HD, VGA, CVBS synchronization output

Network QOS automatically adjusting the code flow and network transmission strategy

Supports Iphone,Windows Mobile,Symbian,Andriod,Blackberry

8ch 1080p@30fps(8Mbps)/8ch 3MP@20fps(8Mbps)/8ch 5MP@10fps(8Mbps) video input
6ch 1080P real time/4CH 3MP@20fps(8Mbps)/2CH 5MP@10fps(8Mbps) Playback
Support 1SATA,8ch POE port (IEEE 802.3af),1 RJ45 10M /100M/1000M adaptive Ethernet interface
Two-way voice intercom,small size: 215x235x50mm
Intelligent features: 1CH face detection, 2ch boundary analysis




LS VISION 8ch 1080p POE NVR, plug and play onvif p2p NVR, face detection nvr


Module

LS-NF7208P

OS

Embedded Linux

master chip

Hi3535

Access Bandwidth

64M

Video&Audio input

Bidirectional Talk

1 CH(Line in,2Vpp,1Kohms)

IPC Input

up to 8ch D1@30fps(2Mbps)
or 8ch 720P@30fps(4Mbps)  or 8ch 1080P@30fps(8Mbps)

or 8ch 3MP@20fps(8Mbps)  or 8ch 5MP@10fps(8Mbps)

Video&Audio output

CVBS Output

1CH,BNC(1.0Vp-p,75ohms)

VGA

1CH,Resolution 1920×1080,1440×900,1280×1024,1024×768,800×600

HD

Standard 1.3a

Resolution 1920×1080,1440×900,1280×1024,1280×720,1024×768,800×600

Audio Output

1CH,BNC(Line out,2Vpp,300ohms)

Video&Audio encoding

Audio Compression

G711A

Audio Bit Rate

64Kbps

Video&Audio codecs

IP Resolution

Main stream:up to 1920x2048
Auxiliary stream:4CIF

Video bitrate

Up to 2Mbps@D1,4Mbps@720P,8Mbps@1080P

Video decoding

PEG-4/H.264(Up to High Profile Level4.2)

Synchronous Playback

Up to 4CH

resource capacity

D1 Play back

8CH

720P Play back

8CH

1080P Play back

6CH

switch for 3.0MP IPC

8CH 3MP@20fps(8Mbps)

3.0MP Play back

4CH

 switch for 5.0MP IPC

8CH 5MP@10fps(8Mbps)

5.0MP Play back

2CH

Other Function

Bidirectional Talk

Two-way voice intercom function

Motion Detection

Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)

Picture Capture

Local Capture&Web Capture

HDD Interface

SATA

2

ESATA

0

POE

POE interface

8CH( IEEE 802.3af )RJ45 10M/100M adaptive Ethernet interface

External Interface

Network Interface

1 RJ45 10M/100M/1000M adaptive Ethernet interface

USB

2 USB 2.0 Interfaces

Alarm Input

8CH

Alarm Output

3CH

RS-232

N/A

RS-485

1RS-485 interface

General

Dimensions

360x260x48mm(W×D× H)

Weight

2Kg(without HDD)

Power Supply

DC +12V/4A & DC +48V 1.875A(POE)

Working Temperature

 -10℃--+55℃

Working Humidity

10%--90%

Consumption

10W(without HDD,without POE)

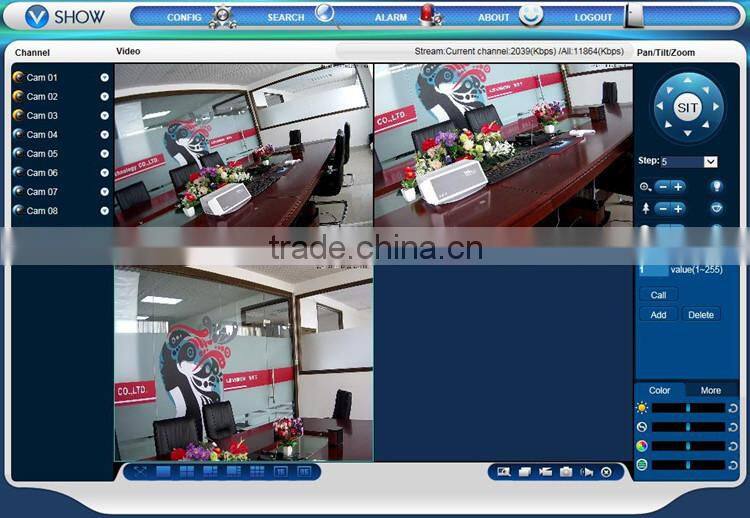

IE Interface

 LS VISION 8ch 1080p POE NVR, plug and play onvif p2p NVR, face detection nvr

CMS



LS VISION 8ch 1080p POE NVR, plug and play onvif p2p NVR, face detection nvr



 CMS  /  Free APP

LS VISION 8ch 1080p POE NVR, plug and play onvif p2p NVR, face detection nvr

HD IP System

LS VISION 8ch 1080p POE NVR, plug and play onvif p2p NVR, face detection nvr
