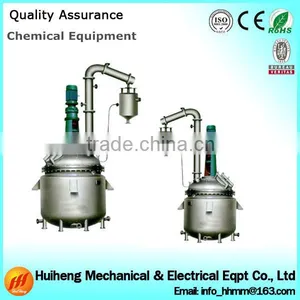

SS316 jacket heating reactor,polyester resin reactor
Guangzhou Hui heng mechanical and electrical equipment co., LTD.,produce the reaction vessel and a complete set of equipment.
It is mainly used in adhesive, unsaturated resin, polyester, polyurethane, ink and other fine chemical industry.
And we can provide customers with the process design, control circuit design, product manufacturing, equipment installation and debugging through-train service.
1. Product information
1). Specially equipment for chemicals mixing and reacting.
2). Widely used inmaking resins, adhesives, paints, cosmetics, pharmaceuticalsand other chemical
production
3). Mechanical seal.
4). Inverter for frequency control.

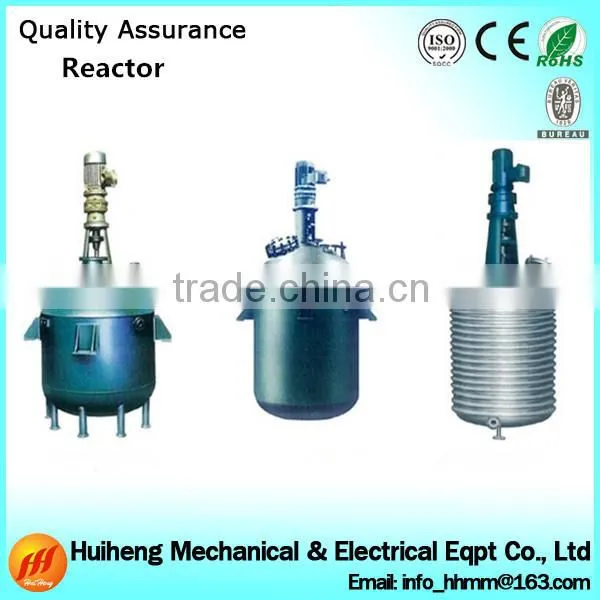

5). Jacketed type, outer-pipe type, outer-inner-pipe type.
6). Heated by oil, water, steam or electric.
7). Three-layers paddle style, made of stainless steel.
8). Consists of body, gears, mixing devices, heating devices, cooling devices, seal composition.

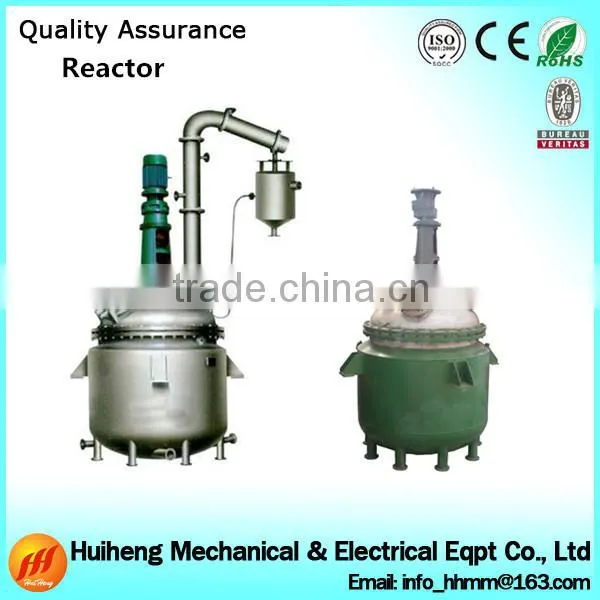

9). Equipped with distillation column, condenser, water separator, collecting cans, filters ect.
10). Supply complete production line, as well as producing technology
2. The Main technical parameters
| Nominal Volume(L) | Actual Volume(L) | Power of elecric heating | Size of jacket(Φmm) | Size of inner kettle(Φmm) | Model of stepdown gear | Power of motor(kw) | Stirring speed(n/min) |
| 50 | 62 | 3x2kW | 500 | 400 | B1 | 1.1 | 60-80 |
| 100 | 130 | 6x2kW | 600 | 500 | B1 | 1.5 | 60-80 |
| 200 | 247 | 6x3kW | 700 | 600 | B2 | 2.2 | 60-80 |
| 300 | 355 | 6x3kW | 800 | 700 | B2 | 3 | 60-80 |
| 500 | 589 | 9x4kW | 1000 | 900 | B3 | 4 | 60-80 |
| 1000 | 1215 | 12x4kW | 1300 | 1200 | B3 | 5.5 | 60-80 |
| 2000 | 2600 | 15x5kW | 1400 | 1300 | B4 | 7.1 | 60-80 |
| 3000 | 3600 | 15x5kW | 1600 | 1500 | B4 | 11 | 60-80 |
| 4000 | 4800 | 15x5kW | 1700 | 1600 | B5 | 15 | 60-80 |
| 5000 | 6200 | 18x5kW | 1900 | 1800 | B5 | 15 | 60-80 |
3. The products' Application
It is mainly used in adhesive, unsaturated resin, polyester, polyurethane, ink and other fine chemical industry.

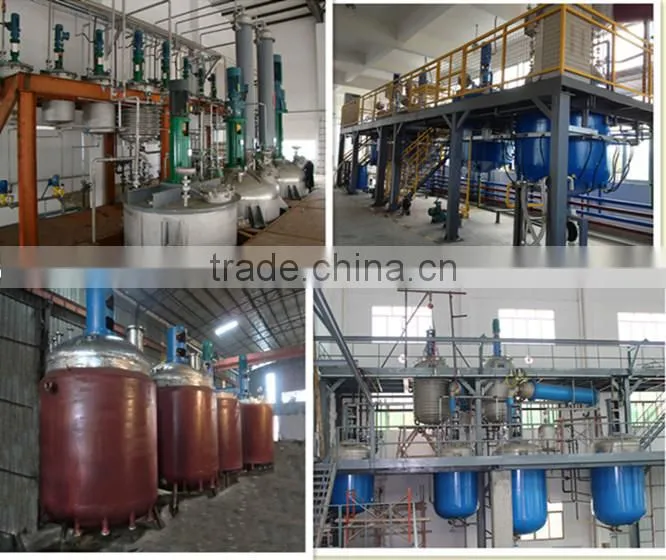

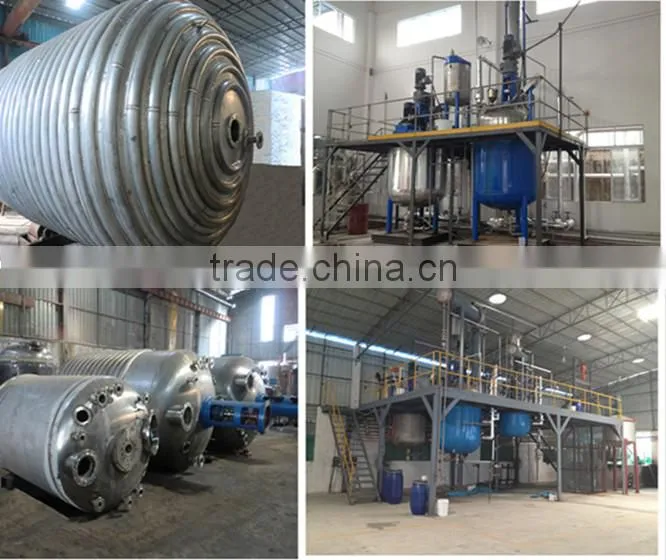

4.Field installation

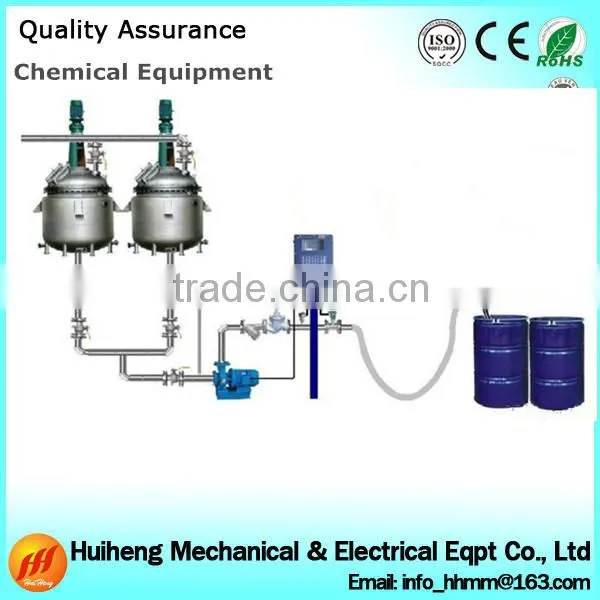

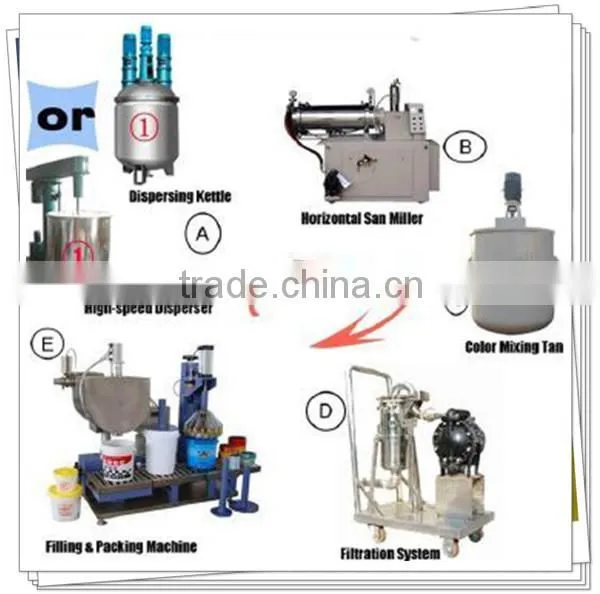

5. Whole Production line for Paint

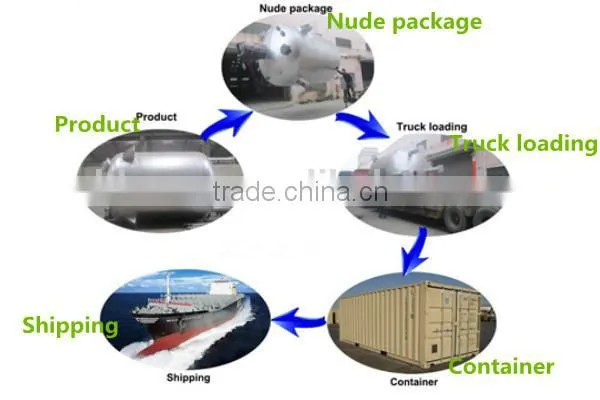

6. The Shipping
7. Our advantage
1. Our chemical reactor have good price with nice shape.
2. Stable avilibility, adequate stock, complete specification.
3. MOQ 1 Set.
4. The strong support of advanced tachnology and detection capability.
5. ISO,SGS,CE certification.
6. With reliable factory, 20years experience.
7. Professional service and technology support.
8. Delivery about 10 days upon receipt.
8. Why choose US?
Q:Are you a factory or a trading compay ?
A:We are manufacture.
Q:The reactor could be used for sterification,in an acidic invironment?
A: Yes.
Q:Wheather the impeller is durable for strong acids sch as H2SO4 or HNO3?
A:Yes.
Q:Is the standard model suitle for working under vacuum?
A:Yes.
Q: Is there a possibility of connecting an external system via an 'extra' output to the cove lid?
A :Yes.
Q:Is it possible to use oil instead of water in the jacket? What is the max.temperature possible?
A : Yes. Water heating equipment temperature range RT to 100 celsius degree, oil heating equipment range RT to 300 celsius degee.
Q:Is it possible to connect a reflux column instead of the condenser?
A : No. Condenser is necessary, otherwise the gas can't became liquid. Our stanard fitting have condenser and liquid/vapor devider, it could finish the function of distillation and reflux.
Q: Accept customize or OEM?
A: Yes.
Q:Warranty ?
A : 1 year international warranty.
If any item interested in you, please conact us soon.
We waiting for your inquiry.
