Features:
High accuracy
Wide application
Advanced technology
More than 10 years' manufacture experience
Patent product

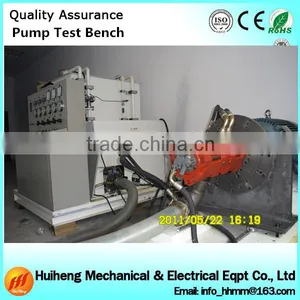

Custom Hydraulic cylinder test bench hydraulic test bench
Product Shows:
Specification Description:
Product Name |
Hydraulic Pump Test Bench | |
| Function | Suitable for the hydraulic maintenance and testing of construction machinery, industrial and marine equipment etc. | |
| Test Projects | 1)No-load Running and Testing. 2)Displacement Experiment. 3)Power (Volume) Test. 4)Pressure Pendulum Test. 5)Leakage Test. 6)Variable Characteristic Test. | |
| Performance Parameters | Appliance Standards | JB/T7039-2006, JB/T7041-2006, JB/T7043-2006 |
| Power Range | 75KW, 90KW, 110KW, 160KW Custom | |
| Pressure Setting Range | 0~35MPa | |
| Range of Flow | 0~400L/min | |
| Range of Speed | 0~2000r/min | |
| Speed Control | Bi-directional Frequency Control. | |
| Control Method | Manual or Computer Control. | |
| Temperature Control | Heating & Cooling ( water cooling or air cooling is optional). | |
| Composition of The Structure | Dynamic system, the hydraulic control system, the hydraulic oil filter temperature control system, the electrical control system, the data acquisition test system. | |
Our Certificate:
Guangzhou Huiheng Eqpt.Company is a professional and high-tech enterprise. The company boasts solid technical strength,scientific management, advanced production testing equipment.
By researching and designing hydraulic breakdown diagnosis equipment and learning advanced technology from similar international equipment, the company has developed high-level hydraulic chechout gauges and comprehensive testing tables among portable hydraulic testing series. The key parts of pump and motor accessories are made of imported raw-material and hydraulic comprehensive testing tables are exported to different countries.
The company is well-known for its technology of hydraulic system checkout and hydraulic pump repair. Due to considerate service, advanced technology and timely guarantee, the company is warmly welcomed by customers at home and abroad. OEM, ODM, Custom Service of Hydraulic Test Bench.
Services available:
Implementation Assistance
Installation
Training
Calibration
Preventive Maintencance
Technical Support
Relocation Assistance
Upgrade
Repair & Parts
Q1 .Are you in charge of freight and tax?
A :Our price are EXW(factory price). If you need help,we will certainly provide you support.
Q2. Any stock in factory?
A: Yes, but just small ones. Because our kneading machines are non-standard, all kneading machines are
designed and produced according to customer’s requirement. While we can show you similar machines that we made for local customers if you are interested in.
Q3 . How many days are needed to produce a HTB ?
A : 30 to 60 days.
Q4. I have some special request. Can you produce HTB on my request?
A: OEM & ODM. Products are Customized .We professional technician team will design on client’s requirements.
Q5. How to place an order?
A : Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production ( 20-60 days)→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale service.
