Specifications

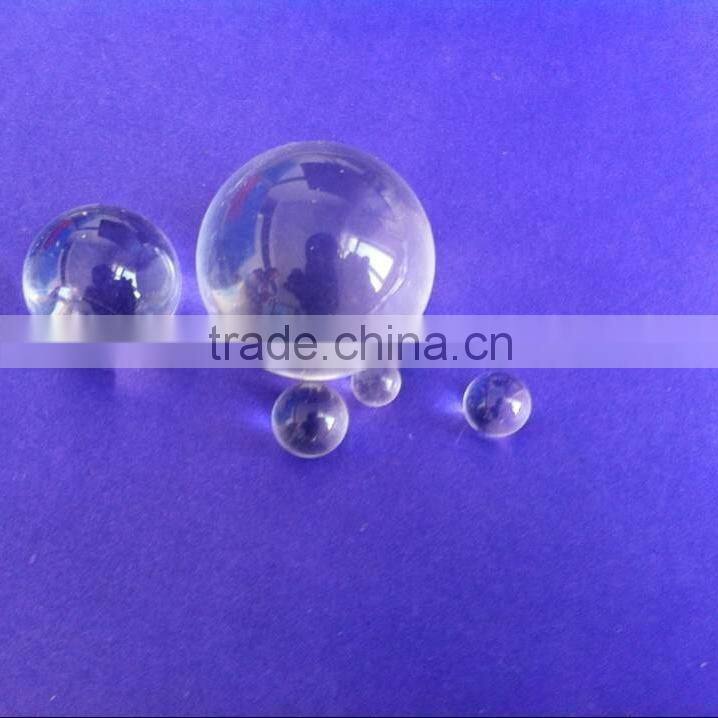

ball lens
1.material:optical glass
2.dia:1-100mm+/-0.002mm
3.elicticity:+/-0.001mm
4.surface accuracy<2lambda
Size 1-100mm 2lambda 80/50 BK7 ball lens for optical instruments prompt goods
Worldhawk can provide ball lens made of different materials, such as BK7 (glass),
a sapphire, and calcium fluoride, fluoride, barium, zinc sulfide, zinc selenide, or
according to customer's request of material.
Application:
Spherical Ball Lenses/Half ball lens are commonly used for laser collimating and focusing,
laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling.
Parameter:
Material |
K9, Sapphire, ruby, B270, JGS1 |
Supply ability |
5000pc/month |
Dimensions |
1-50mm |
Dimensions tolerance |
+/-0.002mm,+/-0.05mm |
Ellipticity |
+/-0.001mm |
Surface Quality |
60/40,40/20 |
Clear Aperture |
≥90% |
Flatness |
2λ |
Coating |
Upon customer request |
Contact us

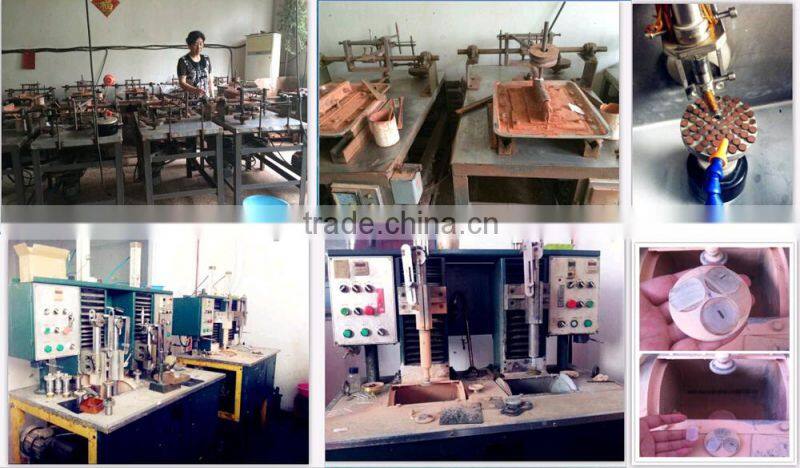

Facilities
Packaging Processing
Why us?
1 Service time: 24 hours waiting for you.
2.Fast Response: 2 hours within our worktime, 12 hours get off work.
3.Good Service: We can supply you from design,measure to coating one stop service.
4. MOQ: No MOQ requirement, you can set your order freely.
5. After-sales service: If bad quality, we will refund .
