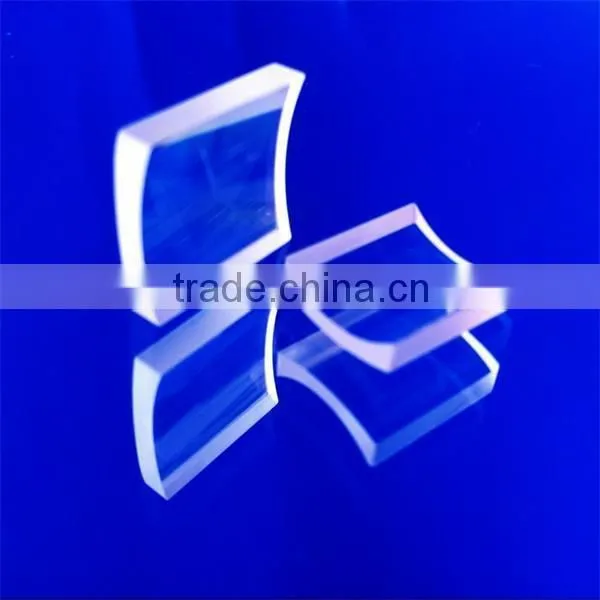

Help CenterBK7plano- Comex Meniscus Cylindrical Lens
Related Products
-
Optical Glass Equilateral PrismsUS$ 0.1 - 100MOQ: 1 Piece -
Optical Glass Sapphire WindowsUS$ 0.2 - 100MOQ: 1 Piece
-
Tianhua Cheapest Price Dove Prisms for SaleUS$ 0.2 - 100MOQ: 1 Piece
-
Clear Glass BK7 /K9 Ball LensesUS$ 0.2 - 100MOQ: 1 Piece
-
Optical Glass Ball Lenses,half Ball Lens,bk7,fused Silica,sapphire,caf2,znseUS$ 0.2 - 100MOQ: 1 Piece
Product Description
Optical cylindrical lens
is used to provide focusing power in one section only. For illumination or detection of light from line sources. Also used to anamorphic compression of beams and images. Especially widely used to anamorphic compression of LD (laser diode) output beam.
Specifications of optical cylindrical lens:
Material |
BK7 or Fused Silica |
Design Wavelength |
632.8 nm |
Design Index: |
Scott material |
BK7 |
n=1.5147±0.0005 |
Fused Silica |
n=1.45702±0.00005 |
Surface Figure |
x: λ/2; y: 2λ |
Diameter Tolerance |
+0.00, -0.15 mm |
Thickness Tolerance |
±0.2 mm |
Paraxial Focal Length |
±2% |
Centration |
<3 arc minutes |
Clear Aperture |
>85% |
Surface Quality |
60-40 scratch and dig |
Protective Bevel |
0.25 mm x 45° |

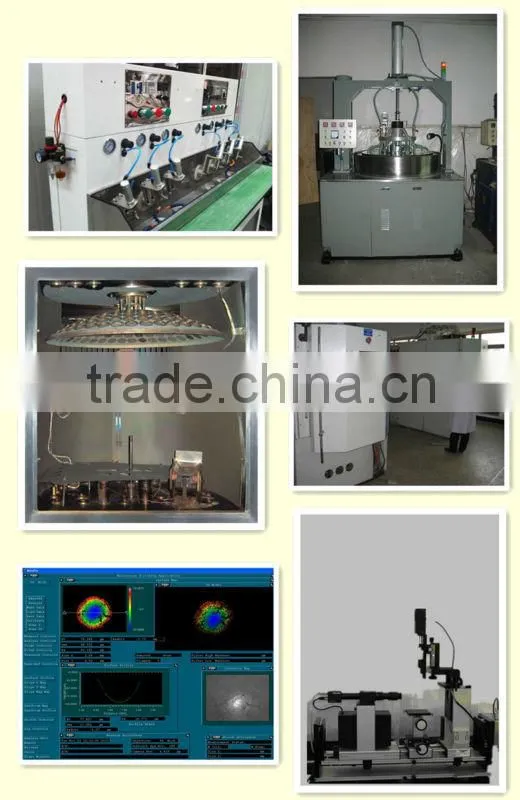

The processing:
- Cutting materials,
- preparing toolings and models,
- Coarse grinding,
- Polishing surfaces,
- Cleaning the lenses,
- testing,
- coating,
- testing Finish.
