Home > Lights & Lighting > LED Interior Lighting > LED High Bay Light > High Bay in Led High Bay Lights Light 120W

High Bay in Led High Bay Lights Light 120W

Name: High Bay in Led High Bay Lights Light 120W
Brand: Glare-LED
SKU: 131625971
Availability: InStock

High Bay in Led High Bay Lights Light 120W thumbnail-1

High Bay in Led High Bay Lights Light 120W photo-1

US$ 50 - 300 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

cree

Warranty(Years):

Input Voltage(V):

90-295V AC

Contact Supplier Request Quote Chat Now

Shenzhen Glare-LED Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source cree

Warranty(Years) 3

Input Voltage(V) 90-295V AC

Lamp Power(W) 120

Lamp Luminous Flux(lm) 8900

Lamp Luminous Efficiency(lm/w) 83

Color Temperature(CCT) Other, 4000k-4500K

Working Temperature(℃) -20, 60,

Working Lifetime(Hour) 50000, 50000

Lamp Body Material Aluminum

IP Rating IP65

Certification CE, EMC, LVD, PSE, SASO, UL

Place of Origin Guangdong, China

Brand Name Glare-LED

Model Number GL-S120C

Specifications

1.cree chip from American
an well power
3.3years warranty
4.explosion-proof

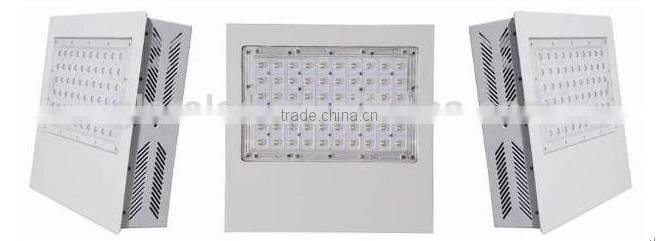

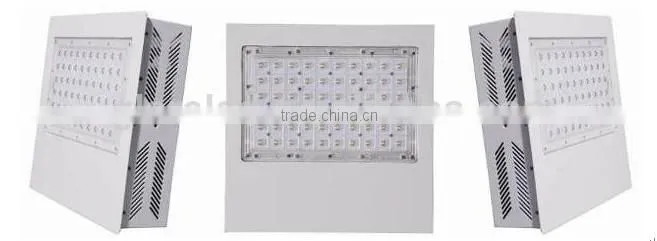

120W led canopy light in much favorable price hot selling!!!

ModelNo.: GL-S120C

Power: 120W

Name: 120W LED Canopy light

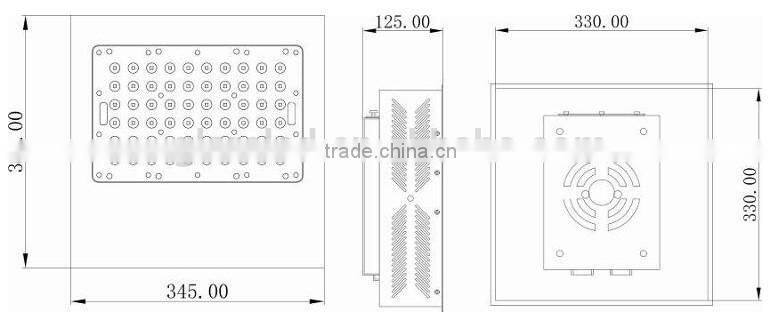

Product size:

1.Application:

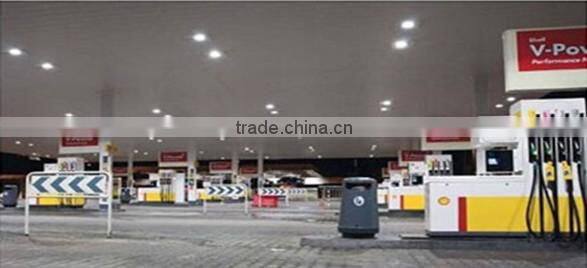

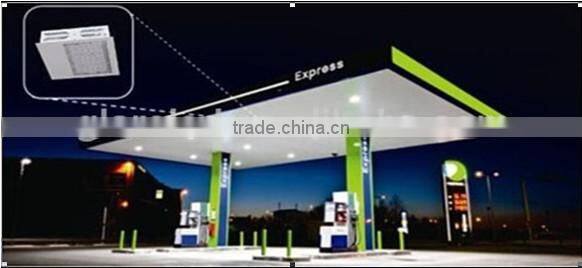

Gas Station,Carwash,Warehouse,Plant,High bay and low bay,Highway toll station,Tunnel,Pavilion Venue,Public transportation station… etc.

2.Advantage:

1. CE & RoHSCompliance

2. High-tech intelligent lighting control

3. IP65 ingress rating

4. Special optics design for the petrol station lighting

5. Safe and reliable

6. High-tech intelligent lighting control

7. Original CREE LEDs, energy saving and environmentally friendly,High Brightness, low decay LED to ensure good performance,

safety working current to ensure long life span of LED

8. Easy to replace the traditional lamp

3.Specification:

Item	Parameter
Driver Brand	Taiwan Mean Well
Input Voltage	AC90-295V
Frequency	50-60HZ
LED Lamp	CREE LEDs
Beam Angle	100 degree
Color Temperature	5000K
CRI	80
PF	≥0.95
Motion Detector	Optional
Operating Temperature	-20°C~60°C
Storage Temperature	-40°C~85°C
Waterproof Level	IP65
Lifespan	50,000hrs

4.LED parameter:

Brand Name	Rated Current	Working Current
CREE (USA)	1500mA	600mA

5.Heat sink features:

Extruding with high quality alloy extrusion, and progressing with special spray; panel use waterproof optical lens,

so that its feature is salinity resistance and high light transmittance.

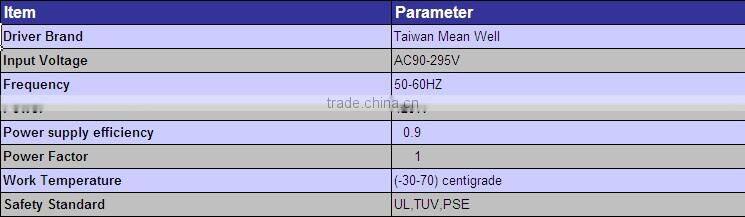

6.Power supply (driver) features:

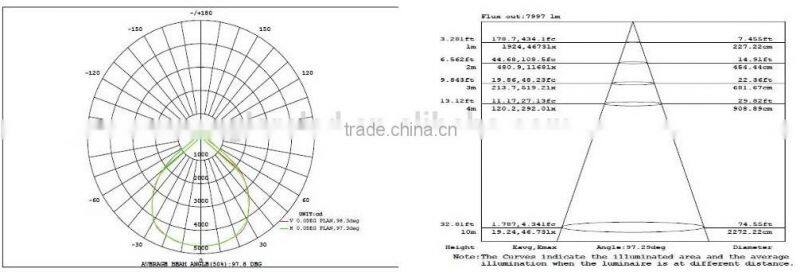

7.Light distribution:

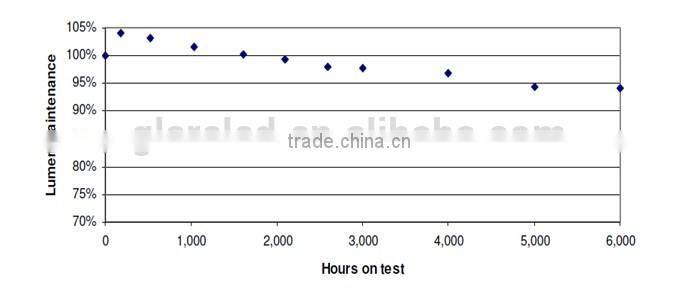

8.Light decay diagram for continuous lighting 6000 hours:

9.Energy saving:

120W LED high bay light can replace 400W HPS light; it can save 70% electricity.

10.Intelligent dimming:

When a customer arrives at your site (car, motor, pedestrian, etc.) LED Canopy Light detects movement and switches smoothly

from dimmed to full power. Your customer will get all the light needed at that moment, providing a good visual environment.

After your customer has left the forecourt the LED Canopy Light automatically switches smoothly back to dimmed power.

You are saving energy and you are still making sure the forecourt is adequately lit to provide safety and guidance.

11.Maintenance instructions:

1. Make sure cut power before maintenance

2. Regularly clean the lens to make good transmission of light.

3. Regularly clean housing and heat sink to make sure good heat dissipation.

4. Do not use water or highly corrosive solution for cleaning, had better use dry cloth

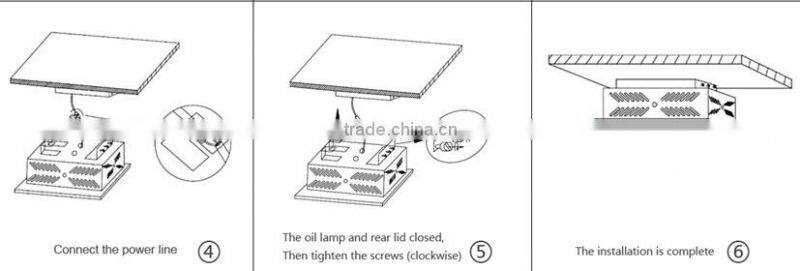

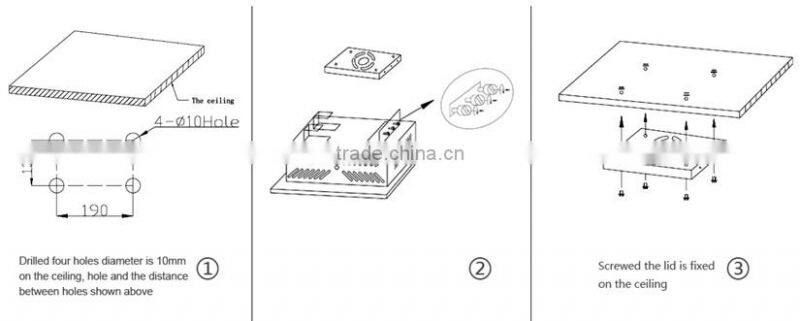

12. Installation instruction

1. Drill 4pcs ¢8 hole with 45mm depth on ceiling, put the expansion screws into the drilled hole, fasten the plates with nuts to the wall.

2. Keep good sealing in wire connection to avoid electric leakage.

3. Adopt waterproof measures during installation.

4. The lamp can’t be used in violation of any fire regulations.

5. Please look for professional electrician to install. Connection for three-core cable: red is for fire wire, blue is for null line, yellow is for ground wire.

6. Input voltage: AC90-295V 50-60HZ, do not exceed voltage and frequency range.

Instruction Picture

13..Packing Information:
