Round ZnSe Window, CVD ZnSe Flat Lens, CO2 Laser Window
- Changchun Beijing Dalian Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Optical CO2 Laser Window, BK7 Optical Flat Window Glass Lens
-
CVD Diamond Window, Sapphire Window, Sapphire Glass
-
Optical Window, Plane Parallel Windows, Sapphire Window, Customized Optical Window
-
CO2 Laser Window, Optical Fused Silica Window, Flat Window Lens
-
Plano Lens, Plano Window, Optical Plano Blank Material, Flat Lens
-
Optical UV Quartz Window Glass Coating
Product Details
| Place of Origin | Jilin, China | Brand Name | Tianhua | |
| Material | Other, ZnS, ZnSe, ZnS, CVD ZnSe, CaF2, BaF2, YAG Crystal, | Usage | Optical | |
| Structure | Other, flat | Shape | Plano |
Product Description

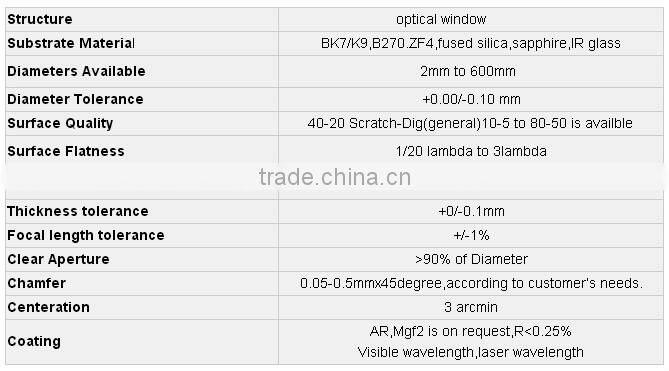

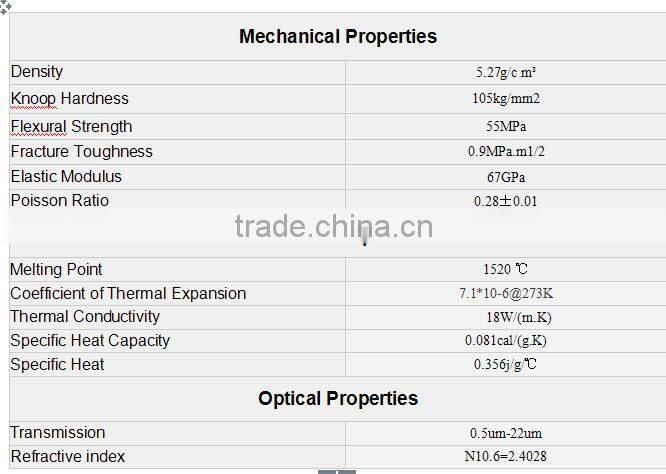

Specifications
Round ZnSe Window, CVD ZnSe Flat Lens, CO2 Laser Window
The parameter for CO2 ZnS/ZnSe laser lenses
Model | Diameter (mm) | Focal Length(mm) | Thickness (mm) | Material |
TH 12.7-2.0-1.8 | 12.0 | 50.8 | 1.8 | PVD ZnSe/GaAs |
TH 12.7-2.0-1.8 | 12.7 | 50.8 | 2.0 | PVD ZnSe/GaAs |
TH 12.7-2.0-1.8 | 12.7 | 50.8 | 3.0 | CVD ZnSe |
TH 14.5-1.5-1.8 | 14.5 | 38.1 | 1.8 | CVD ZnSe |
TH 14.5-2.0-1.8 | 14.5 | 50.8 | 1.8 | CVD ZnSe |
TH 15.26-1.5-1.8 | 15.26 | 38.1 | 1.8 | CVD ZnSe |
TH 16.0-1.5-2.0 | 16.0 | 50.8 | 2.0 | CVD ZnSe |
TH 16.0-2.0-2.0 | 16.0 | 50.8 | 2.0 | CVD ZnSe |
TH 18.0-1.5-2.0 | 18.0 | 38.1 | 2.0 | CVD/PVD ZnSe |
TH 18.0-2.0-2.0 | 18.0 | 50.8 | 2.0 | CVD/PVD ZnSe |
TH 18.0-2.5-2.0 | 18.0 | 63.5 | 2.0 | CVD/PVD ZnSe |
TH 18.0-3.0-2.0 | 18.0 | 76.2 | 2.0 | CVD/PVD ZnSe |
TH 18.0-4.0-2.0 | 18.0 | 101.6 | 2.0 | CVD/PVD ZnSe |
TH 19.05-1.5-2.0 | 19.05 | 38.1 | 2.0 | CVD/PVD ZnSe |
TH 19.05-2.0-2.0 | 19.05 | 50.8 | 2.0 | CVD/PVD ZnSe |
TH 19.05-2.5-2.0 | 19.05 | 63.5 | 2.0 | CVD/PVD ZnSe |
TH 19.05-3.0-2.0 | 19.05 | 76.2 | 2.0 | CVD/PVD ZnSe |
TH 19.05-4.0-2.0 | 19.05 | 101.6 | 2.0 | CVD/PVD ZnSe |
TH 20.0-1.5-2.0 | 20.0 | 38.1 | 2.2 | CVD ZnSe/GaAs |
TH 20.0-2.0-2.0 | 20.0 | 50.8 | 2.2 | CVD ZnSe/GaAs |
TH 20.0-2.5-2.0 | 20.0 | 63.5 | 2.2 | CVD ZnSe/GaAs |
TH 20.0-3.0-2.0 | 20.0 | 76.2 | 2.5 | CVD ZnSe/GaAs |
TH 20.0-4.0-2.0 | 20.0 | 101.6 | 2.5 | CVD ZnSe/GaAs |
TH 1.0”-2.0-3.0 | 25.4 | 50.8 | 3.0 | CVD ZnSe |
TH 1.5”-7.5-0.35” | 38.1 | 190.5 | 9.00 | CVD ZnSe |
The maximum sheet balnk is 450*450*35mm, maxium lens is Φ400*35mm.
Product Picture

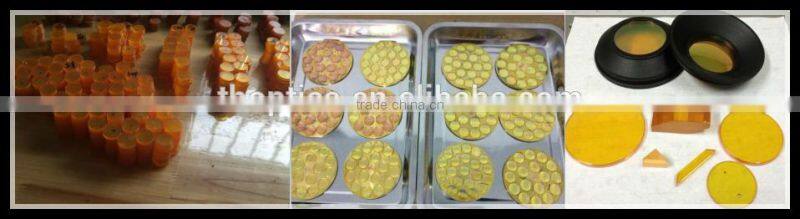

I.ZnSe products show
ZnSe window/ZnSe lens/Znse prism
II.Other products show
3.Optical Prism (Right angle prism, Equilateral triangular prism, Wedge prism, Dove prism, Powell prism, Roof prism,Corner Cube prism,Hexagonal prism, Polygonal prism, Beam splitting prism and so on)
4.Aspherical lens, Semi-finished blank lens, Filter, Waveplate, Optical window
5.Special Materials Lens (Germanium/Ge, Silicon/Si, Zinc selenide/ZnSe, Zinc sulfide/ZnS, Calcium fluoride/CaF2, Fluoride barium/BaF2, Magnesium fluoride/MgF2, YAG crystal, Arsenic Gallium material and so on infrared optical elements)
Application
The unique performance of ZnSe enables it to be the hottest material for blue light-emitting diode, the first choice for high power CO2 laser windows as well as the ideal material for protective windows and optical components in FLIR thermal imaging systems. Meanwhile, this material is extensively used in the windows and lenses for the medical and industrial thermal radiation measuring instrument and the infrared spectormeter. And it is also a excellent coating material.
TH optics have our own factory and advanced optical equipments that can ensure effectively control every aspect of the product process to ensure product quality, and reduce losses and reduce costs.
Equipments
Technology
Contact Person
TH Optics pay attention to every details of the package and take a different packaging process that according to the quantity and shape of the product.
TH Optics has the account by FedEx, DHL, UPS and enjoy preferential discount.
