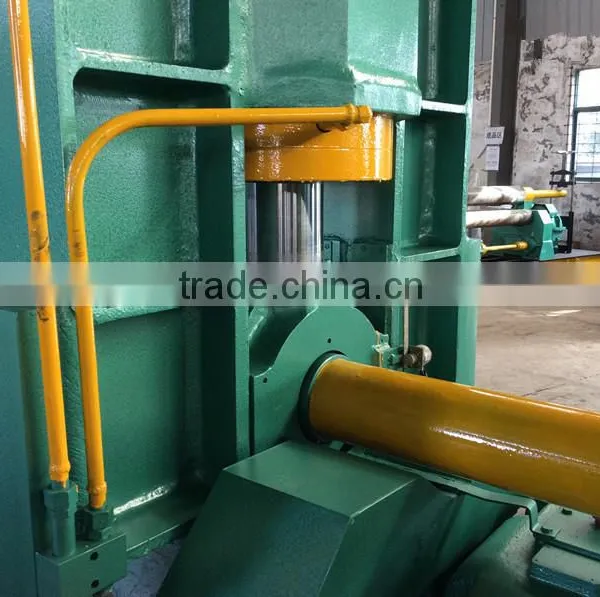

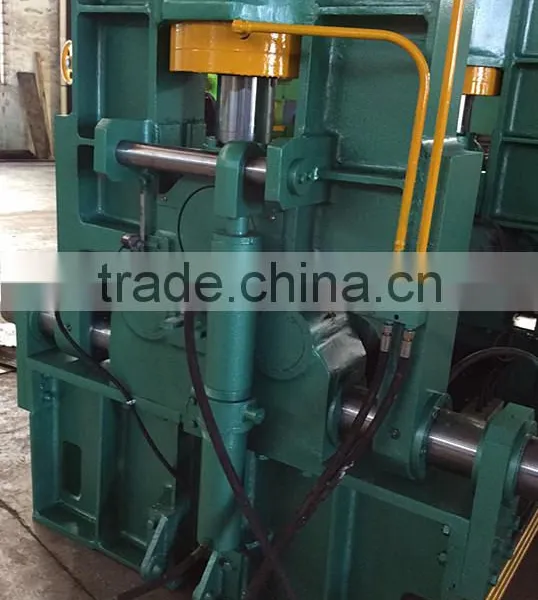

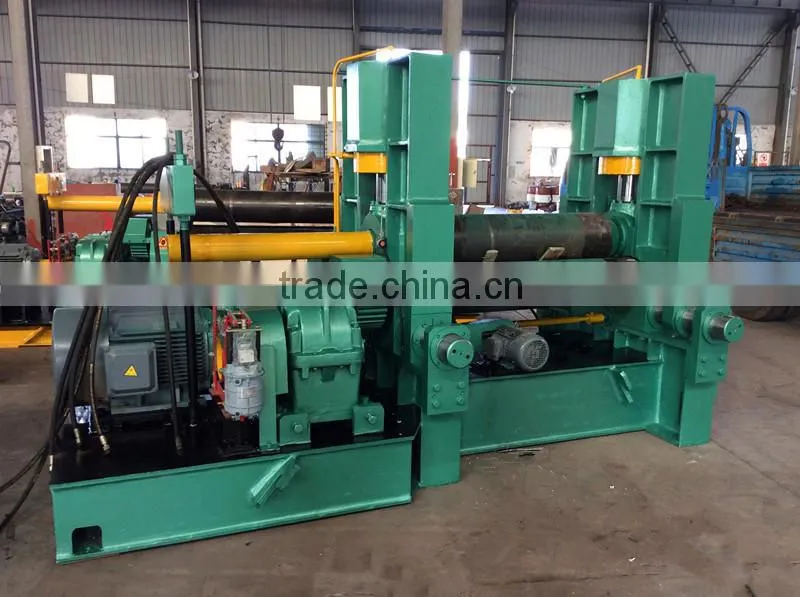

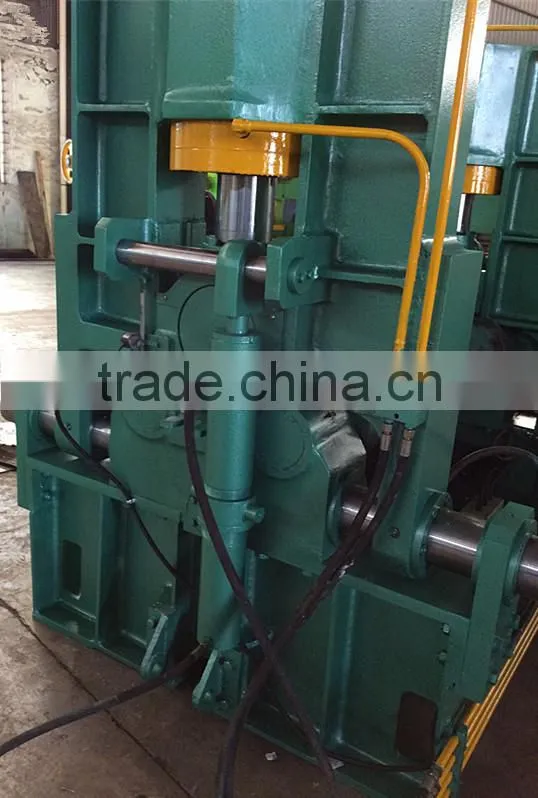

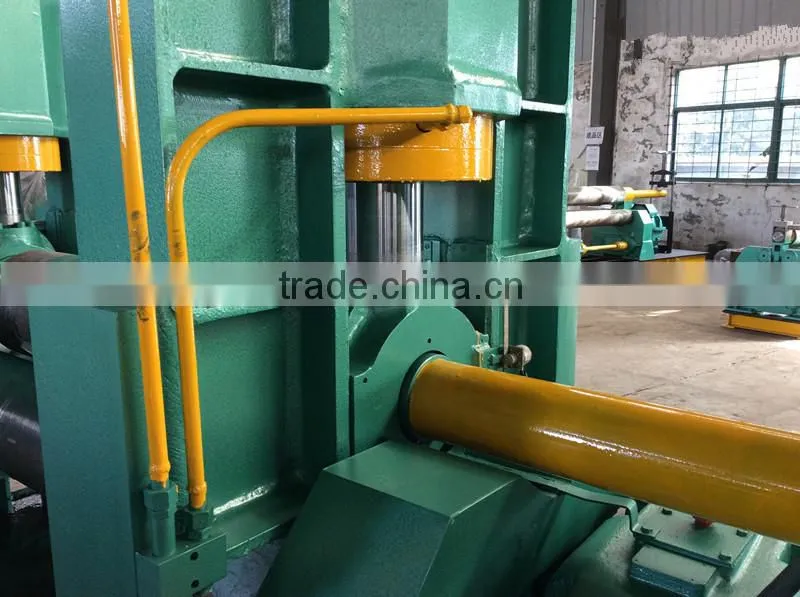

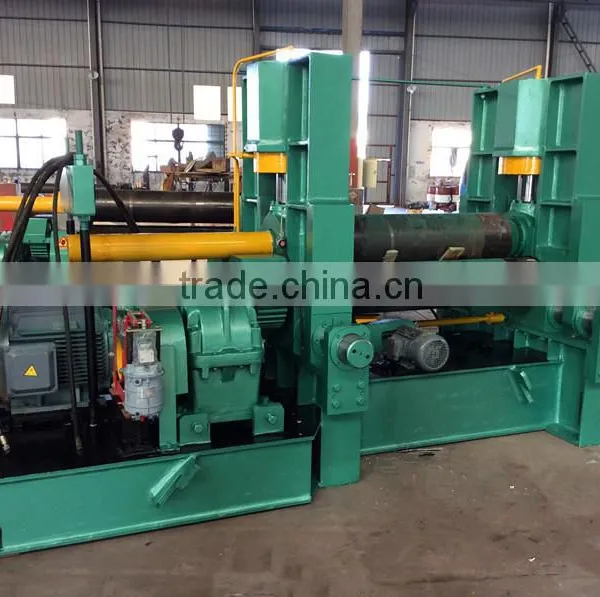

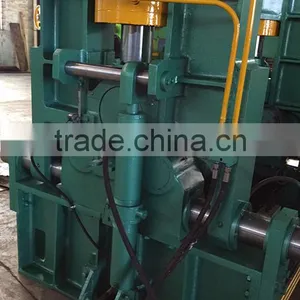

Help CenterCNC Hydraulic Upper Roller Universal Metal Rolling Machine
Related Products
-
CNC Bending Machine Hydraulic 4 Rolls Metal Plate Rolling MachineNegotiableMOQ: 1 Set -
Cone Rolling MachineNegotiableMOQ: 1 Set
-
W11S 3 Roller Plate Bending Machine WITH COMPETIVE PRICENegotiableMOQ: 1 Set
-
Rolling Machine to Round Cylinder/ Cone/ ConicalNegotiableMOQ: 1 Set
-
Hydraulic 4 Roll Bending MachineNegotiableMOQ: 1 Set
Specifications
w11s plate rolling machine 12*2500
1.Plate bending machine
2.High precision
3.Auto bending machine
2.Export standard configuration
No. |
Item |
Remark |
1 |
Electric parts |
Schneider(France) |
2 |
Hydraulic parts |
YUKEN (Japan) |
3 |
Seals |
VALQUA(Japan) |
4 |
Forged Rolls |
NANGANG (China) |
5 |
PLC |
OMRON (Japan) |
6 |
Main Motor |
Siemens(Germany) |
7 |
Touch screen |
Touch win (Canada) |
8 |
valve |
Taiwan UOSHEN |
3.Technical data
No. |
Specification |
Unit |
Value |
1 |
Model |
|
W11S-12×2500 |
2 |
Max bend width |
mm |
2500 |
3 |
Max pre-bend thickness |
mm |
12 |
4 |
Max bend thickness |
mm |
10 |
5 |
The diameter of up-roller |
mm |
Φ300 |
6 |
The diameter of down-roller |
mm |
Φ165 |
7 |
The distance of two bottom rollers |
mm |
Φ270 |
8 |
The yielding limit of bend sheet |
Mpa |
σs≤245 |
9 |
Main motor power |
KW |
11 |
10 |
Hydraulic motor power |
KW |
5.5 |
1. Warranty: 14 months after delivery the goods.
2. Payment: 30% down payment and 70% paid after receiving the copy of the documents.
3. Delivery: 30 days after receiving 30% down payment.
4. Loading: Plastic cover coat, through containers
5. Technique support and service: support twice operating training, first one is at my factory during the processing time, second one at the buyer’s factory during the re-installation/testing period. We will send our engineers go to buyer’s factory help to re-install this machine if customer required, and the customer need to pay for heir flight tickets(go and back), room and board, local travel cost.
