High Quality Digital Calendar Clock and Temperature Desktop

FOB Price

US$ 100 - 700 / Piece

2 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Glareled
Model Number	GLCT-O12inch88:8℃/℉-Red/Amber/Green	Usage	Outdoor
Tube Chip Color	Other	Display Function	Other
Pixels	16mm	Screen Dimension	12inch

Packaging Details

wooden box package, 1box/2pcs

Product Description

LED clock time and temperature display

Specifications:

Height	Model Number	Number format	Max Size Character	Housing Dimension (H×W×D)	Power (Max)	Net weight	Remarks
5''	GLC-O5inch88:88:88-Red/Amber/Green	88:88:88	127mm	W650mm D100mm H200mm	24w	5.5kg	outdoor use(total waterproofed IP65 iron cabinet)
5''	GLCT-O5inch88:8°C/°F-Red/Amber/Green	88:8°C/°F	127mm	W520mm D100mm H200mm	16W	4kg	outdoor use(total waterproofed IP65 iron cabinet)
6''	GLC-O6inch88:88:88-Red/Amber/Green	88:88:88	15.24mm	W700mm D90mm H220mm	24w	7.5kg	outdoor use(total waterproofed IP65 iron cabinet)
6''	GLCT-O6inch88:8°C/°F-Red/Amber/Green	88:8°C/°F	15.24mm	W540mm D90mm H220mm	16W	5.5kg	outdoor use(total waterproofed IP65 iron cabinet)
10''	GLC-O10inch88:88:88-Red/Amber/Green	88:88:88	254mm	W108mm D100mm H340mm	36w	13kg	outdoor use(total waterproofed IP65 iron cabinet)
10''	GLCT-O10inch88:8°C/°F-Red/Amber/Green	88:8°C/°F	254mm	W950mm D100mm H340mm	24W	10kg	outdoor use(total waterproofed IP65 iron cabinet)
12''	GLC-O12inch88:88:88-Red/Amber/Green	88:88:88	304.8mm	W1290mm D100mm H380mm	60w	20kg	outdoor use(total waterproofed IP65 iron cabinet)
12''	GLCT-O12inch88:8°C/°F-Red/Amber/Green	88:8°C/°F	304.8mm	W1080mm D100mm H380mm	40W	14.5kg	outdoor use(total waterproofed IP65 iron cabinet)
16''	GLC-O16inch88:88:88-Red/Amber/Green	88:88:88	406.4mm	W1660mm D100mm H487mm	96w	26kg	outdoor use(total waterproofed IP65 iron cabinet)
16''	GLCT-O16inch88:8°C/°F-Red/Amber/Green	88:8°C/°F	406.4mm	W1360mm D100mm H487mm	64W	20kg	outdoor use(total waterproofed IP65 iron cabinet)
24''	GLC-O24inch88:88:88-Red/Amber/Green	88:88:88	609.6mm	W2382mm D100mm H690mm	156w	68kg	outdoor use(total waterproofed IP65 iron cabinet)
24''	GLCT-O24inch88:8°C/°F-Red/Amber/Green	88:8°C/°F	609.6mm	W1895mm D100mm H690mm	104W	49kg	outdoor use(total waterproofed IP65 iron cabinet)

Technical Features:

Control system: Glare-led Time and Temperature system.
Indoor or outdoor brightness available.
Display format: 88:88 or 88:88:88 or customized.
Time display: time(T).
Temperature display: Celsius(℃) , Fahrenheit (℉) the clients can change with remote control.
Set brightness level freely.
Different sizes and colors are available that fit your flexible needs and wants.
A finished cabinet makes installation trouble-free with no additional fabrication needed.
Customized face designs.
High intensity LEDs allow for us to manufacture a more efficient display.
Automatic nighttime dimming capability with built-in light sensor.
Battery backup to retain the display’s memory in case of power outages.
Up to 255 pieces can be networked, and two kinds of remote control methods with 8-button operation.

Series Parameters:
Item					Technical Parameters
Color					Red, amber, green, blue or white
Digit height					4", 6", 8", 10", 12", 16", 18",20",24",27",32", 36", 40", 48", 60", 72" etc.
Digit design					4", 6", 8",10", 12", 16",18",20",24",27",32": standard digit.
Brightness control					Auto-dimming by sensor or remote control.
Display Dimming					Over 8 levels of automatic intensity adjustment.
Viewing Angle					Indoor: H120° , V 100°, Outdoor: H 120° , V100° or customized.
Service Access					Rear access or customized.
Master/Slave					Single/Double/Three/four sides, use one control card, all working. or customized.
Casing Material					Steel, aluminum available.
Front cover					Displays with 32" & over digit high are without front cover; others with front cover.
Waterproof Level					IP 54 from 4" to 32" (outdoor), IP65 front & IP54 rear from 32" to 72" (outdoor).
Temperature sensor					Default economical sensor, All sensor is available for more exact request.
LED Driving mode					Constant current
Power Input					110/220VAC , 60Hz/50Hz
PC Communication					Rs232
Communication Distance					8m
Remote control type					300ft / 100m, range of RF remote control.
Continuous Working Time					Unlimited
Lifetime of LEDs					>100,000 Hours
Installation Method					Hanging, mounting or per custom design.
Working Temperature					Indoor: -10°C ~ 40°C,Outdoor: -20°C ~ 60°C, Humidity: 15%~95%RH
Display format					88:88 or 88:88:88
GPS					Optional

Product Parameters:
Digital Height	Casing Material	Casing Size (mm)	Waterproof Level	Typical Brightness	Viewing Angle
6 inch	1)Steel cabinet 2)Front cover 3)Rear service	729228100	N/A	100CD/sqm	H:120°/ V:100°
8 inch		774294100	Frontside:IP65 Backside:IP54	1)4000cd/sqm without front cover. 2)The brightness is lower adding front cover but contrast degree is higher, so clearer for outdoor view. 3)With auto-dimmer. 4)With economical temperature sensor.
10 inch		1144347100
12 inch		1384400100
16 inch		1122507100
20 inch		1339610100
24 inch		1339610100		1)With auto-dimmer. 2)With economical temperature sensor.
27 inch		1939788100
32 inch		2287917100

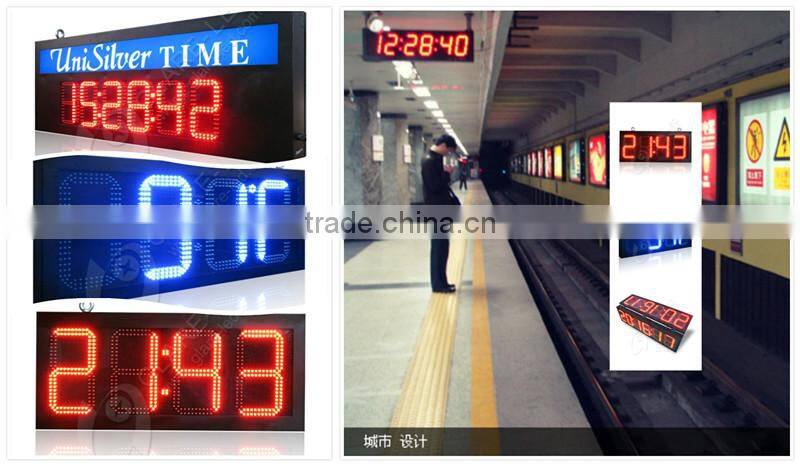

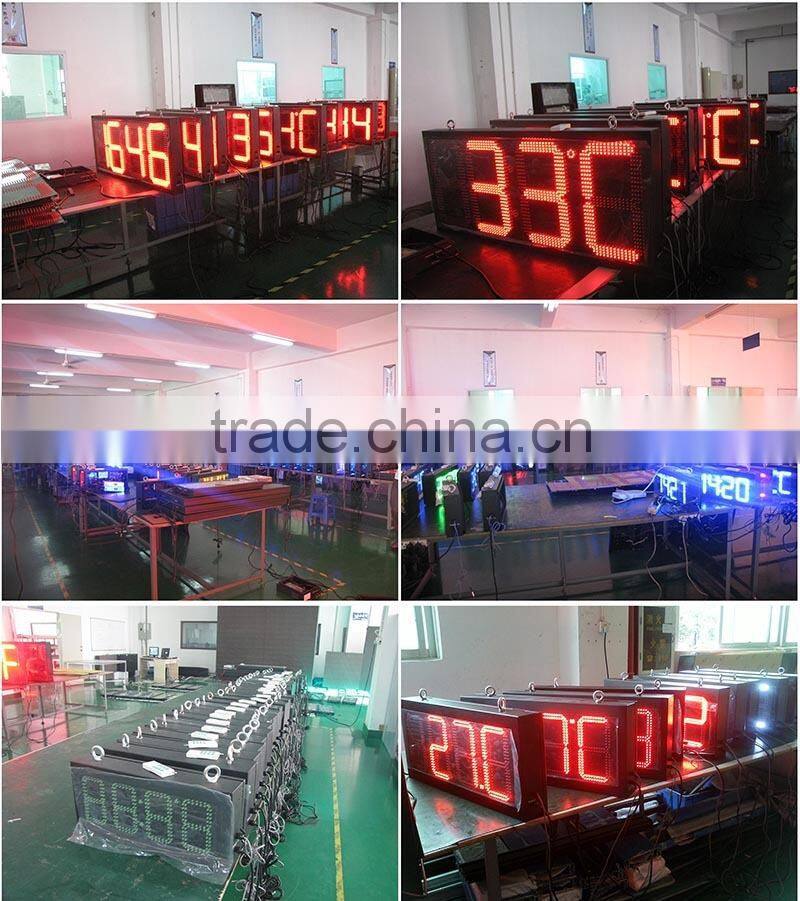

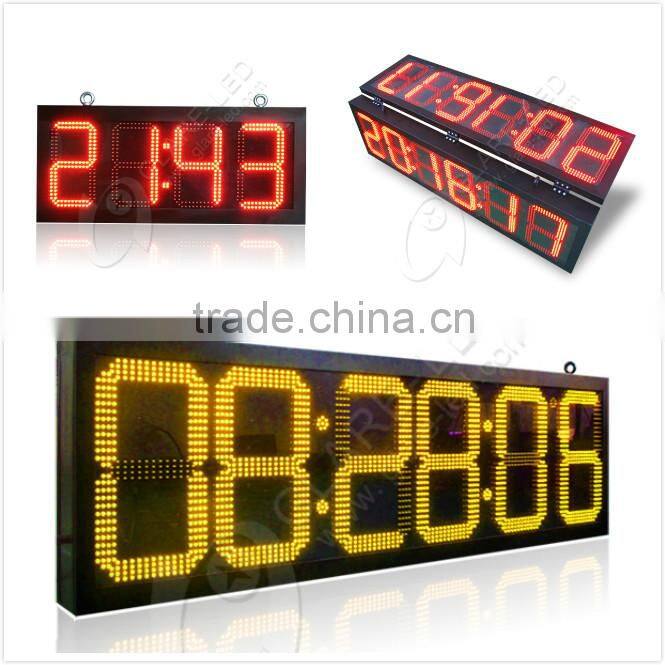

Product pictures:

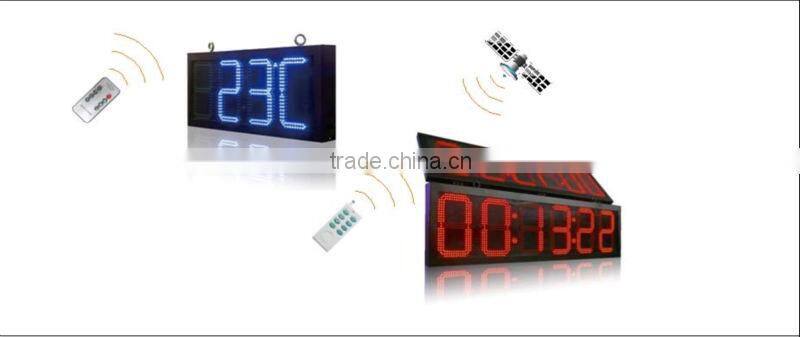

GPS locating:

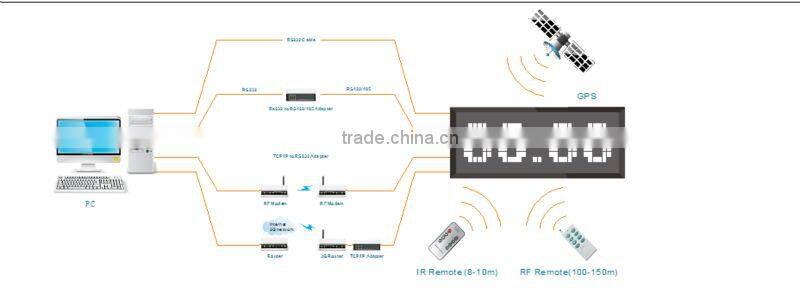

System Connectivity:

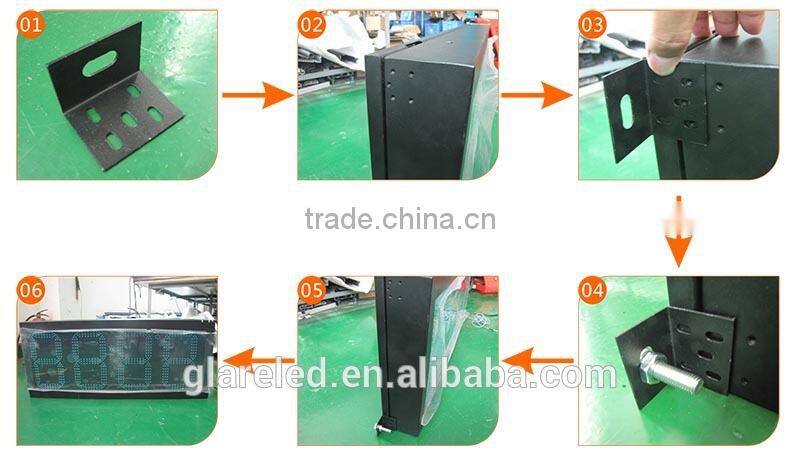

Installation:

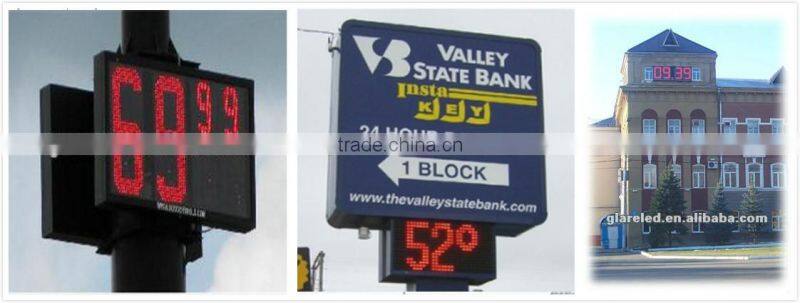

Our successful projects:

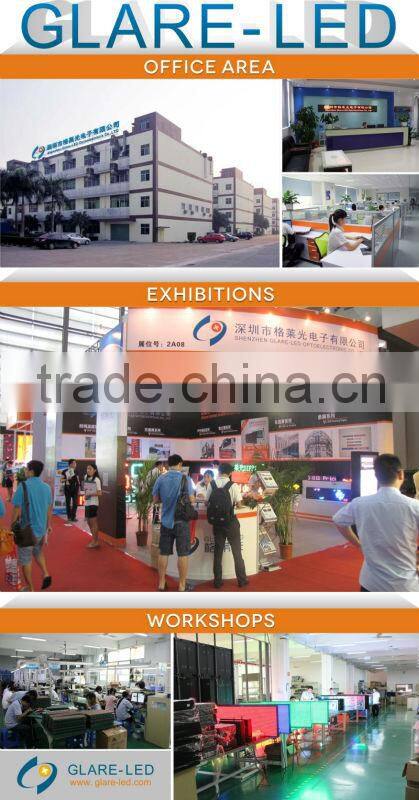

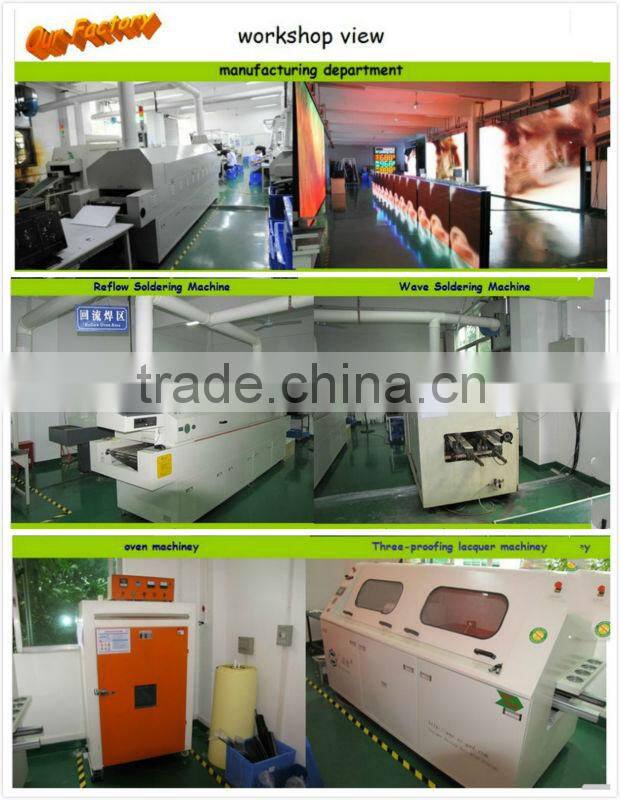

Our factory:

Our team:

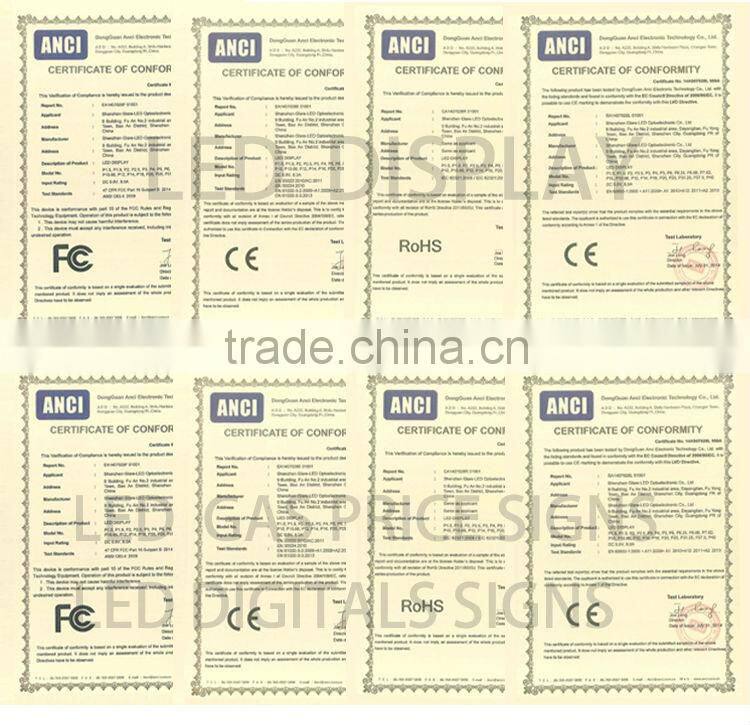

Certifications:

Shipping & Payment:

1)TT 50% As deposit +50% Balance before shipping after examine goods.

2)West union, L/C at sight etc. are all ok.

3)In general, 5~7 days after deposit, Accurate production time depends on production schedule.

4)Sample will be shipped by DHL.

5)Normal export wooden and Carton case package.

6)We will always tracking and helping you get the best Purchasing experience.
