Help CenterAUO 17.3 Inch Tft Lcd Display With FHD 1920x1080 G173HW01 V0 Industial Panel Wide Screen
Related Products
-
Cheap Price Chimei 3.5 Inch Tft Lcd Panel LQ035NC111 Wide TemperatureNegotiableMOQ: 1 Piece -
AUO G190EG02 V0 High Color Gamut Wide View Angle Led Driver Integrated ROHS Compliant 19"lvds 1920x1080US$ 200 - 400MOQ: 1 Piece
-
AA050MC01 Mitsubishi Wide Screen Industrial Use 5 Inches Tft Lcd Color MonitorUS$ 100 - 280MOQ: 1 Piece
-
AUO Stable Supply 5.7" TFT LCD Screen RoHS Certificate for Medical DeviceUS$ 40 - 80MOQ: 1 Piece
-
LQ080V3DG01 8 Inch Tft Lcd Module for Laser Treatment InstrumentUS$ 20 - 300MOQ: 1 Piece
Specifications
auo tft lcd display G173HW01 V0 wide screen:1)FHD 1920x1080
2)Wled backlight, led driver integrated;
3)Wide view angle
AUO industrial panel G173HW01 V0 17.3 led wide screen with 1920x1080 definition industrial panel :
G173HW01 V0 auo 17.3 tft lcd display:
1)FHD 1920x1080;
2)Wled backlight, led driver integrated;
3)Wide view angle.
Advantage:
1)Backlight life is more than 50k hrs;
2)Wide screen;
3)High color gamut 72%;
4)Surface: Glare treatment;
5)Backlight replaceable;
6)Ideal for industrial use;
7)Original guaranteed;
8)Competitive prices;
9)Offer 12 months of warranty;
10)Original technology support.
Specification:
| AUO industrial grade 17.3 inch tft lcd (G173HW01 V0) data sheet | |
| Module number | G173HW01 V0 |
| Resolution | 1920x1080, FHD |
| Pixel Pitch | 0.1989(H) x 0.1989 (mm) |
| Active Area | 381.888(H) x 214.812(V) (mm) |
| View angle | R/L/U/D 80/80/60/80(Deg) |
| Mode | TN |
| LCD Surface | Glare,3H |
| Number of Colors | 16.7M |
| Electrical Interface | Dual channels LVDS |
| Brightness | 400 cd/m2 |
| Contrast ratio | 600:1 |
| Outline dimension | 403(W) x 240(H) x 12.5(D) (mm) |
| Gross weight | 1080 (Max.) |
| Backlight | WLED |
| LED Life (hrs.) | 50K, long life time |
| Power Consumption (W) | 17.0W(Typ.) |
| Supply Voltage (V) | 3.3V |
| Response time | 40 (ms) |
| Operate temperature | 0-70 (°C) |
| Storage temperature | -20-70 (°C) |
| Package |
AUO original package; 10pcs/carton; Carton size:524x321x360 mm |
According to customers' various requests, we can match all accessories which inclusive of driver board, touch-screen, LED backlight & LVDS cables. TFT LCD, LCD panel, LCD display,LCD screen, LCD monitor, LCD module from 2.2 inch to 24 inch.
Quality promised, 100% original,fast delivery,also enjoy one year guarantee !

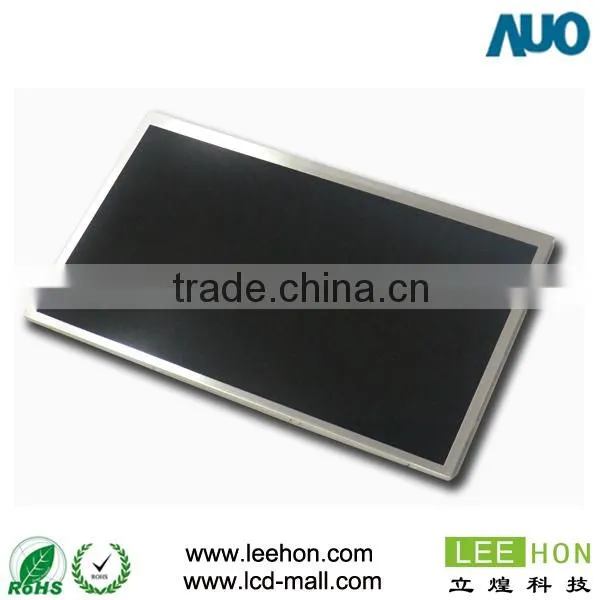

G173HW01 V0 17.3" tft lcd real panel show:
How to order:
We are the one of the main agents of AUO/Tianma/Mitsubishi/CMI/Innolux, mainly deal with 2.2"-22" industrial lcds, we provide professional service for all of our customers, and for prices matters, we surely have the priority, and all the products came from original factory directly to save more cost for customers.
Package details:
The reason why you chose Hangzhou Leehon!
* We are one of the main agents for AUO/Tianma/Innolux/Mitsubishi/CMI five brands tft lcd moulds in China from 2002, so from here you can get the most competitive price for real products;
* All the panels are 100% original and brand new, no fake panels exists, quality promised; And also Provided 12 months of warranty, you can return any fake panels and charges by us, so from here you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check then;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from here you can get more convenient delivery;
* Products are sold to more than 20 countries, regular supplier of Marvell(USA), EUROCOMPOSANT(Franch), Jabert Italia srl(Italy) etc., so from here you can get more stable supplying promise;
* Superior After-Sale service.
More products' info, pls welcome to visit our website .
