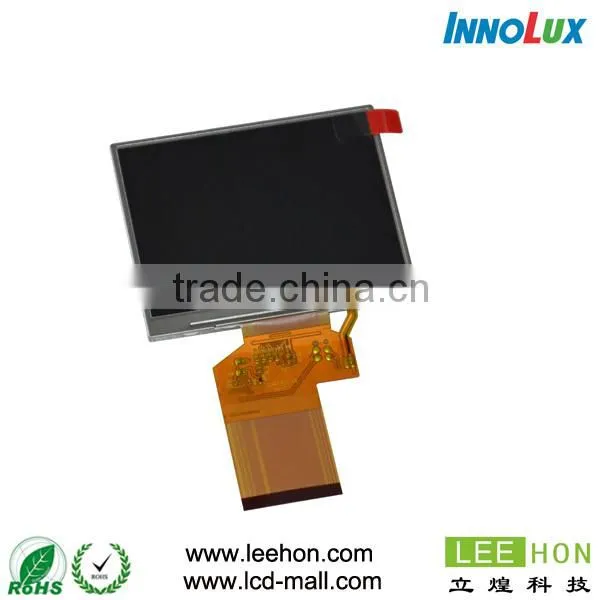

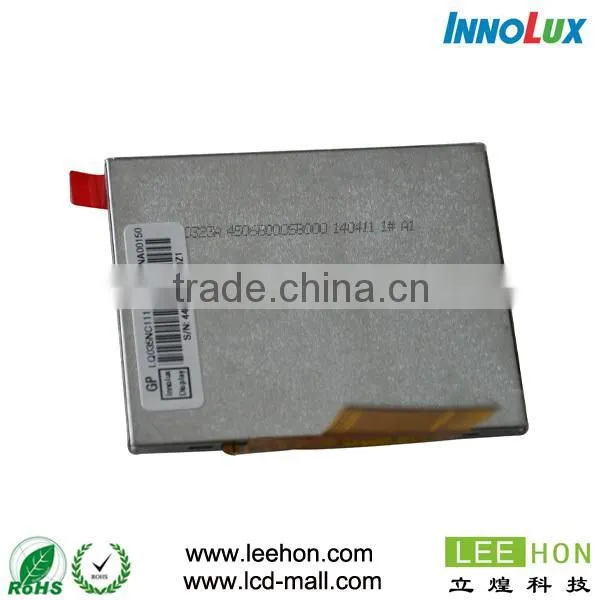

TFT display LQ035NC111 3.5 inch lcd touch screen module :
| Module number | LQ035NC111 |
| Resolution | 320(RGB) x 240 |
| Pixel Pitch | 0.219 x 0.219 (mm) |
| Active Area | 70.08 x 52.56 (mm) |
| View angle | R/L/U/D 60/60/50/55(Deg) |
| Mode | TN |
| LCD Surface | Anti-glare,3H |
| Number of Colors | 16.7M |
| Electrical Interface | Digital 24-bit RGB/SERIAL RGB/CCIR656/CCIR601 |
| Brightness | 250 cd/m2 |
| Contrast ratio | 400:1 |
| Outline dimension | 76.9(W) x 63.9(H) x 3.3(D) |
| Gross weight | 40g (Typ.) |
| Backlight | LED |
| Supply Voltage (V) | 3.3V |
| Response time | 10(ms) |
| Operate temperature | -20-60 (°C) |
| Storage temperature | -30-70 (°C) |
| Package | TBD |
Quality promised, 100% original,fast delivery,also enjoy one year guarantee !
* Leehon is one of the main distributor for AUO/Tianma/Innolux/Mitsubishi/CMI brands tft lcd modules in China from 2009, so from here you can get the most competitive price for real products;
Range of size:
* Leehon can provide the lcd from 2.2 inch to 24 inch with stable supplied;
Quality control system:
* All the panels are 100% original and brand new, no fake panels exists, quality promised; And also Provided 12 months of warranty, you can return any fake panels and charges by us, so from here you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check then;
The most competive price for real products:
* Here will send the products from the original factory directly to control the price and quality.
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from here you can get more convenient delivery;
Our parters:
* Products are sold to more than 20 countries, regular supplier of Marvell(USA), EUROCOMPOSANT(Franch), Jabert Italia srl(Italy), Russian Federation(OOO West-Ost ) etc., so from here you can get more stable supplying promise; to be continue......
After-Sale service:
*Leehon will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;
To choose the best TFT LCD solution:
*Pls choose your interested tft lcd with model number,size, resolution, brightness, operating temperature or life time in our alibaba website https://img13.fr-trading.com,
*More products' info, pls welcome to visit our website
*To get the latest prices and delivery time, pls feel free to contact me.
