Home > Consumer Electronics > Display & Accessories > LCD Module > Tianma TM047NBH03 4.7 Inch Touchscreen Lcd Panel

Tianma TM047NBH03 4.7 Inch Touchscreen Lcd Panel

Name: Tianma TM047NBH03 4.7 Inch Touchscreen Lcd Panel
Brand: Tianma
SKU: 131621303

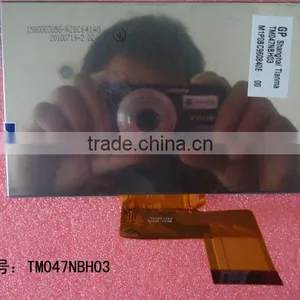

Tianma TM047NBH03 4.7 Inch Touchscreen Lcd Panel thumbnail-1

Tianma TM047NBH03 4.7 Inch Touchscreen Lcd Panel photo-1

US$ 10 - 50 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Tianma

Model Number:

TM047NBH03

Contact Supplier Request Quote Chat Now

Hangzhou Leehon Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

HK/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Tianma

Model Number TM047NBH03

Type TFT

Tianma TM047NBH03 4.7 inch touchscreen lcd panel:

Features:

1)Original guarantee;

2)Competitive prices;

3)Offer 12 months of warranty;

4)Original technology support.

Specification:

Model	TM047NBH03, 4.7" touch screen
Size	4.7"
Resolution (pixel)	480(RGB) X 272
Active Area(mm)	103.680 x 58.752
Pixel Pitch (mm)	0.216 x 0.216
Display Mode	TM with Normally White
Uniformity(%)	80
NTSC(%)	50
Color Depth	16.7M
Viewing Angle (R/L/U/L)	50/70/70/70
Brightness (cd/m²)	280
Contrast Ratio	500:1
Response Time (ms)	25(on+off)
Outline Dimension (mm)	114.3x72.5x5.0
Weight (g)	76.5
Light Source	LED
Temperature Range	operating: -20 to +60°C storage: -30 to +70 °C
Humidity	operation: 90 (%RH) storage: 90 (%RH)
Surface Treatment	Anti-Glare(3H)
Electrical Interface	RGB 24 bits
ROHS Compliance	ROHS Compliance

Quality promised, 100% original,fast delivery,also enjoy one year guarantee !

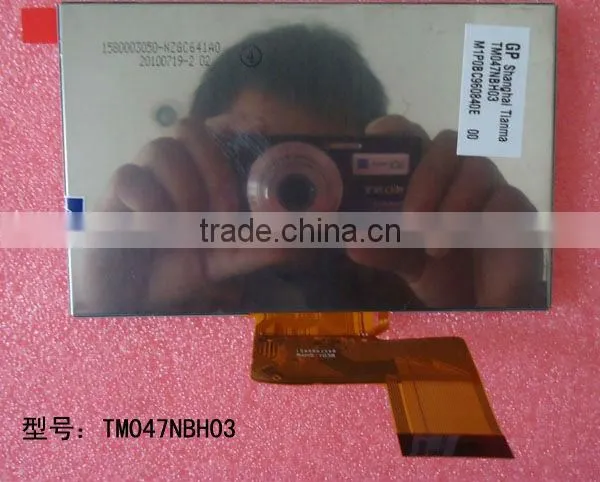

Tianma TM047NBH03 4.7 inch touchscreen lcd panel real panel show:

LCD Configuration:

How to order:

We are the one of the main agents of AUO/Tianma/Mitsubishi/CMI/Innolux, mainly deal with 2.2"-22" industrial lcds, we provide professional service for all of our customers, and for prices matters, we surely have the priority, and all the products came from original factory directly to save more cost for customers.

Package details:

Hangzhou LEEHON Technology Co., Ltd:

Main brand:

* Leehon is one of the main agents for AUO/Tianma/Innolux/Mitsubishi/CMI five brands tft lcd moulds in China from 2002, so from here you can get the most competitive price for real products;

Range of size:

* Leehon can provide the lcd from 2.2 inch to 24 inch with stable supplied;

Quality control system:

* All the panels are 100% original and brand new, no fake panels exists, quality promised; And also Provided 12 months of warranty, you can return any fake panels and charges by us, so from here you can enjoy the real panels directly from original factory;

* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check then;

The most competive price for real products:

* Here will send the products from the original factory directly to control the price and quality.

* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from here you can get more convenient delivery;

Our parters:

* Products are sold to more than 20 countries, regular supplier of Marvell(USA), EUROCOMPOSANT(Franch), Jabert Italia srl(Italy), Russian Federation(OOO West-Ost ) etc., so from here you can get more stable supplying promise; to be continue......

After-Sale service:

*Leehon will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;

To choose the best TFT LCD solution:

*Pls choose your interested tft lcd with model number,size, resolution, brightness, operating temperature or life time in our alibaba website https://img13.fr-trading.com,

*More products' info, pls welcome to visit our website and turn to english version,

*To get the latest prices and delivery time, pls feel free to contact me.
