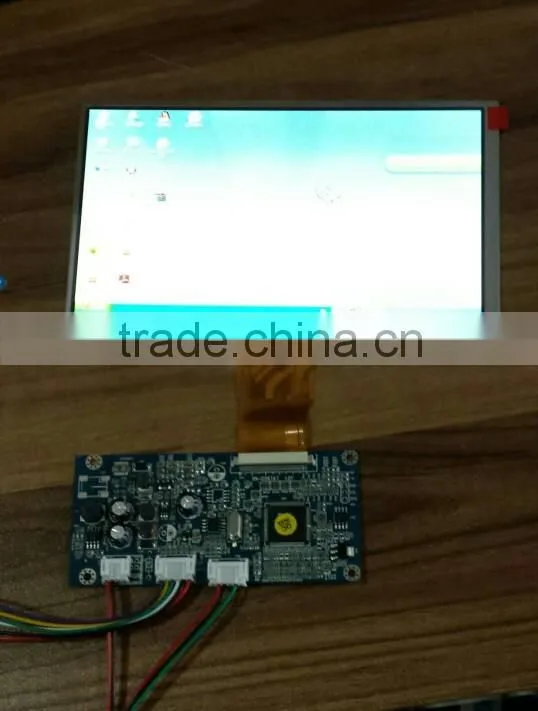

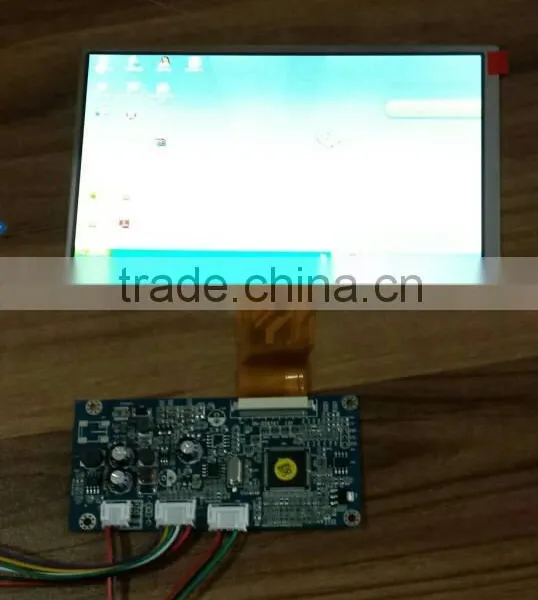

-30 degree Wide view angle lcd 7" 1024x600
| Module number | LH070IC50-25A37 V1 |
| Resolution | 1024x600 |
| Dot pitch | 0.0642(W) × 0.1790(H) mm |
| Active Area | 154.21(W) × 85.92(H) mm |
| View angle | R/L/U/D 80/80/80/80(Deg) |
| Pixel Arrangement | RGB-stripe |
| Surface Treatment | AG |
| Electrical Interface | Digital |
| Brightness | 350(cd/m2) |
| Contrast ratio | 800:1 |
| Outline dimension | 164.9(W) ×100.0(H) ×2.8(D) mm |
| Backlight | LED |
| Response time | 25(ms) |
| Display mode | TN, Normally White, Transmissive |
| Operate temperature | -30-85(°C) |
| Storage temperature | -30-85(°C) |
| Display Colors | 262k/16.7M |
| Power Supply Voltage | 3.3v(Typ.) |
| Backlight lifetime | 20k hrs(Min.) |
| Power consumption | 1.9W(Typ.) |
