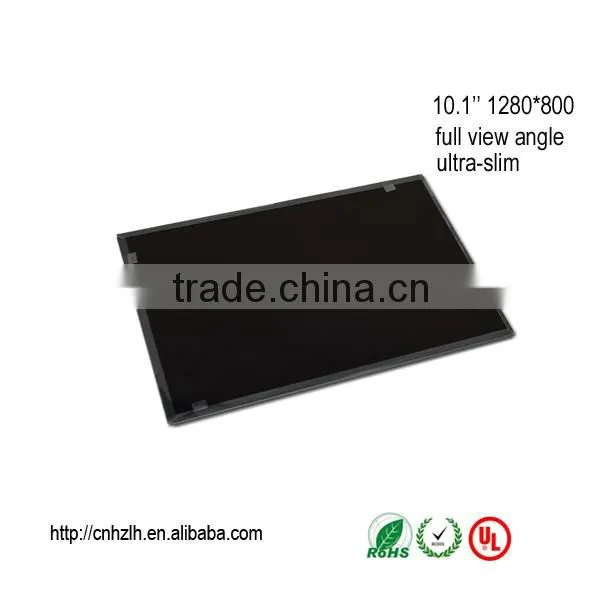

BOE BP101WX1-206 ultra thin 10.1 inch tft lcd module
| Module number | BP101WX1-206 |
| Resolution | 1280X800 |
| Pixel Pitch | 0.1695X0.1695 (mm) |
| Active Area | 216.96X135.6 (V) (mm) |
| View angle | R/L/U/D 80/80/80/80 (Deg) |
| Mode | IPS |
| LCD Surface | Anti-glare,3H |
| Number of Colors | 16.7M (6-bit+Hi-FRC ) |
| Electrical Interface | LVDS (1 ch,8-bit) |
| Brightness | 330 cd/m2 |
| Contrast ratio | 600:1 |
| Outline dimension | 228.6X149.2X4.59 (D)(mm) |
| Gross weight | 150g g(Typ.) |
| Backlight | WLED |
| LED Life (hrs.) | 15K(Min.) |
| Power Consumption (W) | 3.4W(Typ.) |
| Supply Voltage (V) | 3.3V |
| Response time | 25(ms) |
| Operate temperature | 0-50 (°C) |
| Storage temperature | -20~60 (°C) |
| Package | BOE original package |
| 60pcs/CTN | |
| CTN size: 520×420×260 mm | |
| Net weight:11kgs |

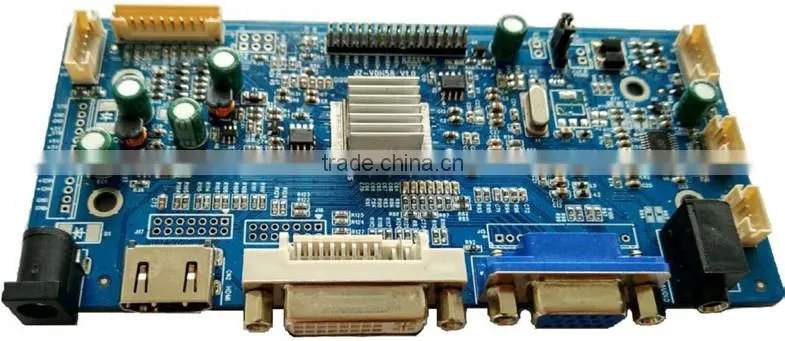

we have controller board to support all types interface ,such as HDMI/VGA/DVI/AV etc.
Hangzhou LEEHON Technology is established in 2009, nearby beautiful Hangzhou West Lake. We are specialized in supplying clients with professional display solutions. now our products are sold to more than 20 countries, products including monochrome screen, color TFT LCD screen ( GD /Industrial grade, AV /car class, PID /General Application) and we can add other related products such as driver board, control board, cables, inverter and touch panel,open frame etc accessories for our customers.
If you have any question, please contact us
Attn:Susan Wang
Skype: leehon806
QQ: 1217563193
Tel: 0086-571-86684288
MP:0086-13136181392
>>Quality ensurance
100% original and brand new, no fake panels exists !
12 months of warranty !
You can enjoy the real panels directly from original factory;
>>Packing ensurance
Original package and Seal for batch orders, all the products are
We have professional support team to provide effective service, we are young and full of passion! in original package from original factory directly, and all the packages have labels and serial number!
>>Delivery ensurance
We have international logistic center in HK, Shanghai and Shenzhen, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
We have professional support team to provide effective service, we are young and full of passion!
More products' info, welcome to visit our website: !
