Tianma 5 inch wide screen lcd module for industrial grade use TM050RDH03
- 150000 Piece / Pieces per Month
- Shanghai/Hongkong
- Credit Card
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Tianma | Model Number: | TM050RDH03 |
Type: | TFT |
Product Description

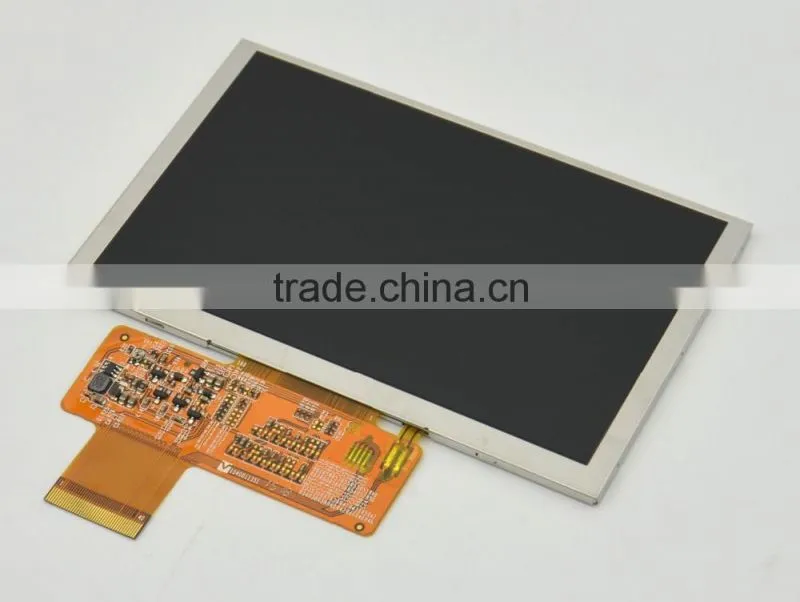

Tianma 5 inch wide screen lcd module for industrial grade use TM050RDH03
Module number | TM050RDH03 |
Resolution | 800x480 |
Width:Height | 15:9 |
Pixel pitch | 0.135(W) × 0.135(H) mm |
Active Area | 111.1(W) × 67.9(H) mm |
View angle | R/L/U/D 70/70/50/70(Deg) |
Pixel Arrangement | RGB Vertical Stripe |
Surface Treatment | Anti-glare, Hard coating(3H) |
Electrical Interface | Parallel RGB |
Brightness | 300(cd/m2) |
Contrast ratio | 600:1 |
Outline dimension | 120.7x75.8x3.10mm(Typ.) |
Panel Weight | TBD |
Backlight | WLED |
Response time | 20(ms) |
Display mode | TN, Normally White, Transmissive |
Operate temperature | -20-60(°C) |
Storage temperature | -30-70(°C) |
Display Colors | 16.7M(8-bit) |
Power Supply Voltage | 3.3v(Typ.) |
Lifetime | 20k(Min.) hrs |
Features | --WLED backlight; |
--Wide screen; | |
--Anti-glare surface. | |
Application | Portable GPS, Handheld TV or MP4 PMP etc. |
Also suitable for industrial grade use. |
We also can provide total set such as lcd panel + touch +ad board +osd board + cables, quality promised.
Why you choose us:
-- We're one of the main agents of AUO/Tianma/CMI/Innolux/Mitsubishi TFT- LCD module in China mainland. On price matters, we surely have the advantage as we have the direct source for original panels;
-- Quality promised. We promise, all the panels are 100% original and brand new, no fake panels exists, and A/A+ grade for all AUO panels(as only auo has grade standard for the five brands). Also Provide 12 months of warranty, you can return any fake panels and charges by us;
-- Strict package. All the products are in original package from original factory, and all the packages have labels and serial number from original factory, you can check then;
-- Quick delivery. As we have huge stock, orders usually takes 24 hours to 7 working days before shipment;
-- Various Express supported. We also have long cooperation relationship with DHL/UPS/EMS/FedEx/TNT Express companies AND we can get the most competitive freights from them;
-- Convenient delivery. We also have international logistic center in Hongkong to support your orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you;
-- Original factory technical support;
-- Superior After-Sale service. Your purchase is not the end, it's the beginning of our service.
