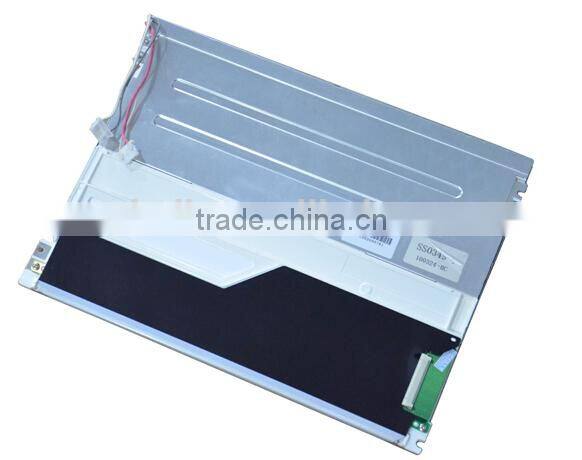

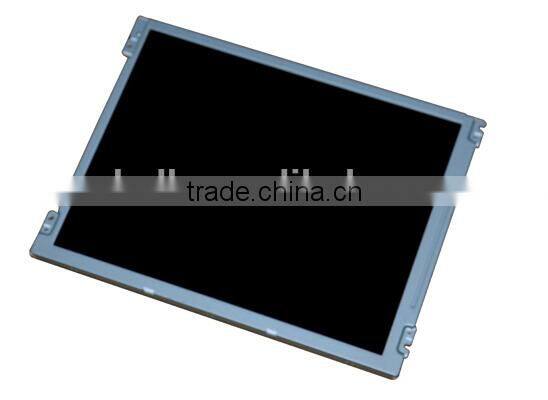

Sharp 10.4 Inch Tft Lcd Display LQ104V1LG92

Name: Sharp 10.4 Inch Tft Lcd Display LQ104V1LG92
Brand: Sharp
SKU: 131619533
Availability: InStock

Sharp 10.4 Inch Tft Lcd Display LQ104V1LG92 thumbnail-1

Sharp 10.4 Inch Tft Lcd Display LQ104V1LG92 photo-1

US$ 1 - 50 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Japan

Brand Name:

Sharp

Model Number:

LQ104V1LG92

Contact Supplier Request Quote Chat Now

Hangzhou Leehon Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Japan

Brand Name Sharp

Model Number LQ104V1LG92

Type TFT

Sharp 10.4 inch tft lcd display LQ104V1LG92 Specification:

Module number	LQ104V1LG92
Display size	10.4 inch
Resolution	640X480
Width:Height	4:3
Pixel Pitch	0.330×0.330(mm)
Active Area	211.2×158.4(mm)
View angle	R/L/U/D 70/70/50/60 (Deg)
Mode	TN, normally white, transmissive
Number of Colors	16.7M(6 bit + Hi-FRC)
Electrical Interface	LVDS(1ch, 8-bit)
Brightness	330 cd/m2
Contrast ratio	400:1
Panel Weight	520g(Typ.)
Outline dimension	240x179.2x10.3mm(Typ.)
Backlight	CCFL
Power Consumption	6.2W
Response time	10/25(ms)
Operate temperature	-30-80 (°C)
Storage temperature	-30-80 (°C)
Product features	-- Backlight replaceable; -- High Color Gamut.
Application	Special for Game Machine use and Industrial grade use.

We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.

Besides AUO/Tianma/CMI/Innolux/Mitsubishi five brands original tft lcd panels agency, we also deal with Used/Stocked tft lcd panels in huge stock. Used/Stocked panels only for those EOL panels, when after the panels' EOL time there are still have many people look for the EOL panels for their high quality, so it results the market that the used EOL panels will be replaced their backlight and be used to meet some people's needs in some fields. And pls don't worry, all the used panels we provided are 95% new or more, same quality as original ones, also offer 1 year of warranty period, and no problem for batch orders by quick delivery.

WE PROMISE: YOU CAN RETURN ANY DEFECTIVE PRODUCTS TO US AND FREE OF YOUR CHARGE. WE HAVE MANY TIMES QUALITY CHECK BEFORE DELIVERY TO PROMISE PERFECT PRODUCTS REACH TO YOUR SIDE.
