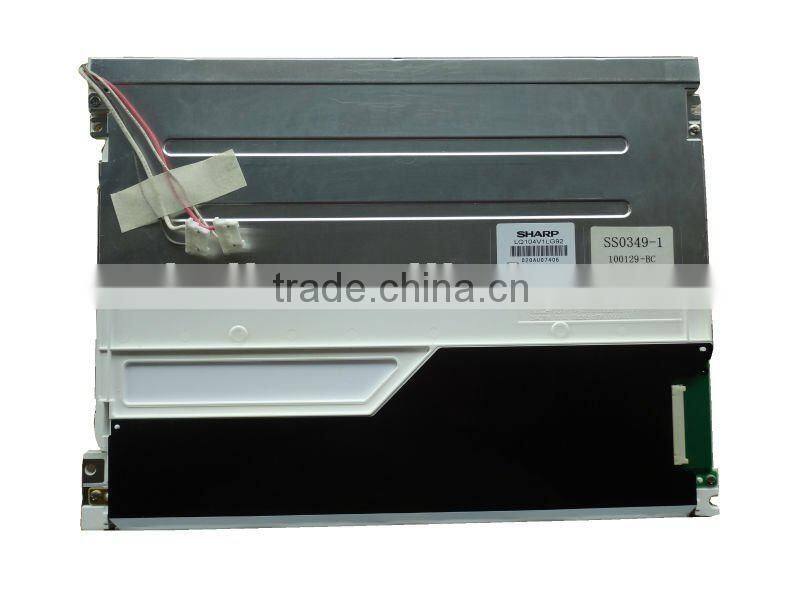

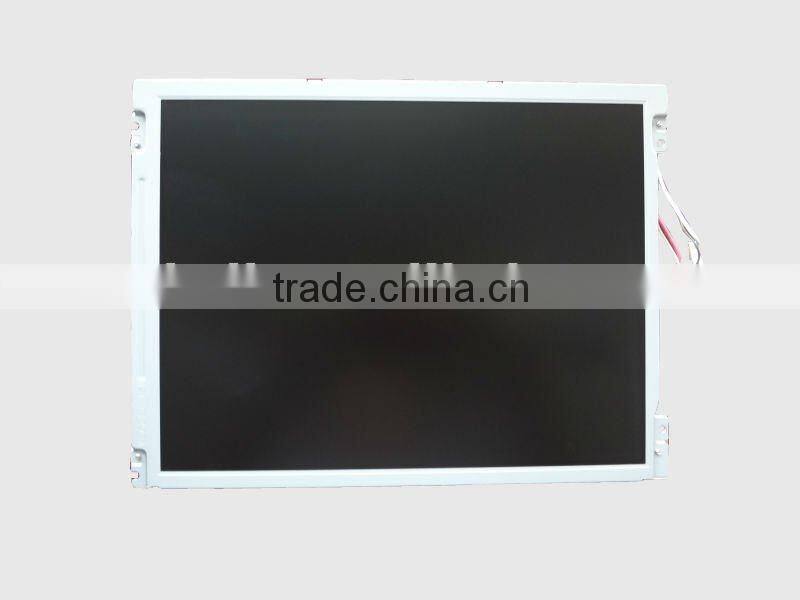

Help CenterLQ104V1LG92 10.4" Lcd Panel With CCFL Backlight LVDS Interface
Related Products
-
NEC 8.4 Inch Tft Lcd Panel NL10276bc16-06 Wide View AngleUS$ 200 - 360MOQ: 1 Piece -
BOE HT185WX1-300 Lcd Panel 18.5 InchUS$ 1 - 150MOQ: 1 Piece
-
15" CCFL Lcd Display Screen LQ150X1DG11 for Industrial ApplicationUS$ 1 - 200MOQ: 1 Piece
-
NEC NL6448BC33-46 10.4 Inch Tft Display Stock With Low PriceNegotiableMOQ: 1 Piece
-
Sharp TFT Type 12.1 Inch LCD Module 800X600US$ 25 - 80MOQ: 1 Piece
Advantges:
1)Competitive prices;
2)Offer 12 months of warranty;
3)Low price
| 10.4 inch industrial tft lcd (LQ104V1LG92)data sheet | |
| Module | LQ104V1LG92 |
| Size | 10.4 inch |
| Resolution | 640 x 3(RGB) x 480 |
| Pixel pitch | 0.330×0.330 (mm) |
| Active area | 211.2(H) x 158.4(V) (mm) |
| View angle | R/L/U/D 70/70/50/60 (Deg) |
| Pixel configuration | R.G.B. Vertical Stripe |
| Signal Interface | LVDS |
| Brightness | 330(cd/m2) |
| Contrast ratio | 400:01:00 |
| Outline dimension | 240(H) x 179.2(V) x 10.3(D) (mm) |
| Weight | 520g (Max.) |
| Backlight | CCFL |
| Response time | 10/25 (Tr/Tf) (ms) |
| Operate temperature | -30-80(°C) |
| Storage temperature | -30-80(°C) |
| Operate humidity | 5-95 (%RH) |
| Storage humidity | 5-95 (%RH) |
How to order:
We are the one of the main agents of AUO/Tianma/Mitsubishi/CMI/Innolux, mainly deal with 2.2"-22" industrial lcds, we provide professional service for all of our customers. For prices matters, we surely have the priority, and all the products came from original factory directly to save more cost for customers.
Hangzhou LEEHON Technology is established in 2009, nearby beautiful Hangzhou West Lake. We are specialized in supplying clients with professional display solutions. now our products are sold to more than 20 countries, products including monochrome screen, color TFT LCD screen ( GD /Industrial grade, AV /car class, PID /General Application) and we can add other related products such as driver board, control board, cables, inverter and touch panel,open frame etc accessories for our customers.
please contact us to get newest price
Attn:Susan Wang
Skype: leehon806
QQ: 1217563193
Tel: 0086-571-86684288
MP:0086-13136181392
>>Quality ensurance
100% original and brand new, no fake panels exists !
12 months of warranty !
You can enjoy the real panels directly from original factory;
>>Packing ensurance
Original package and Seal for batch orders, all the products are
We have professional support team to provide effective service, we are young and full of passion! in original package from original factory directly, and all the packages have labels and serial number!
>>Delivery ensurance
We have international logistic center in HK, Shanghai and Shenzhen, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
We have professional support team to provide effective service, we are young and full of passion!
More products' info, welcome to visit our website: !
