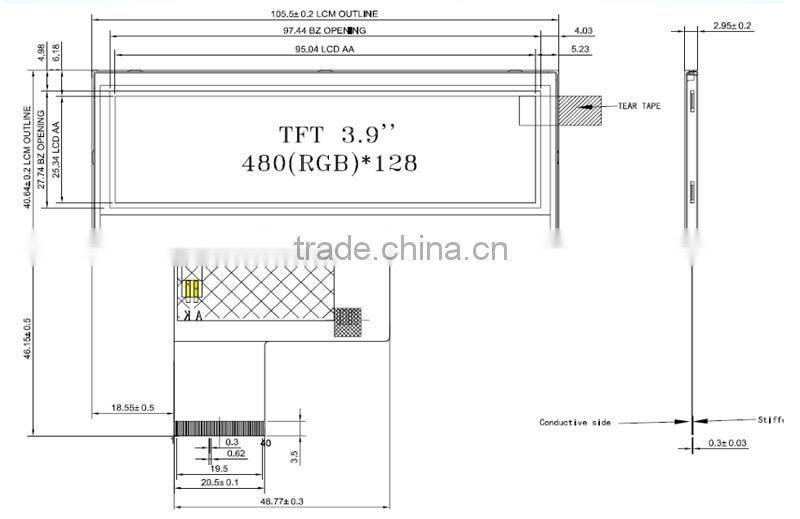

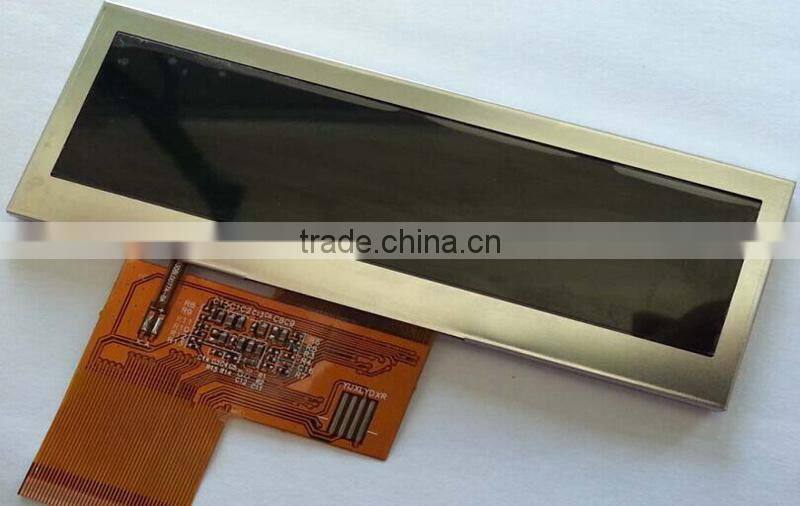

3.9'' bar type lcd panel with 480x128 for refrigerator
| product name | 3.9 inch Bar type LCD panel |
| Model No.: | LH039WQ01 |
| Size: | 3.9 inch |
| Resolution: | 480X128 |
| Brightness (cd/m²) | 500-1000nits feasible, customization;sunlight readable and Strong light visible |
| Electrical interface | MCU / RGB / customization |
| Application: | refrigerator, washing machine, air conditioner etc and other applications with special requirement on display sizes |
| touch panel: | Resistive touch panel and Capacitive touch panel are optional |
| others: | Support Custom HMI (Human Machine Interface) total solution Software with Operation System |
| Product List For Bar Type LCD panels: | |
| 2.9" QVGA 128*320 | LH029Q01 |
| 3.9" QVGA 128*480, | LH046WV01 |
| 4.6" WVGA 800*320 | LH039WQ01 |
| 5.8" WVGA 800*320 | LH058WV01 |
| 6.5" WVGA 800*320 | LH065WV01/LH065WV02 |
| 7.2" WXVGA 1280*370 | LH072WX01/LH072WX02 |
| 8.8" WUXGA 1920*480 | LH088WU02 |
| 9.1" WXGA 1280*480 | LH091WX02 |
Applications:
Non standard format display –Landscape, portrait mode
White Home Electrical Appliance Industry
Transportation application –Rail signage, bus, subway, station,
airport etc
Public Signage –Bank, store, café, restaurant, elevator etc
Customizing design to unlimited application
Hangzhou LEEHON Technology is established in 2009, nearby beautiful Hangzhou West Lake. We are specialized in supplying clients with professional display solutions. now our products are sold to more than 20 countries, products including monochrome screen, color TFT LCD screen ( GD /Industrial grade, AV /car class, PID /General Application) and we can add other related products such as driver board, control board, cables, inverter and touch panel etc accessories for our customers.
If you have any question, please contact us
Attn:Susan Wang
Skype: leehon806
Tel: 0086-571-86684288
>>Quality ensurance
100% original and brand new, no fake panels exists !
12 months of warranty !
You can enjoy the real panels directly from original factory;
>>Packing ensurance
Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number!
>>Delivery ensurance
We have international logistic center in HK, Shanghai and Shenzhen, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
We have professional support team to provide effective service, we are young and full of passion!
More products' info, welcome to visit our website: !
