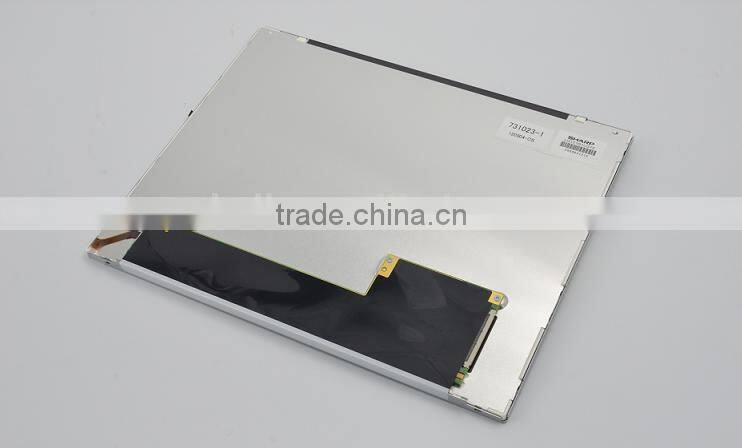

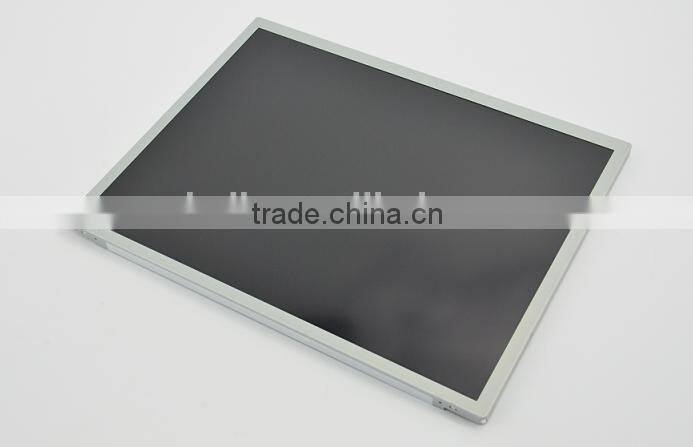

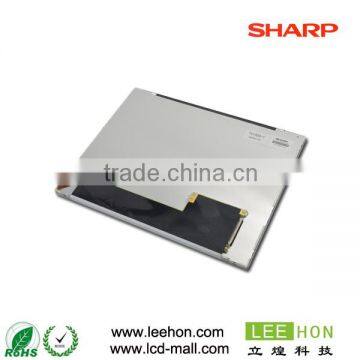

800x600 LQ121S1LG72 12.1'' TFT LCD panel with cheap price
| 1) | Anti-glare surface |
| 2) | low price with stock |
| 3) | RoHS compliant |
| 4) | brand new, A grade |
| 5) | 100% Original guarantee |
| 6) | 12 months of warranty |
| 7) | industrial LCD ,at least 3-5 years stable delivery |
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame
| Module | LQ121S1LG72 |
| Size | 12.1 inch |
| Resolution | 800x600 |
| Pixel pitch | 0.3075×0.3075 (mm) |
| Active area | 246 (H) x 184.5 (V) (mm) |
| View angle | R/L/U/D 80/80/60/80 (Deg) |
| Pixel configuration | R.G.B. Vertical Stripe |
| Signal Interface | LVDS (1 ch, 8-bit) ,30pins |
| Brightness | 300(cd/m2) |
| Contrast ratio | 900:1 |
| Outline dimension | 265(H) x 205 (V) x 9.5 (D) (mm) |
| Weight | 550g (Max.) |
| Backlight | LED |
| Response time | 30 (Tr+Td) (ms) |
| Operate temperature | -10-75 (°C) |
| Storage temperature | -20-75 (°C) |
| Operate humidity | 10-90 (%RH) |
Hangzhou LEEHON Technology is established in 2009, nearby beautiful Hangzhou West Lake. We are specialized in supplying clients with professional display solutions. now our products are sold to more than 20 countries, products including monochrome screen, color TFT LCD screen ( GD /Industrial grade, AV /car class, PID /General Application) and we can add other related products such as driver board, control board, cables, inverter and touch panel,open frame etc accessories for our customers.
If you have any question, please contact us
Attn:Susan Wang
Skype: leehon806
Tel: 0086-571-86684288
>>Quality ensurance
100% original and brand new, no fake panels exists !
12 months of warranty !
You can enjoy the real panels directly from original factory;
>>Packing ensurance
Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number!
>>Delivery ensurance
We have international logistic center in HK, Shanghai and Shenzhen, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
We have professional support team to provide effective service, we are young and full of passion!
More products' info, welcome to visit our website: !
